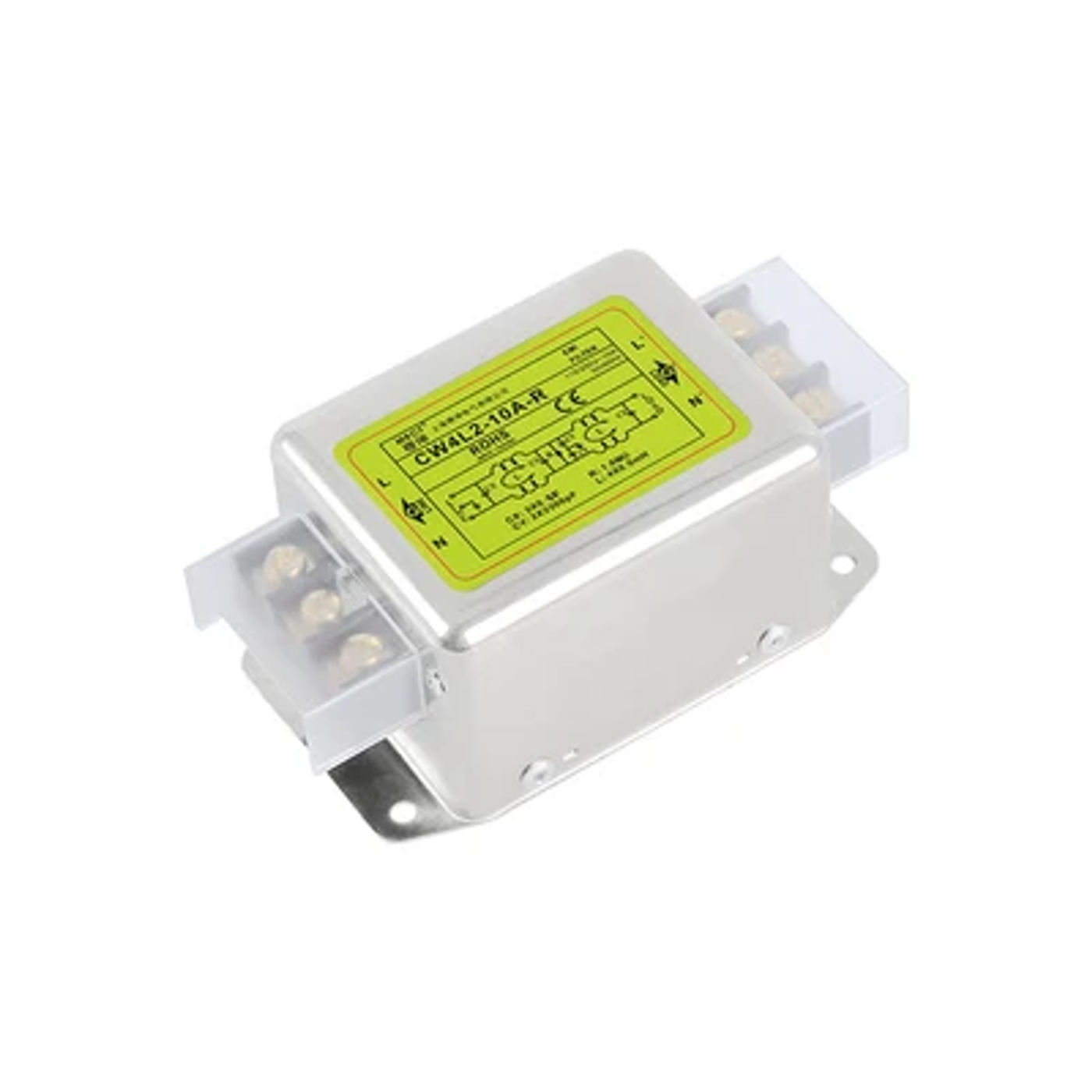

• Terminal Connection Single-Phase High Performance Series Features and advantages Compact size,fast and simple chassis mounting Various terminal connection kinds Good performed attenuation performance,surge pilse protection and radio frequency interference suppression is gift Typical applications Electrical and electronic package Medical and household package Automation,datacom and digital information processing kit Technical specs Maximum continual operating voltage: 250VAC Operating frequency: 50/60Hz Rated currents: 10A-30A@40°Max High prospective test voltage(1 min): Line to Line 1500VDC/Line to Ground 1500VAC Operation and garage temperature range: -25°~+85°(25/085/21) * The suffix ”R” represents Terminal Connection ** Maximum leakage below usual working conditions,note:if the impartial line is interrupted, worst case leakage may reach two times this level Electrical schematics Typical filter attenuation Per CISPR 17/50Ω system [——Common mode;-----Differential mode ] Dimensions [All dimensions in mm] Connections Style “R”

•
•
•
•
