2G-2 1 FPV VTX VRX 8CH FPV Video Transmitter Receiver Module PAL/NTSC For Fatshark Skyzone FPV Goggles

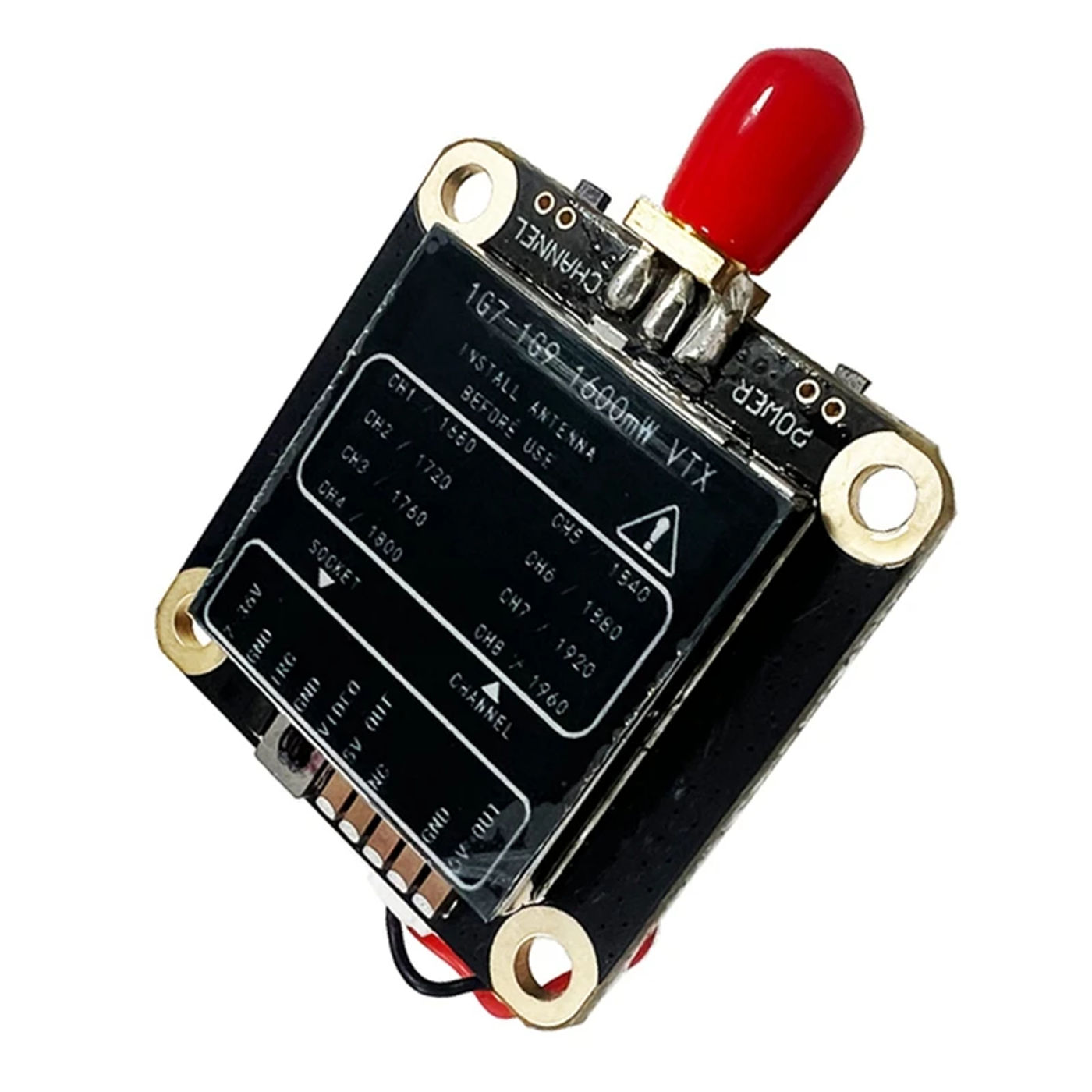

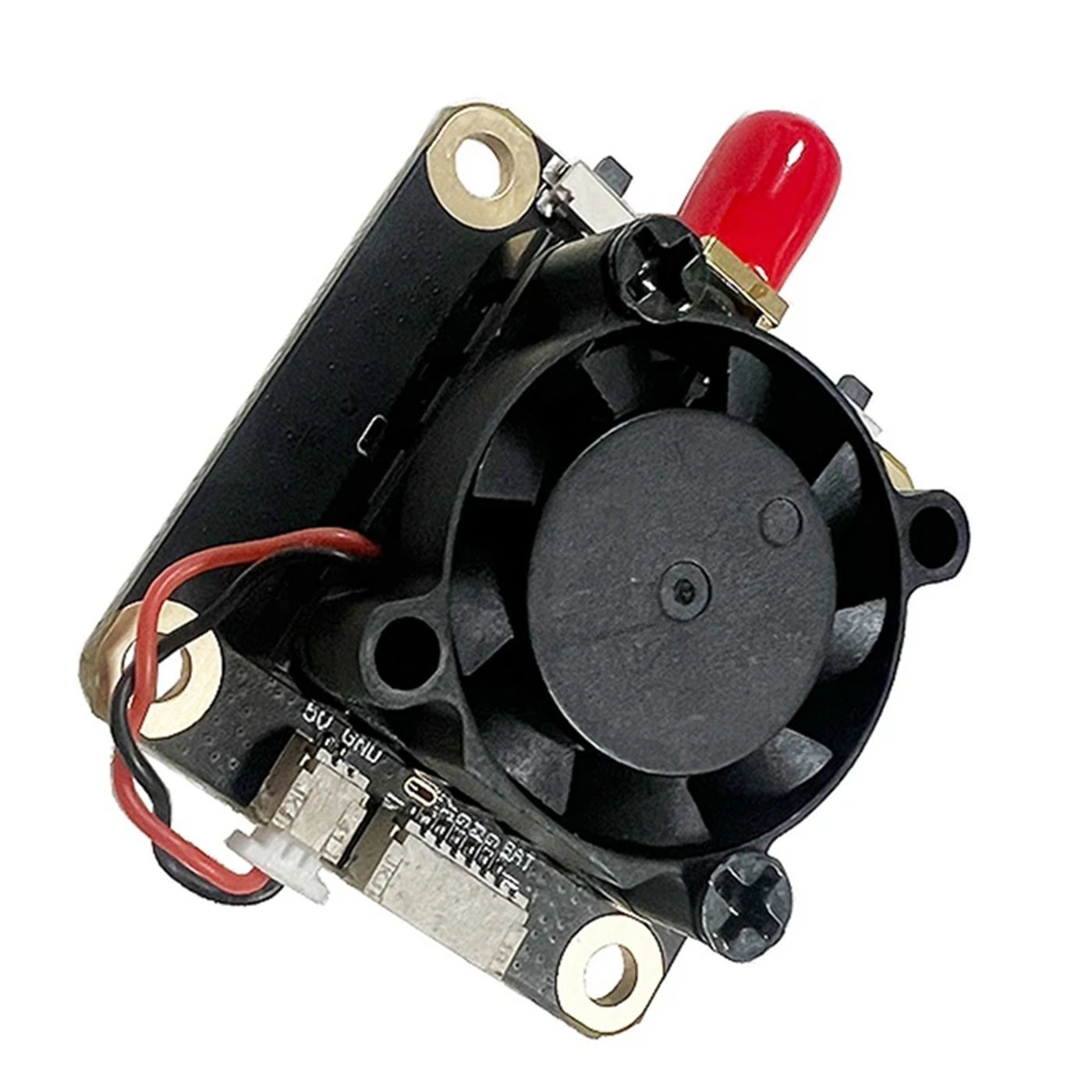

VTX feature: Channel 8CH;Control protocol IRC Tramp,supports OSD parameter adjustment; power: PIT 25mW, 200mW,1600mW;High efliciency DC/DC energy supply helps 7-36V;
Support 5V voltage output
Mounting hole: 305 x 305MM/M3 holes
Product parameter: Transmitter (sky side):Input voltage: 7-36V DC(2-6S)Output voltage: 5V/05A; Weight: 156g (without antenna); Dimensions (L W H): 37mm x 46mm x 175mm (including SMA and fan)
Video system: PAL/NTSC
Number of channels: 8 channels
Channel selection: short press to change frequency
Transmission frequency: 8CH, see frequency desk for details
Transmitting power: 33dBm±1dBm(MAX)
Power adjustment: energy adjustment button, brief press swap
Power number: fourth gear, 25mW, 200mW, 1600mW;
Antenna interface: SMA
Modulation type: FM
VRX Key Features
Channel 8CH;
Support FatShark,Skyzone and other glasses VR headset show in line with analog show Device and other connection use;
High sensitivity reception -97dBm;
I ligh performance DC/DC power delivery help 7-36V;
Support 5V voltage output;
Press the swap to soon swap channels;
Product parameter
Receiver (ground end):
Input voltage: 7-36V DC(2-6S)
Oulput vollage: 5V/05A
Video system: PAL/NTSC
Number of channels: eight channels
Channel selection: Tap to modify frequency
Receiving Irequency: 2000-2280MHz
sensitivity: -97dBm(MAX)
Antenna interface: SMA
Modulation type: FM
Due to assorted batches, there may be differences in product appearance, color, and printed text, that will not impact the use
Colour:random colour , don't settle for the desired coloration
Material:PCB

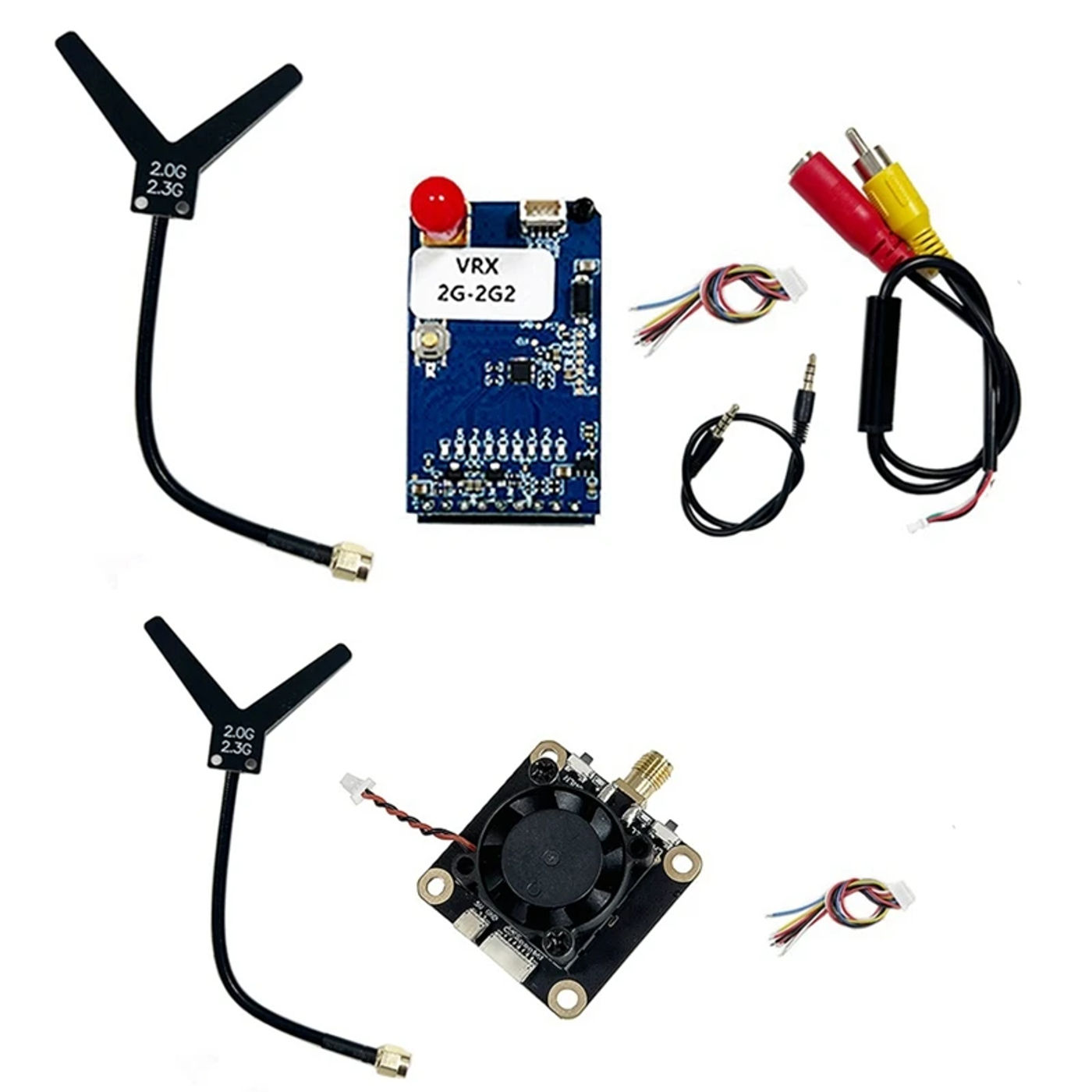

Package Contents:
1 x VTX KIT
1 x VRX KIT
Only the above equipment content, other merchandise aren't included
Note: Light mirrored image and assorted exhibits could cause the colour of the thing in the picture somewhat different from the real factor The dimension allowed error is +/- 1-3cm
