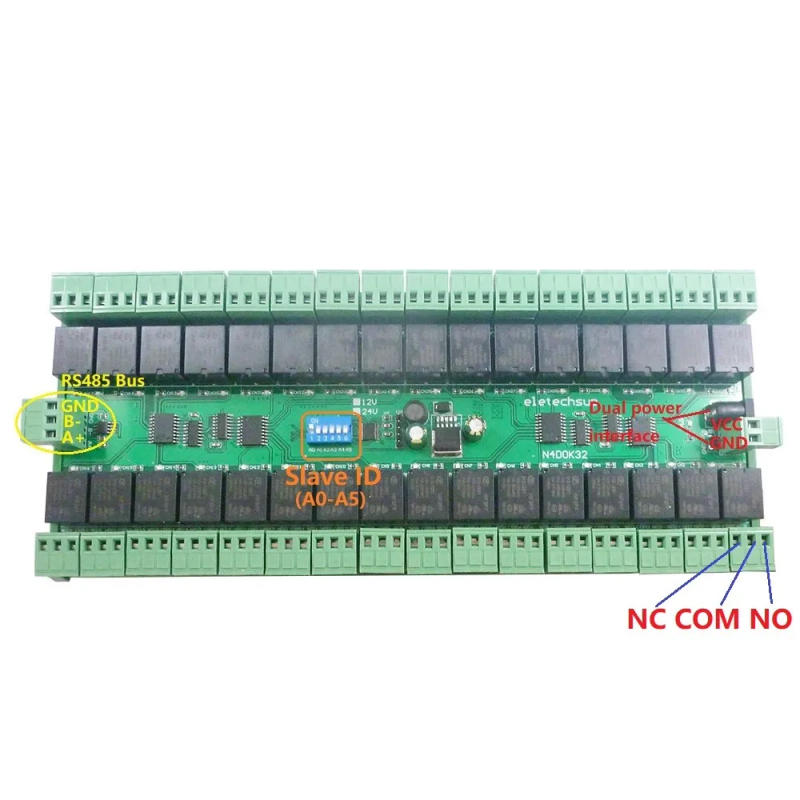

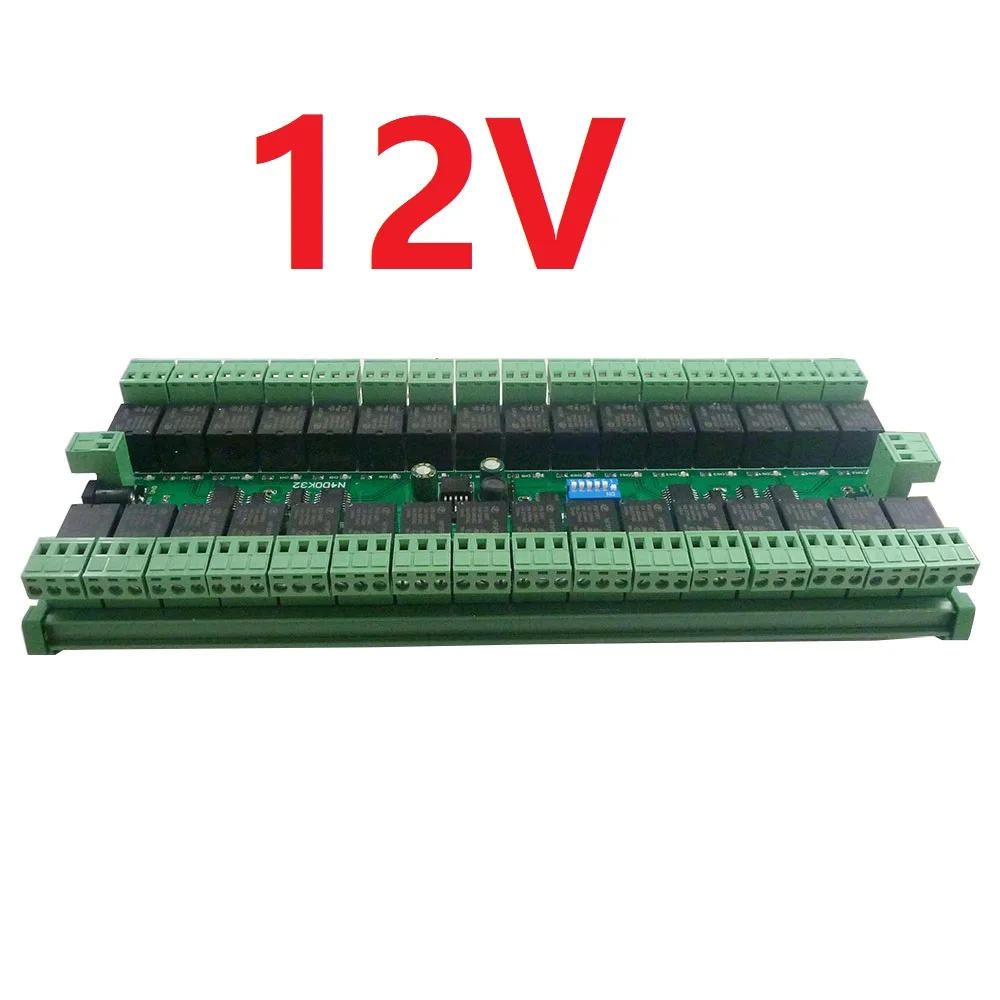

• Product Name: 32ch 03 06 sixteen MODBUS RTU DC 12V 24V RS485 SPDT Relay Board 485 Bus Remote Control Switch for LED Motor PLC PTZ Camera Smart Package inlcuded: 1 x DC 12V/24V 10A 32 Channels Rail RS485 Modb us RTU SPDT Relay Module Description: 1: 12V (12V version)/24V (24V version) 2: Standby current (all relays closed) 8MA, all 32 relay open 1 3: &;&;Open&;&; &;&;Close&;&; &;&;Momentary&;&; &;&;Self-locking&;&; &;&;Interlock&;&; &;&;Delay&;&; 6 Commands 4: Support 03 06 16 MODBUS RTU operate code five The default baud rate is 9600BPS, which might be configured to help 1200 2400 4800 19200 baud rates 6 Support 1 register operation 16 channels 7: Under the &;&;Delay&;&; command ,the most put off is 255 seconds 8 MODBUS commands could be made serial HyperTerminal (serial assistant) OR &;&;Modbus Poll&;&; Enter; nine Under the MODBUS command mode, it's going to help up to 64 devices in parallel 10 Size: 269 * a hundred and fifteen * 48mm 11 Weight: 735grams 12 Maximum load: 10A / 250VAC, 12A / 125VAC DIN rail Box parameters(DIN Rail Box Version): Product model: UM100 Color: inexperienced Width: suitable for PCB board width UM100(100mm) Insulation grade: flame-retardant VO grade Backplane length: compatible for 226 mm PCB boards Net weight: 224g Installation: DIN35 and C45 rail For extra information, please touch me Application Automated industry PLC Smart Home,Home Automation ,Wiser Home; IP PTC Camera Security Monitoring Identification system; Motor FW & BW LED Home lights Door Lock PLC enlargement board diy digital Typical applications: MODBUS RTU command mode (HEX), you might control a wide range of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software management (software robotically add the CRC), PLC or MCU task control Wiring Diagram: 1 DC 12V/24V control circuit,Wiring diagram under &;&;LOAD&;&; could also be camera,LED lights, fans, motors and other DC 12V/24V kit 2 DC 1-110V OR AC 85-265V management circuit,Wiring diagram below(Note:If now not DC 12V/24V load, desire another DC 12V power supply) &;&;LOAD&;&; may be LED lights, fans, motors Lights, fluorescent lights, photo voltaic water heaters and other DC AC equipmen Test Software(We offer a demo video): Serial HyperTerminal: Modbus Poll

•
•
•
•
•
