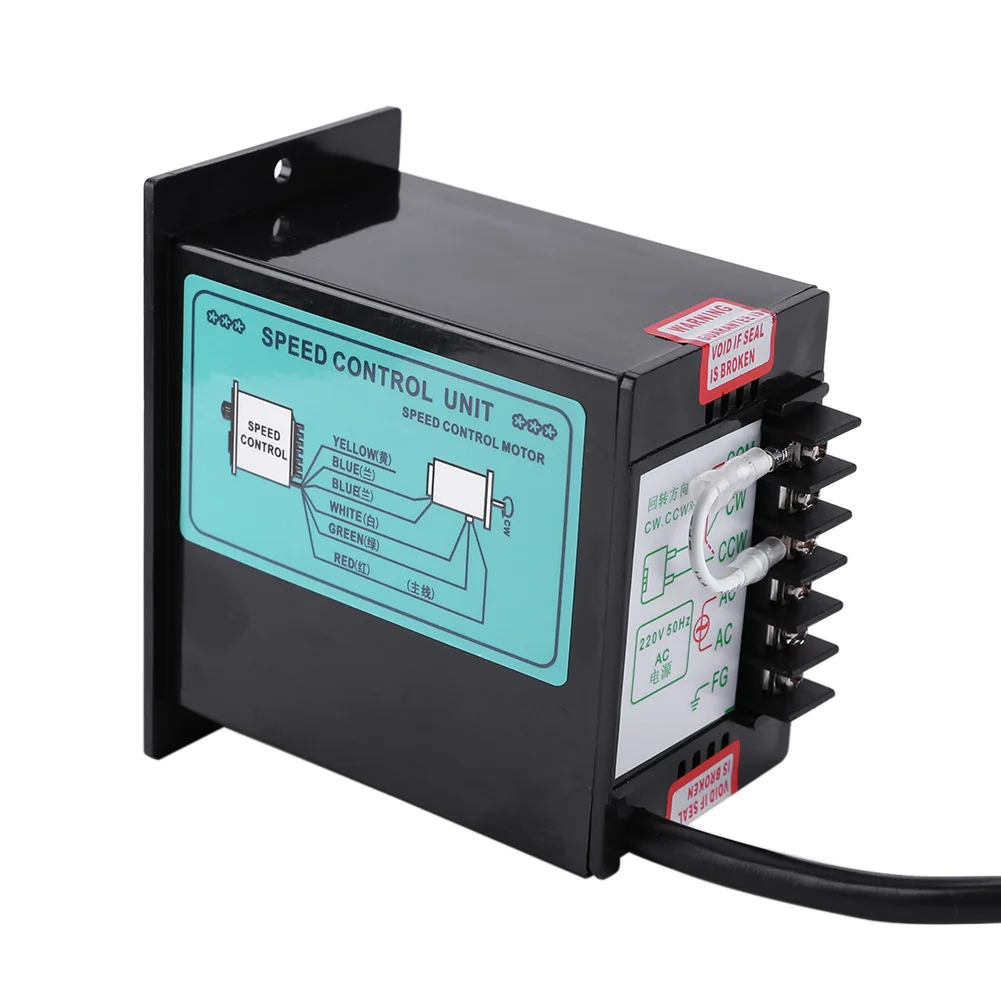

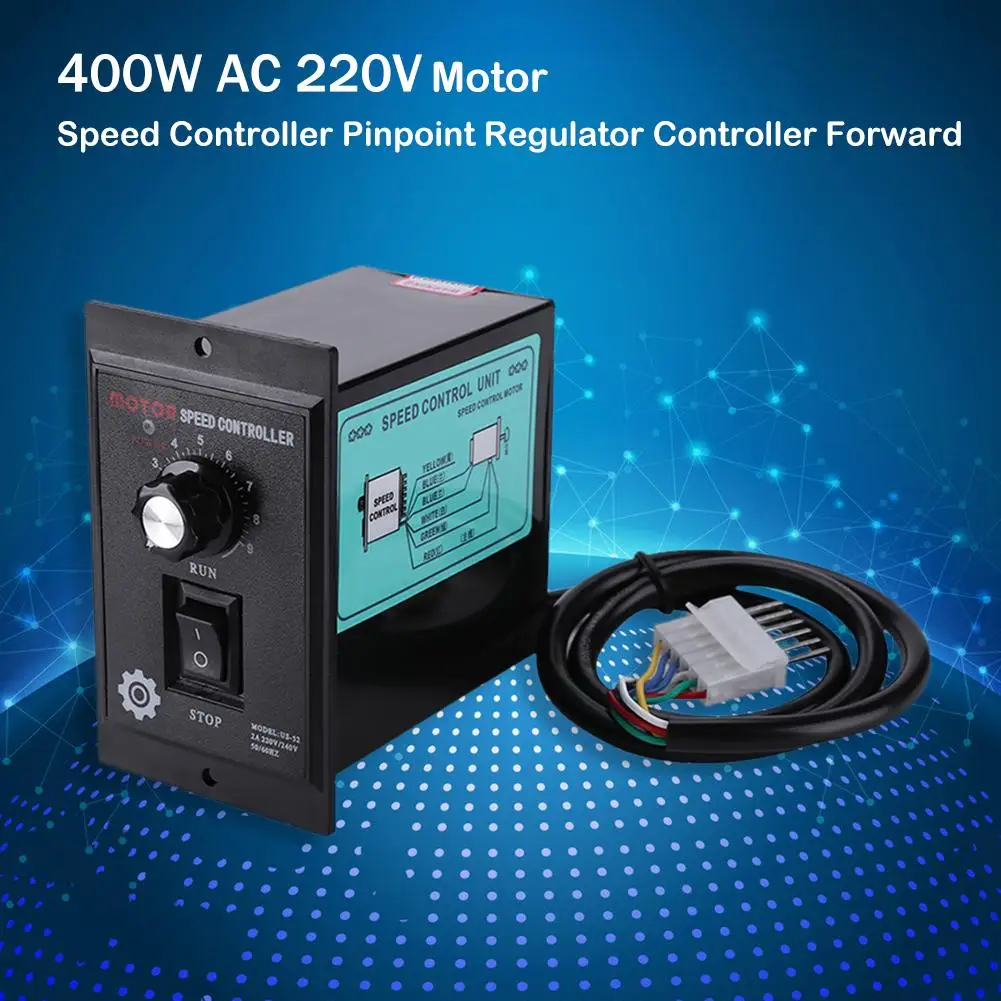

• 400W AC 220V Motor Speed Controller Pinpoint Regulator Controller Forward and Backward Product Description: The Speed Controller has 6 wires, the black twine is the major line of the motor, the pink and white are the capacitance auxiliary lines, and the two blue lines are the speed suggestions lines The inexperienced line is the ground cord Widely used in packaging, printing, food, electronics, instrumentation, medical equipment, clothes industry manufacturing line as velocity power machine Specifications: Parameters: Working energy supply: AC220V 50/60HZ, voltage fluctuation vary is wonderful or adverse 10%Ue; Rated power: 400W The use of our surroundings temperature: -10~+50℃ Relative humidity: less than 90% Speed range: 90-1400r/min 50HZ, 90-1700r/min 60HZ Dimension:10*8*5cm/3*3*1" Usage method: 1 Turn off the flexibility supply, hook up with the wiring diagram and ensure that the relationship is correct and do not adjust it arbitrarily 2 Fixed the controller nicely and set the speed to the bottom "0" with a purpose to keep away from the on the spot high latest and everlasting injury when beginning the power delivery three Then switch on the ability supply, regulate the speed knob to the specified position, and switch off the power when it is not essential 4 Adjust the fine-tuning potentiometer (speed setting adjustment) at the aspect of the product if the connection between the governor and the motor fails to meet the requirements of the rotation distance or speed 5 In order to alter the direction of motor operation, only the jumper of CCW and CW on the connection seat on the again of the controller is replaced Select COM and CW short, then the motor rotates clockwise Select COM and CCW short, then the motor rotates counterclockwise 6 The action swap solely controls the motor to function or stop, and would not interrupt the flexibility delivery If it is not used for an extended time, please flip off the ability delivery When changing direction, the motor ought to be stopped after the motor is totally stopped Notes: 1 Due to different display screen and light-weight effect, the actual colour of the item is probably slightly assorted from the color showed at the images Thank you! 2 Please allow slight measuring deviation because of handbook size 1 X Motor Speed Controller

•
•
•
•
•
