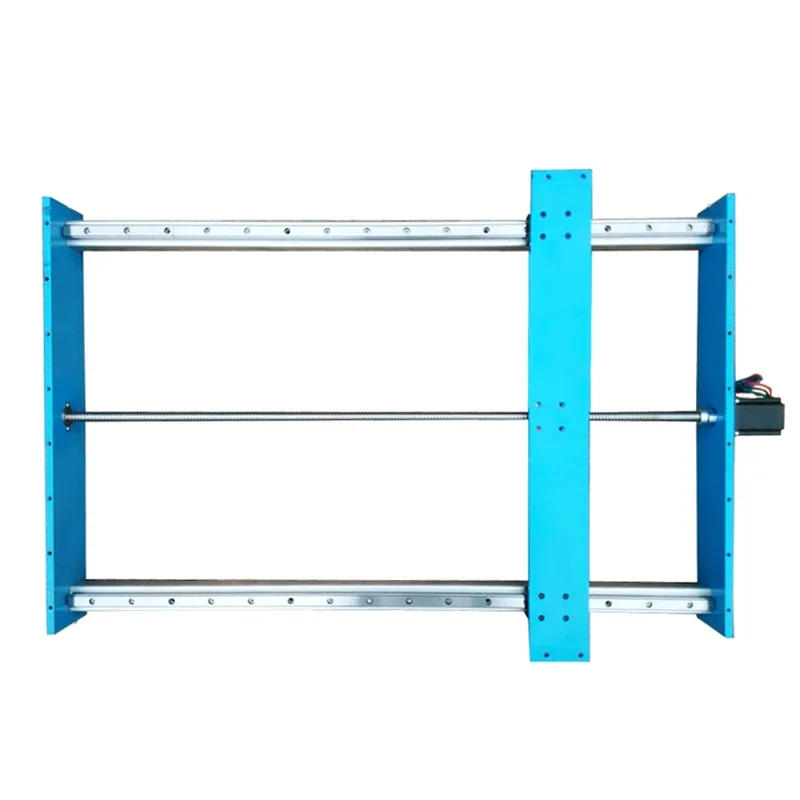

• Automatic 6040L-2.2KW 1.5KW Linear Guide Rail 3Axis 4 Axis Router Engraving Drilling and Milling Machine LPT/USB PortIntroductionThe 6040 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. The router is designed for giant subject engraving work comparable to Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at workplace or home. Linear Guide Rail, MorePrecise on moving. The engraving job is seen as controlled by laptop Simple operation and installationWarranty 1 12 months full guarantee straight from factoryShipping •By DHL & UPS & FEDEX with tracking number, desire 5~10 days;•By SEA , desire 40~50 days;•Please email us your telephone quantity after you pay for the article only for shipping purpose.Technical Parameters MODEL 6040L-2.2KW Machine Dimensions: 830 *620 * 600mm Rack material: 45# metal (14mm and 12mm) Table size 460 * 720mm (20mm aluminum alloy T table) Engraving area: 360 *570mm Z-Axis Stroke: 120mm, Engraving depth depends upon the size of the device edge Acceptable materials thickness: 140mm Rail type: Linear guide rail TRH20(more exact moving) Type of screw: Taiwan TBI Ball screw 1605 Spindle motor: 2.2KW VFD water cooling spindle ,0-24000r/min Collet type: ER20,1/8"(3.175mm) and 6mm Collet Stepper motor and drive: two-phase 57/3A Maximum operating speed: 4000mm/min (Engraving velocity :300-3000mm/min) Repeat positioning Accuracy: 0.03mm Communication interface: Parallel port or USB port Toolauto-checking yes Software Compatability: Mach3 (Type3,Wentai, ArtCAM,coppercam) Command code: G code/.nc/.ncc/.tab/.txt Machine weight: 138kg RotationAxis (4th Axis)Description: Chuck Size: 80mm self-centering chuckCenter height: H = 71mmClamping diameter: 80mm or lessDeceleration mode: Gear boxDeceleration ratio: 20:1Stepper motor: fifty seven step motor recent 3APositioning accuracy: 0.075 ° MODEL 6040L-1.5KW 3axis Machine Dimensions: 830 *620 * 600mm Rack material: 45# metal (14mm and 12mm) Table size 460 * 720mm (20mm aluminum alloy T table) Engraving area: 360 *570mm Z-Axis Stroke: 120mm, Engraving depth will depend on the size of the device edge Acceptable materials thickness: 140mm Rail type: Linear instruction manual rail TRH20(more precise moving) Type of screw: Taiwan TBI Ball screw 1605 Spindle motor: 1.5KW VFD water cooling spindle ,0-24000r/min Collet type: ER11,1/8"(3.175mm) and 6mm Collet Stepper motor and drive: two-phase 57/3A Maximum operating speed: 4000mm/min (Engraving velocity :300-3000mm/min) Repeat positioning Accuracy: 0.03mm Communication interface: Parallel port or USB port Toolauto-checking yes Software Compatability: Mach3 (Type3,Wentai, ArtCAM,coppercam) Command code: G code/.nc/.ncc/.tab/.txt Machine weight: 130kg Rotation Axis (4th Axis)Can upload 4th axis ---- Note:This machine have other spindle, For example 800W and 2.2KW; But the worth could also be different;If you would like other spindle ,please message us or touch us, thank you very much;

•
•
•
•
•
