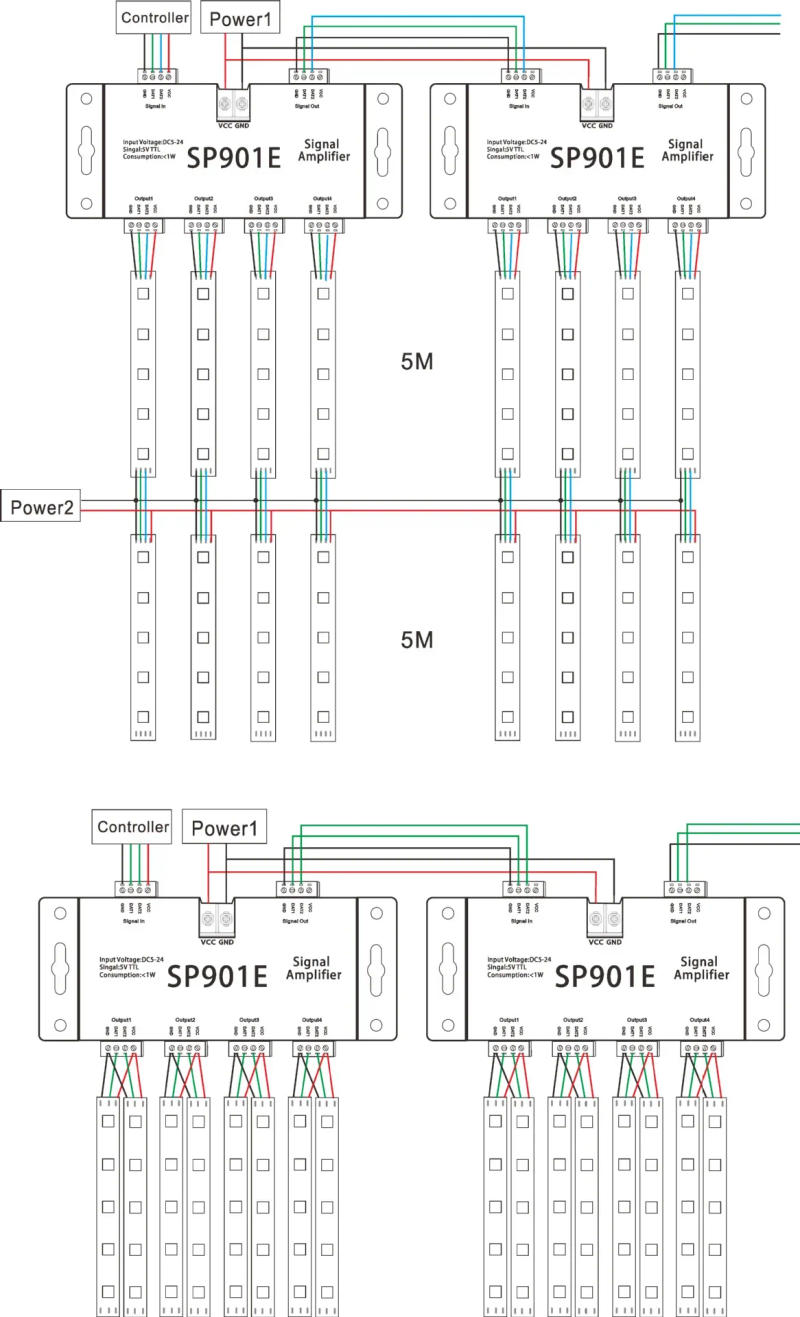

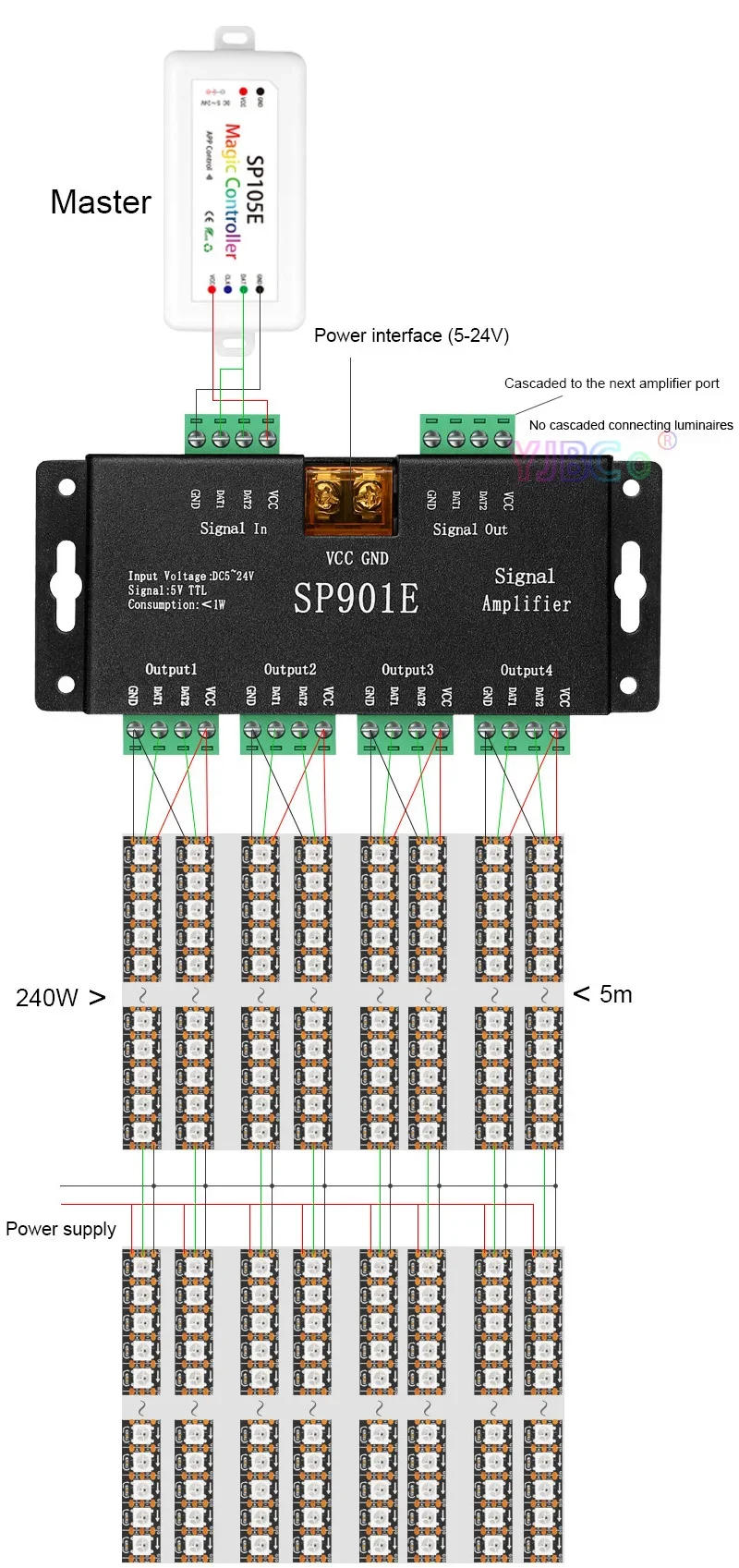

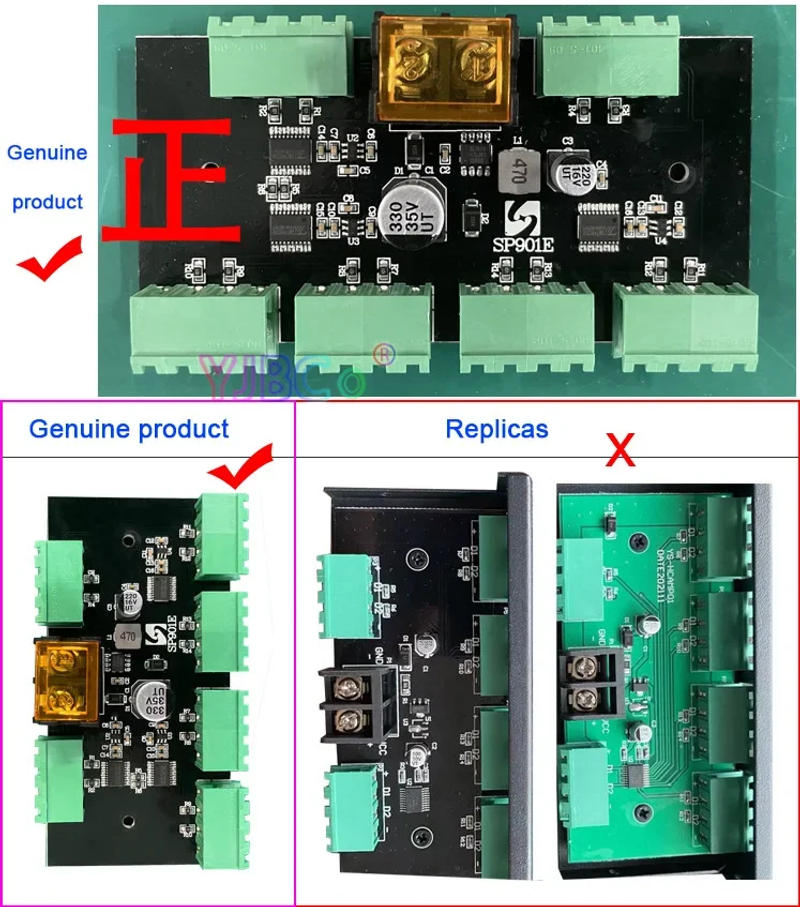

• Specification: Product model : SP901E Control space: with the most important management (the main leadership is 1024 pixels, then each channel output of SP901E is 1024 pixels) Control mode: master management all controls Built-in sample : none Output signal: keep on with the grasp Outlet mode: one-line IC output 8 channels / two-line output four channels Supported Signals: TTL (SPI, Serial) Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822, UCS1903, LPD6803, LPD8806, APA102 Scope of use: Symphony LED light strip, mild string, point gentle supply Weight: 256g Size: 140mm x 73mm x 27mm Feature: SP901E SPI sign amplifier is well suited with all types of 5V-TTL signal. It receives one signal and simultaneously output four or 8 channels of signals. Each channel can control an identical quantity of LED pixels as leading controller. It can outputs 8 channels for addressable LED strips with single information wire, similar to WS2812B, WS2811, SK6812, SK6812-RGBW,SM16703, and so on It can outputs 4 channels for addressable LED strips with records clock wires or dual news wires, similar to WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,etc DC5V~24V wide array of working voltage, however it can not regulate the output voltage. That means the output voltage of energy delivery ought to be resembling the work voltage of your led lights. Multiple sign amplifiers would be cascaded together synchronously. Particularly appropriate for small and medium dream colour lighting fixtures projects. Precautions: (1) The controller can't alter the output voltage at the VCC. That capability the output voltage of your energy delivery needs to be the same as the work voltage of your led lights. If your lighting favor 5V input, please use a 5V energy supply, by no capacity use 12V or 24V strength supply. (2) The latest in the course of the amplifier is proscribed ,when the intake current is huge, visitor need to develop energy delivery additionally. Product Description: Signal Amplifier For Addressable LED Syn Signal : 5V TTl DIFF DAT Signal : 5V TTl Voltage:DC5-24V Rated Current : 10A Working temperature: -10 ~ 60°C Product Festures : 1. Compatible with both TTl and RS485 sign inputs; 2. Two channels of strong-drive TTL sign output to meet users' desires for a number of stable signal management of lighting: 3. Differential RS485 signal is used for cascading between amplifiers to achieve long-distance sign transmission; 4. Can be used by myself or in cascade with a number of units: 5. Supports huge voltage input from DC5 to 24V,with opposite connection protection function. Precautions: 1. The recent gone by the controller is limited the LED light fixtures demands a up to date that exceeds the limit,additional energy shipping is required to forestall overheating and injury to the amplifier; 2. The energy of the TTL signal output by means of means of the amplifier is expounded to the type of chip utilized in the related LED,the length and thickness of the connecting wires,and the variety of LED linked in parallel,Please use it inside an affordable differ in line with the particular situation; 3. The transmission distance between amplifiers is plagued by the type of cord used and the encompassing environment,If you should transmit alerts over a protracted distance or in a complex environment with a lot of interference,please use shielded twisted pair or CAT5 or larger Ethernet cables. Power : Power input port-- VCC is attached to the great terminal of the ability supply and GND is connected to the unfavourable terminal, It helps a wide voltage enter vary of DC5V-24V Syn sign : Cascading sign input and output port-- Compatible with either TTL and RS485 signal inputs "IN+/IN-": Cascading sign enter port (When connecting to the key controller,DAT of the major controller is connected to "IN+",and GND is connected to "IN-";When cascading with sub-amplifier,"OUT+"of the previous sub-amplifier is attached to "IN+" and "OUT-" is attached to "IN-") "OUT+/OUT-" : Cascading sign output port ("OUT+" and "OUT-" are respectively connected to "IN+" and "IN-" of a higher sub-amplifier) Expotr to LED : Port for connecting two units of LED VCC DAE GND : Signal output and power output for the LED Package includes:1 piece * SP901E orSP902ESignal Amplifier(As your choose)

•
•
•
•
•
