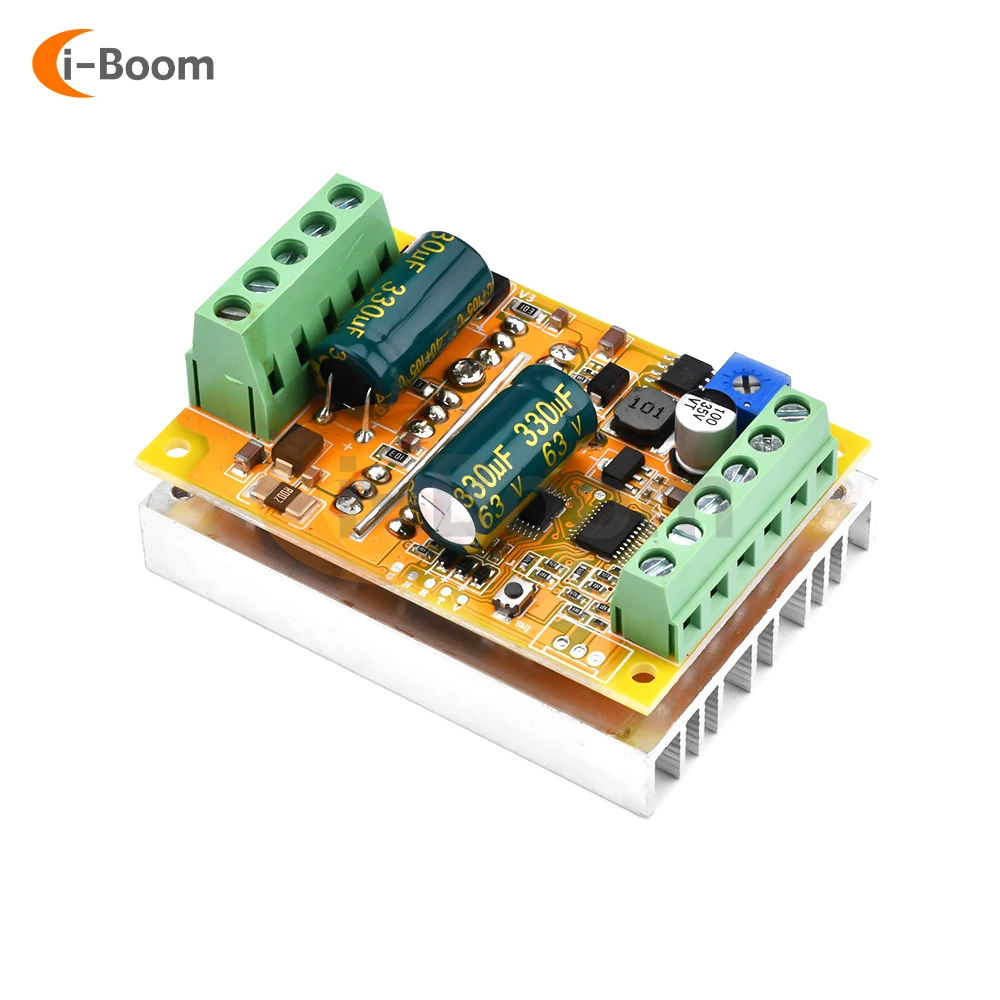

• Product Features: This motive force is a DC three-phase brushless hallless control board The motor can work usually without hall BLDC broad voltage 6 high energy 380W DC three-phase high-speed brushless non-inductive controller New PWM signal input, help 3 components PLC 0-5V tactile, sign enter control External sign enter particular instructions: 1/P quick connection is the PWM sign enter is efficacious in identifying the real PMW signal to support three system, you need to input the PMW signal from the two ports of the terminal (PWM GND) 2/P brief touch is disconnected is 0-5V mimic signal input effective (factory default disconnected), within the analog input, you can use the board comes with a potentiometer voltage divider speed control, if you wish to external 0-5V mimic signal input ought to be unplugged from the board jumper cap to chop off the potentiometer divider signal, and then from the terminal two ports (0-5 GND) to go into the 0-5V mimic signal, the voltage is most Do not exceed 5V 3 Forward and opposite and brake via a swap floor is low-level effective, can also be exterior MCU to the low-level signal, the entrance row of terminals, are weak electrical signals immediately into the MCU master control, can't touch and speak to with high voltage and powerful recent Interface description: 1 U V W 3-phase line output connected to the brushless motor 2 5V GND Main board comes with 5V (current does not exceed 200MA) 3 VCC GND mains energy delivery (external DC energy supply) 4 SC pace pulse signal output (only interface, no technical support) five DIR Forward and Reverse Control (can be switched to ground) 6 Brake Control (can be switched to ground) 6 PWM velocity control signal dual inputs (the board comes with potentiometer velocity management can also be switched in the course of the jumper exterior 0-5V contact the proposed quantity of PWM duty cycle sign input velocity control) All chip technology, stable performance, humanized design, interface with all terminals normal heat sink on-board speed potentiometer to the fingers of the power can be used to avoid wasting time and worry! Main board specs parameters: Product name: zs-x11f-2 Working voltage: 6 Driving current: rated 16A plus air-cooled cooling 30A Maximum power: 380W Over-current protection: Yes Blocking protection: Yes (after blocking the current mechanically drops to hit the isolation operation) Over-temperature protection: Yes (over-temperature energy halved) Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor) Product size: L63MM*W45MM*H31MM Weight: 76g Attention: 1 Power supply at the motherboard energy supply effective and unfavourable polarity reversal will cause everlasting damage to a couple of the chips at the board (even if 1 moment can not) 2 In usual operation, the motor output has a sampling overcurrent protection, because of the module strength current are very huge Please do not short-circuit the module is not operating properly, but the short-circuit has the opportunity of burning line burst tube, the first wiring verify please use a small current and low voltage test, to be ok, and then throughout the high recent and excessive voltage, due to the bare board module for sale, pay attention to the insulation of wiring wires and forbidden to the touch the board elements of the strong voltage three Do now not hook up with the force module voltage, current, energy part would not tournament or far from the motor Product list: 1X driving force board

•
•
•
•
•
