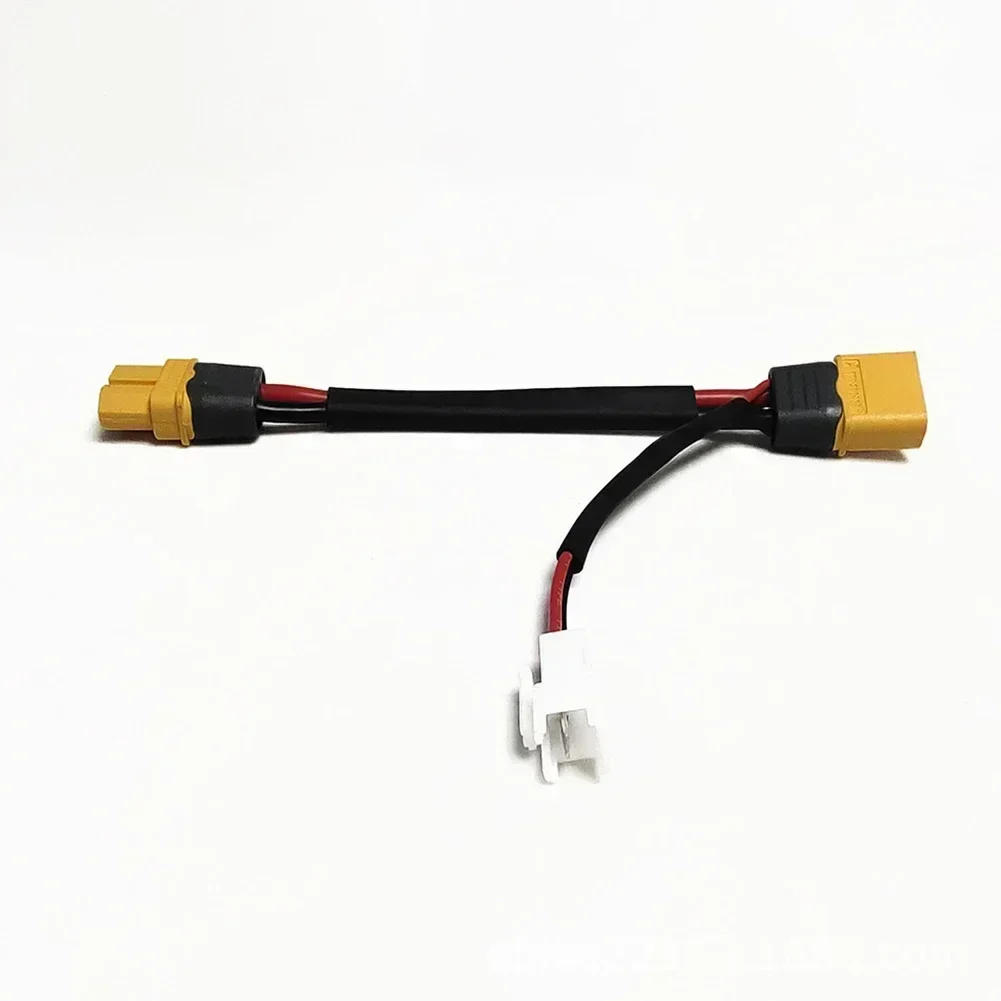

• Description: *Light Set Cable Connection Line for XT60 power Cable For E-bike Electric bicycle *Electric bicycle lamp set adapter cable for XT60 strength supply to headlight cable *the Light cable Support headlights, taillights, brake lights(low-voltage unfavorable brake), flip indicators *for XT60 male and female end extension cord+ headlight strength plug SM-2A, compatible for custom lamp group transformation *Simple and straightforward to use * brand new and wonderful *Made of wonderful material, and life like to apply Connection line parameters: Power Cable: Wire specification: 14AWG Plug model: Amass for XT60 Wire diameter and quantity: 400/0 Cross-sectional area: 2mm² Wire diameter: 1 Silicone overlaying thickness: zero Outer diameter of carried out product: 3 Conductor resistance: 15Ω/KM Maximum current: 55A Line length: 10CM 1T2 lamp wire plug: SM-2A white(red+/ black-GND) Light Line Parameters: Core cross-sectional area: 0² C1: SM-2A white(power supply battery 24-48V): Red: Power+ Black:-(GND) C2： SM-3A black(switch): Red: Power input+(24-48V) Yellow: Driving gentle output+ Brown: speaker output+ C3: SM-2A blue(rear light): Yellow: driving lights Black: GND for C4： SM-3Y black(switch): Yellow: using lighting fixtures Black: GND Brown: for Horn C5： SM-3Y green(power supply for brake lights): Red: power(battery) Black: GND C6/C7/C8/C9： SM-2Y& 2A black(low brake signal): White: GND Black: Brake signal(GND) Note: 1 The real coloration of the item could also be slightly diverse from the images shown on web content brought on by many points similar to brightness of your display screen and light-weight brightness 2 Please allow slight handbook measurement deviation for the data

•
•
•
•
•
