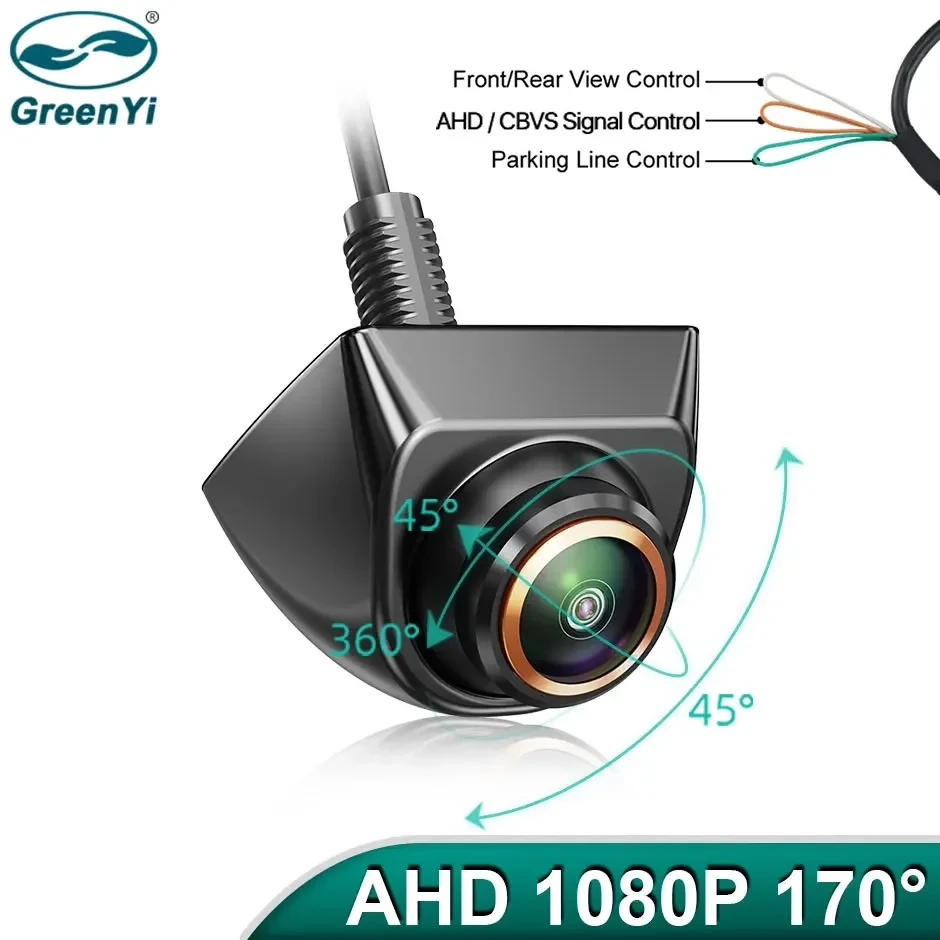

• New GreenYi AHD 1080P 360 Degree Adjustable Night Vision Fisheye Lens Car Reverse Backup Cam Front/Side/Rear View Camera AHD 1920x1080P Camera : * The HD Camera is 360 Degree rotation and 45 diploma UP/Down picture perspective adjustable it is going to clear up the issue of picture offset and image attitude deviation of the set up location Fit For Front /Rear/Left/Right Installation Location For Car it assist the other way up install * AHD 720P/1080P Car Parking Camera ---1920*1080P resolution, excessive clarity, IP68 waterproof, works properly below vehicle washing or unhealthy weather, high-quality Star evening vision impact * Real Fisheye 6 Glass Lens a hundred and seventy degrees huge viewing angle, no fear about blind spot area, the Image automatic calibration function, stop round images, reversing more secure * Support AHD and CVBS Video Signal ---This car rear view camera can paintings with both AHD displays and AHD displays Its output video signal is AHD by way of default, if you would like it to connect to a CVBS monitor, please minimize the Brown cable at the camera and reconnect to power delivery Adjustable Angle : You can adjust the digital camera angle, also can rotate the camera (Use the inside corner wrench to loosen the screw) Waterproof : The digital camera is filled with water-resistant silicone, Effective chip protection, IP68-Rated for Use in Extreme Conditions 3 Control cord adjustable : White: Mirror control Brown: Signal control Green: Parking line swap Installation Diagram : Installation Steps: 1 Find a suitable perspective to mount the parking camera (Fit for Front/Rear/Left/Right), then secure the nuts and bolts in place 2 Connect the power wire to the backup gentle or brake Light or Left/Right signal gentle energy supply three Connect the 6m extension cable of the parking digicam to the pinnacle unit/other display screen of the automobile four Start the automobile and opposite equipment to test the digital camera five Reinstall the console/other computer screen AHD Camera Feature : Can clear up the issue of picture offset and picture perspective deviation of the set up location Image automated calibration function, forestall spherical images, reversing safer * The Camera is 360 Degree rotation and 45 diploma UP/Down image perspective adjustable it'll solve the difficulty of picture offset and image angle deviation of the set up location Fit For Front /Rear/Left/Right Installation Location For Car it assist upside down set up * Chips elements : AHD Sony/OV2053HD Support Front Rear Mirror Image Control * Viewing angle: Fisheye 6 glass lens Real a hundred and seventy levels viewing angle, no worry about blind spot area, IP68 waterproof * Effective pixels : AHD 1280*720P/1920*1080P , CVBS 1280*720P * Signal format: NTSC / PAL * Image resolution: 200W Pixels * Video output: AHD Video Signal or CVBS Signal * Night Vision: Starlight Night Vision The visible distance is bigger than 10 meters * Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation * Lens : 14/16MM Fisheye 6 glass Lens * Low illumination: 0 * Signal to noise ratio: ≥69dB * Working power supply: DC12V~24V/2A * Working temperature: -45 °C ~ +70°C * Maximum power: 3W Package includes: 1 GreenYi vehicle camera 2 Retail field 3 Power cable four Pure copper 6m video cable 5 User handbook NOTE: * Please test the backup camera before routing video cable from again to front * If your head unit doesn't have reversing set off wire, then little need to apply the set off wires at the video cable * Some cheap Android head units can also have the atmosphere for AHD 1080P video signal , but they cannot demonstrate any AHD image, as a result of they do not assist AHD at all If so, you then can only practice CVBS video signal, hope you realize * If you connect GreenYi backup digicam to a FACTORY RADIO, please order a suited Harness & Programmer separately, because diversified RADIO wishes varied Harness & Programmer * There is a red coloration twine on your head unit usually, please connect it with the 6M video cable's triggering cord * If the picture at the display is blurry, flickering or has horizontal/vertical strips, please examine all your strength and video connections Try to use a different ground point(iron part) and wrap energy and video plugs with electrical tape to insulate from interference If still a similar problem, please order a 12V DC power adapter filter out rectifier to unravel it, especially obligatory for Ford VW AUDI BMW Mercedes Benz cars * Before you routing, if there's no image on the screen, apart from examine the camera, please examine demonstrate environment to boot You can use other gadget with RCA connector, similar to TV to ascertain if the camera works

•
•
•
•
•
