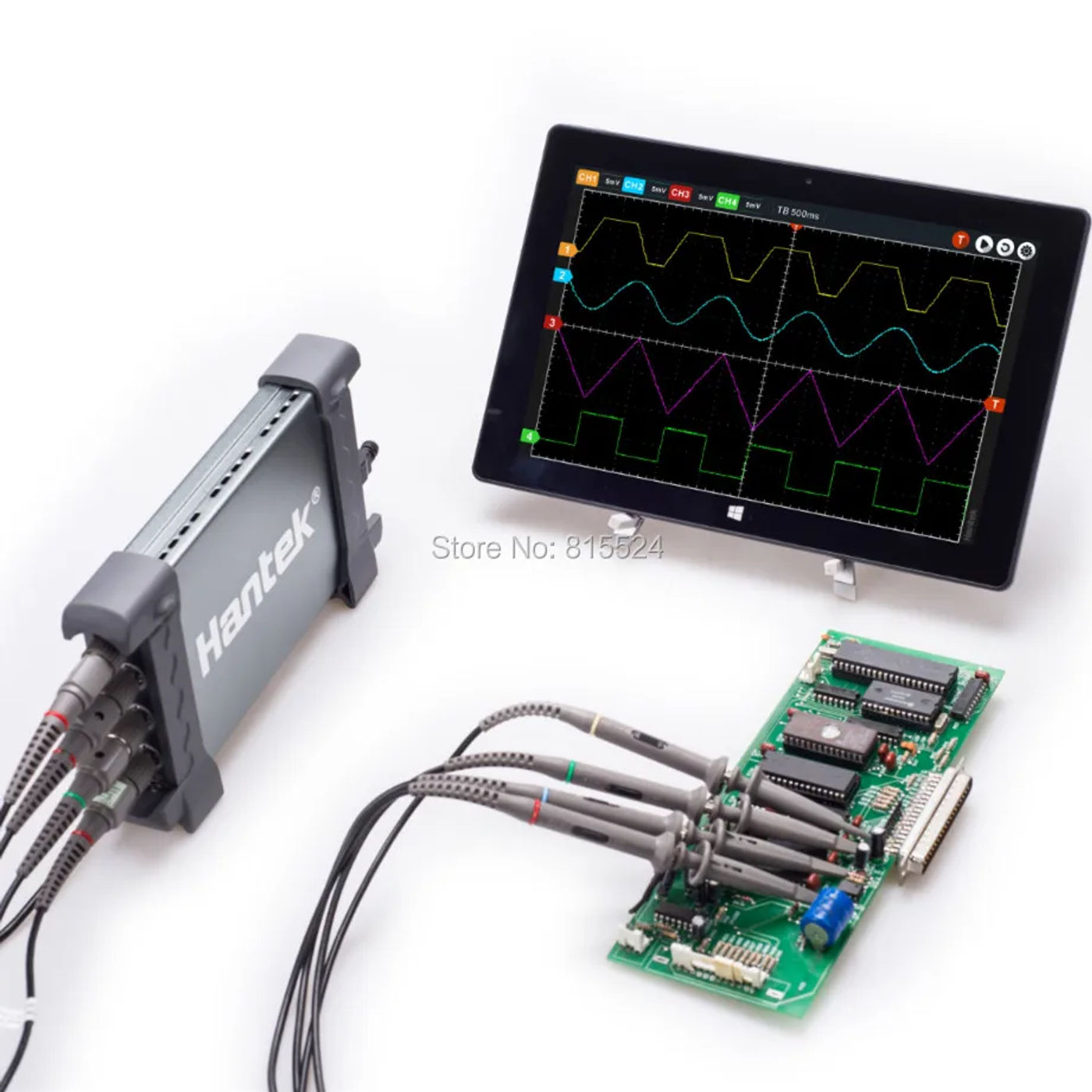

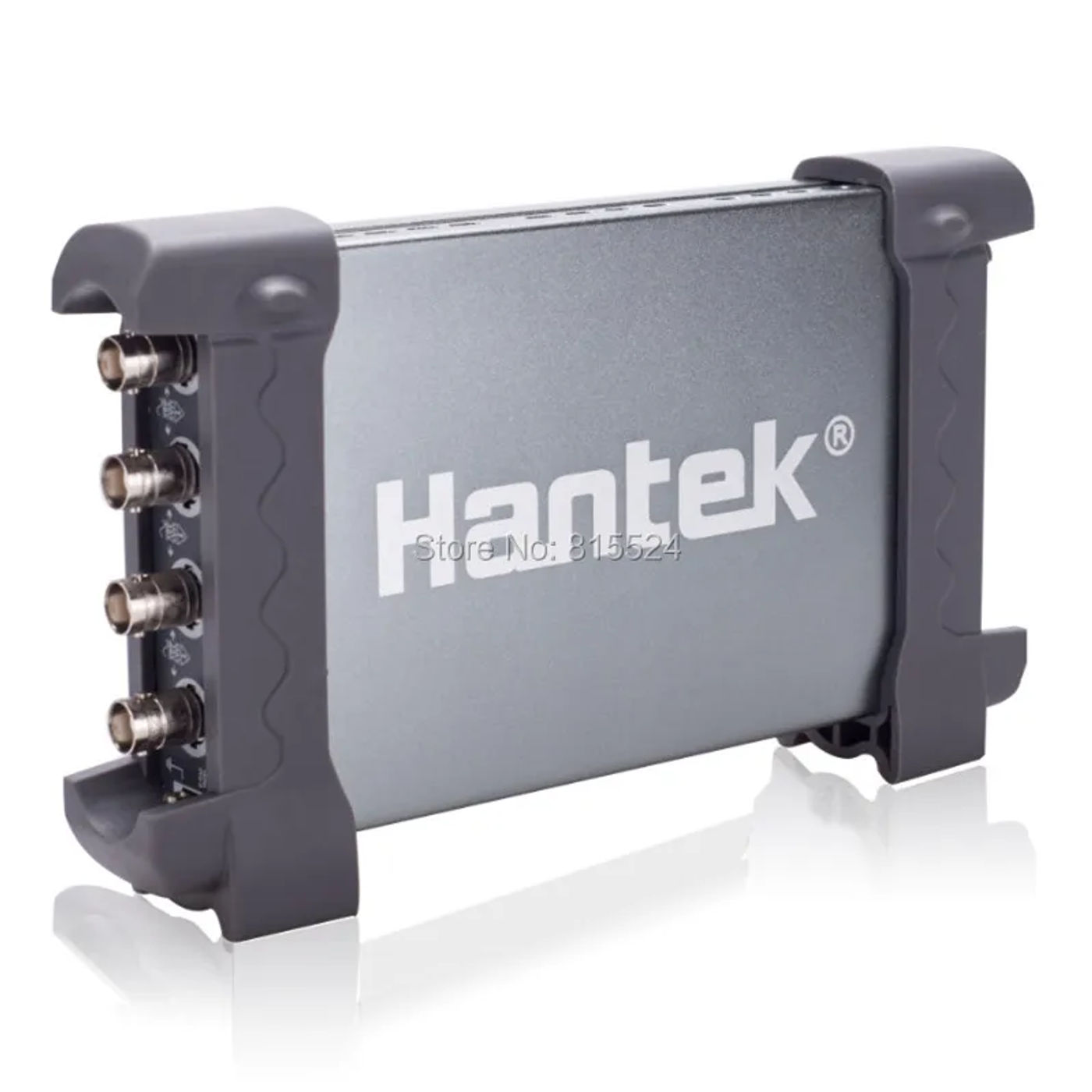

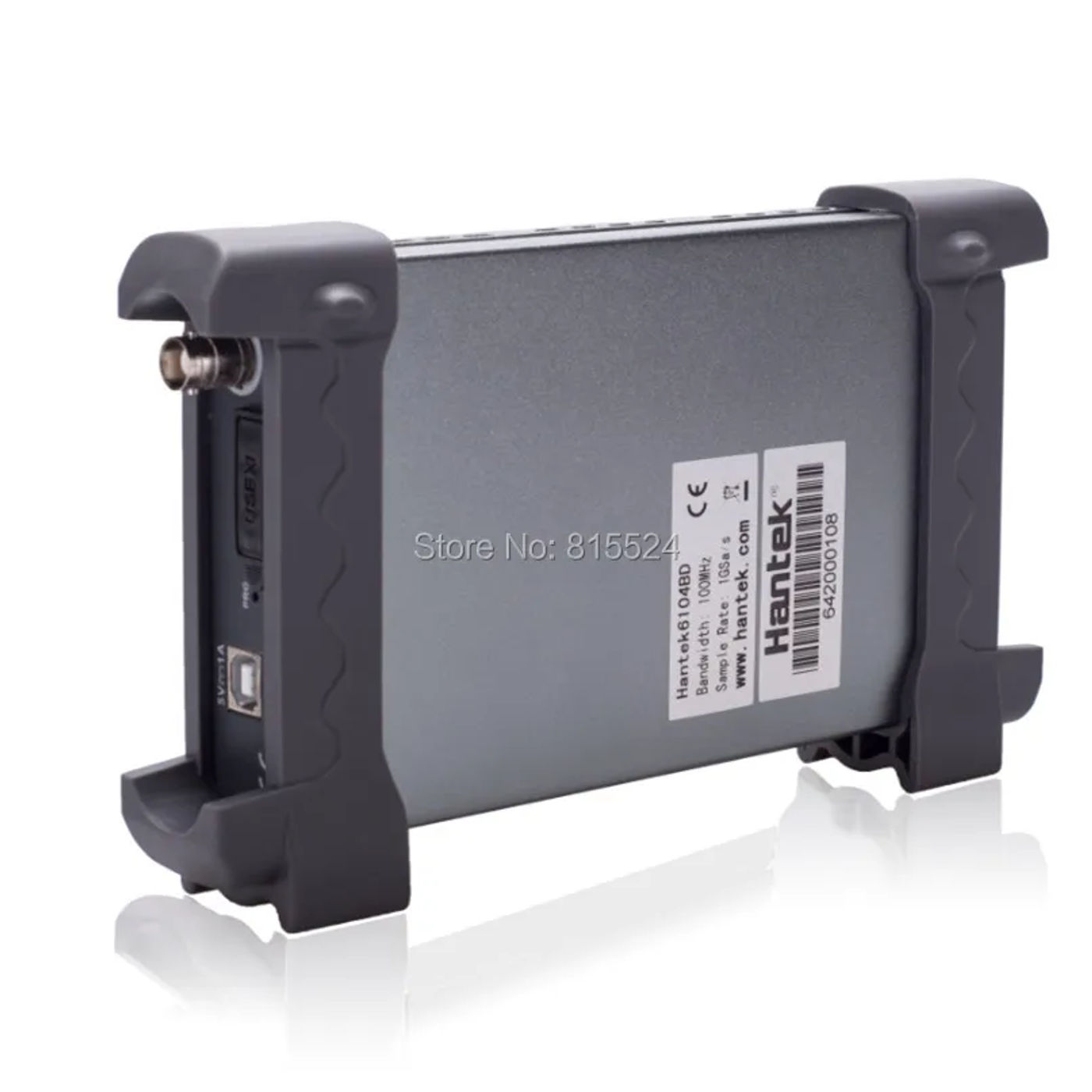

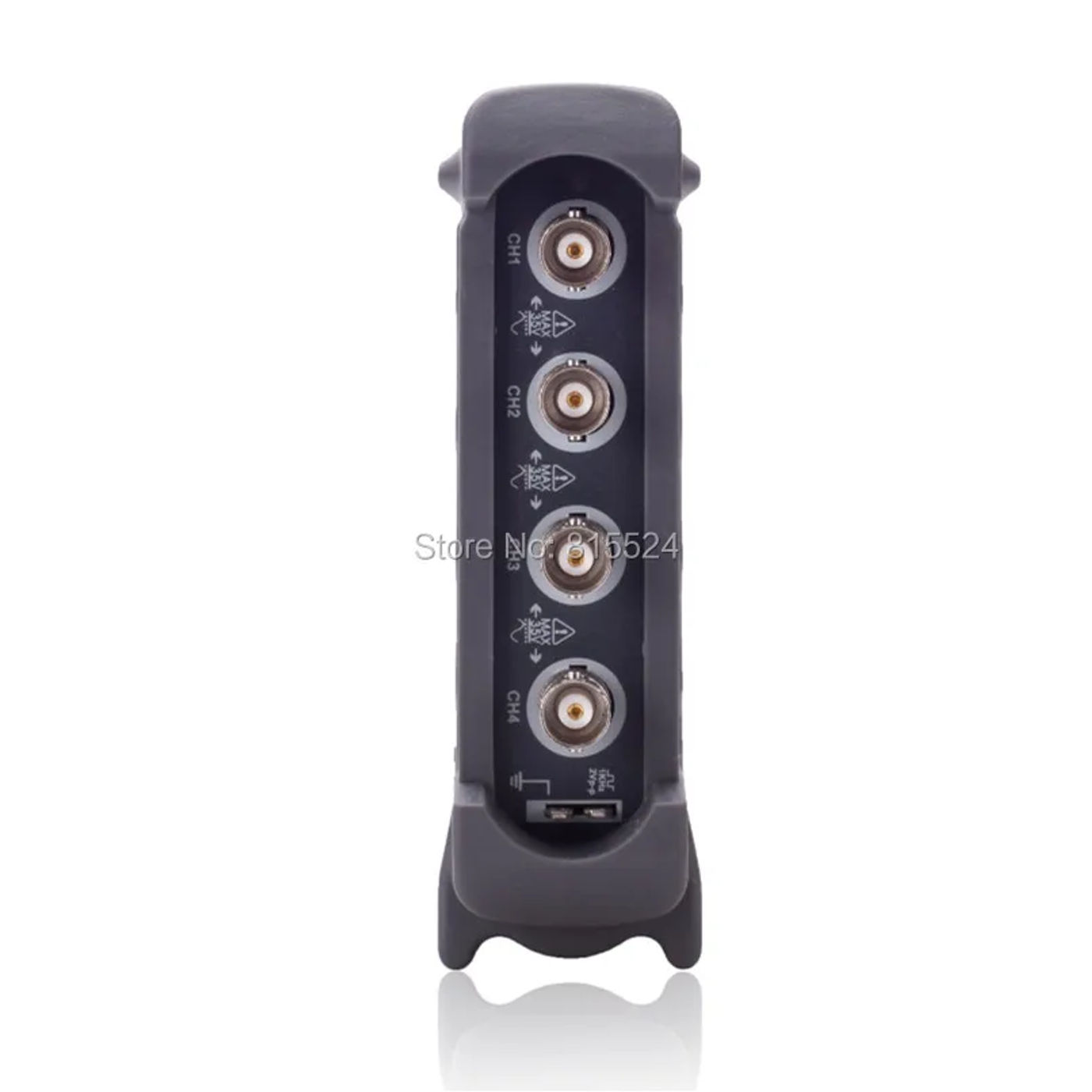

• Hantek 6254BE Digital Storage Oscilloscope four Channels 250Mhz Bandwidth Automotive Oscilloscopes USB PC Osciloscopio Features: Standard geared up of automotive dimension function; First Diagnosis: Intake manifold vacuum & ignition,Petrol fumes adjusting valve vacuum & ignition,Idle exhaust ignition, Starting exhaust ignition Ignition: essential and secondary Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle role Bus Diagnosis: CAN bus data examine, CAN bus sign integrity, CAN bus LH very long time acquisition, LIN bus Performer: Petrol/Diesel Starter and charging circuits Fit for the moveable computers, desk PC, and compatible for wild cellular use and work trip use Support WIN10/ WIN8/WIN7 and so forth USB 2 interface plug and play, and no use extra energy supply; Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check operate Resourceful trigger function, dynamic cursor tracking, waveform listing and replay function Good mechanical design with small size which is simple for wearing The outer case is made through the same material with iPad - Anodised aluminium It has large warmth resistance and abrasive resistance with beautiful look The hardness of aluminium alloy surface is vastly improved 4 remoted channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV high enter sensitivity and large input range, 70MHz high bandwidth, The waveform data can be output to EXCEL,BMP,JPG Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display FFT spectrum analyzer One computer may possibly hook up with a number of oscilloscopes, broaden the channel quantity easily Provide secondary advancement library DLL; Provide Labview\VB\VC\QT constructing examples Specification: Model Hantek6254BE Bandwidth 250MHz Channel 4 CH Real-time Sampling Rate 1GSa/s Memory Depth 64K Time BasePrecision ±50ppm Time Base Range 2ns/div-1000s/div (1-2-4 sequences) Input Impedance 1MΩ 25pF Input Sensitivity 2mV/div~10V/div Vertical Resolution 8Bit Vertical Displacement Range 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe DC Gain Accuracy ±3% Bandwidth 20MHz Trigger Mode Edge, Pulse, Video, Alternative Trigger Source CH1, CH2, CH3,CH4 Waveform Signal Process +,-,x,÷,FFT, Invert Cursors Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Volume 175mm * 105mm * 25mm Weight zero

•
•
•
•
•
