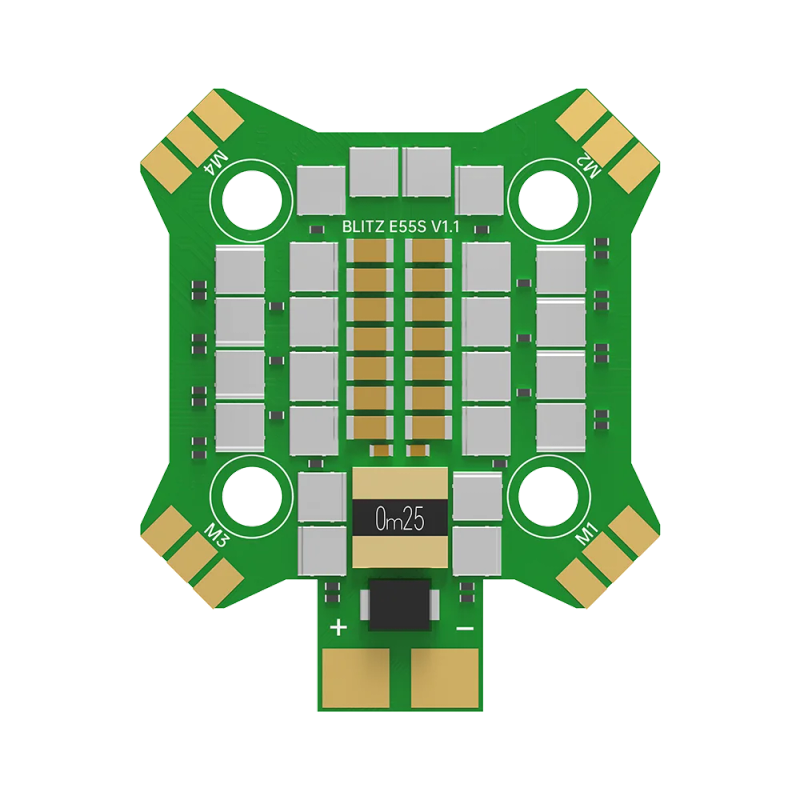

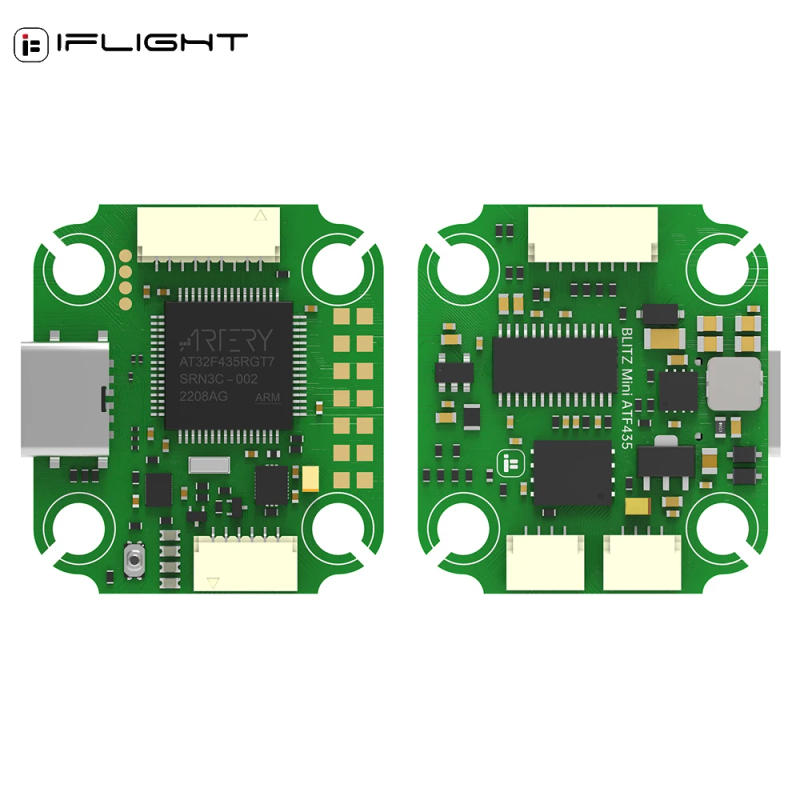

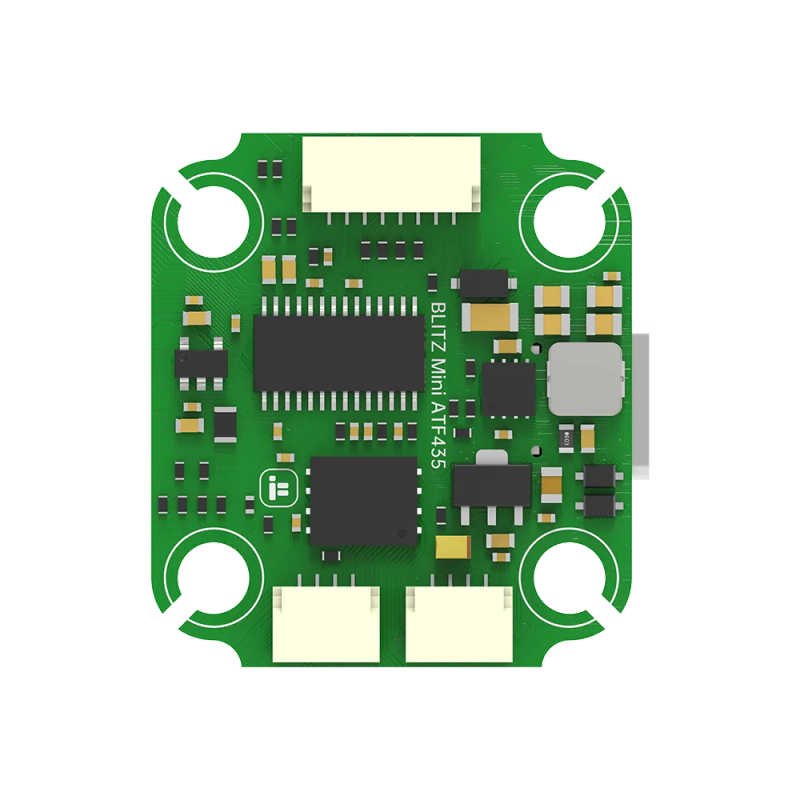

• IFlight BLITZ Mini ATF435 Flight Controller w/ Mini E55S 55A 2-6S 4-IN-1 ESC w/ SucceX-Force 5 600mW Adjustable VTX BLITZ Mini ATF435 Flight Control: -MCU: AT32F435RGT7 -Gyro: BMI270 -Barometer: DPS310 -OSD Chip: AT7456E -Flash: 16MB (Blackbox flash) -UARTS: 6 -Motor outputs: 4x (SH1 connector) -I2C serial: SDA / SLA pads -Smartaudio / IRC Tramp VTX protocol supported -LED controller: Yes -Beeper pad: Yes -Firmware target: IFLIGHT_BLITZ_ATF435 -Mount pattern: 20*20mm/φ4 -Dimensions: 30*27mm -Weight: 5g -BEC: 5V 2 BLITZ Mini E55S 4-IN-1 ESC: -Mounting Holes: 20*20mm/Φ4mm; -Weight: 11; -Supports 2-6S lipo input; -MCU: BB21; -Constant: 55Amps; -Burst: 65Amps; -Telemetry Output: No; -Current sensor: Yes; -Current rate: 300; -BEC: No; -Supports: DShot DShot150/300/600/MultiShot/ OneShot and so on -Target: Q-H-25 16(BlheliS) / Bluejay Q-H-50 (Bluejay) BLITZ Force 5 600mW Adjustable VTX: Small size yet massive power! The iFlight BLITZ Micro Force is the VTX you would like in your subsequent Micro build Small satisfactory to slot into smallest frames, but adequate energy to get some signal through a few of those dense timber Switchable from 25mW up to 600mW with ideally suited Power output stability PIT mode also permits you to energy up your quad with pilots close by with out stomping on their frequency Specifications -Power: PIT/25/200/400mW/600mW -Antenna interface: MMCX -VTX protocol : IRC Tramp -Output 40 channels -Size: 29*29mm -Mounting pattern: 20*20Φ3/25*25 mmΦ2 -Weight: 4g Tips VTX is determined to 25mW by way of default! Power levels above 25mW require a HAM license or should be approved by way of local authorities! Please make certain you&;re flying authorized frequencies and use our willing Betaflight VTX tables in keeping with your region

•
•
•
•
•
