Description

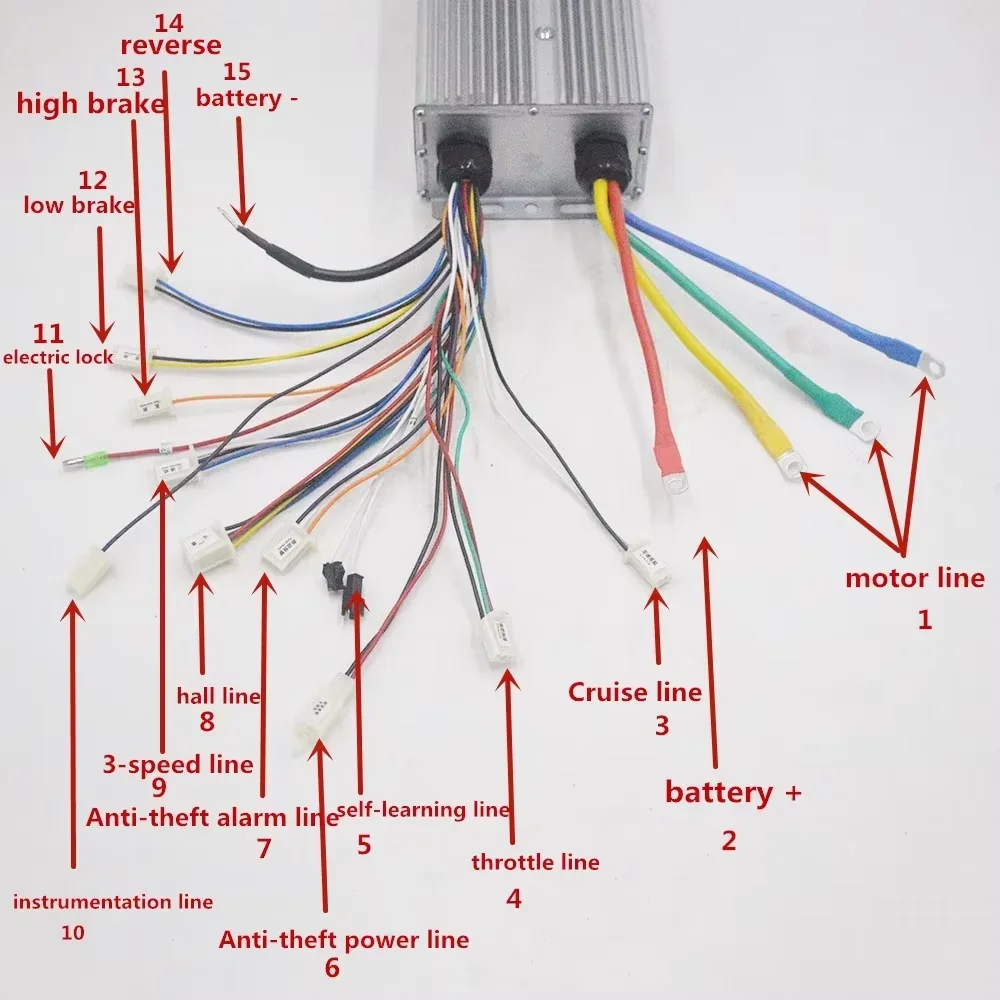

• Description: *Brand new and high quality *Made of fantastic materials, realistic *Brake battery: high/low battery *Turning manage voltage: 1±4 *Waterproof level: splashproof *Applicable to 48V 52V 60V 72V *Applicable to 60A *Applicable to 1000W 1500W 2000W 3000W *Applicable to Hall motor and Hall-free motor *Tricycle, four-wheel vehicle, bicycle, scooter lithium battery modification controller set *Product function: change three-speed, clever cruise, anti-theft, reverse, one-button start Specifications: *Material: plastic + steel *Color: silver, *Size: 260x120x70mm *Weight: about 1kg Package includes: 1 x controller Note: 1 The precise coloration of the object may be slightly diverse from the image shown at the website, which is caused by many factors similar to monitor brightness and light-weight brightness 2 Please allow slight guide size deviation for the information Connect three motor wires (the motor wires have no positiveor negative poles and can be connected arbitranly) the three wires of the controller to the three wires ofthe electrical car motor; NO The fantastic and unfavourable poles of the ability supply andthe lock wire of the switchPlease join the flexibility cord (thick purple line for positivepole, thick black line for destructive pole) and the change lockwire (thin red line) of the controller to the fine andnegative poles of the electrical car strength delivery andthe change lock cord respectively NO Leaming Line Firstly, please insert a couple of white studying wires of thecontroller together, then plug within the energy key and switch onthe energy to watch whether the motor rotates:1 lf the motor rotates forward, it signifies that learninghas been completed, please unplug the educational wires;2 lf the motor rotates in reverse, unplug the training wireand reinsert it Wait for the motor to rotate ahead beforeunplugging the training wire NO Hall line This product has five connecting wires and one connectorfor the Hall twine If there's a shaking sensation when linked to Hall, itindicates that this product can start without Hall;If the motor Hall (sensor)is damaged, it's endorsed to not join the Hall NO Twist the thread Please connect the handle twine of this controller (red wireis the effective pole, black twine is the detrimental pole, andgreen wire is the signal wire) and the manage twine on theelectric automobile accordingly After completing the above 5 steps, the electric vehicle can operate normally Please install other required applications your self NO Fine red high and coffee level brakesThe controllerhas both a separate yellow line for high-levelbraking and a black and white line fór low-evel braking Highlevel braking and low-evel braking are prominent bybraking yoltage lf the braking voltagè exceeds 5V, high-levebraking is used lf the braking voltage is lower than 5V, uselow-level braking Both high and lowlevels have the impact ofbraking powerfailure NO Instrument lineThe device cable is a separate skinny inexperienced wire, suitable forpointer sort devices it is a LCD software pleasechoose carefully, as there may be mismatches NO Patrol routesCruise control is divided into automated cruise control (cruiseline insertion is sufficient) and button cruise management (twobuttons pop out and are connected to the cruise line) NO Connected to 3 velocity lineThe 3 pace line is blue brownblack,with blue and black quick circuits indicating excessive speedbrown and black short circuits indicating low speed, and electncvehicles default to medium velocity NO Connected to anti-theft alarm functionThe anti-theft functionline consists of two units of wires: the anti-theft energy supplyand the anti-theft sign Among them, the purple and black lineof the anti-theft power delivery characterize the effective ananegative poles of the battery, while the red line of the anti-thefsignal represents the lock wire of the switch, the yellow linerepresents the wheel signal wire, and the blue line representsthe anti-theft sign twine NO Reverse functionThe opposite function is a closed circuit thatcan get replaced in keeping with one&;s own wishes Short theblack and grey traces of thé opposite line to reverse NO LCD instrument STEP Connect the 3 motor wires first (the motor wires haven't any fantastic or detrimental poles, so that you can connect them at will) Connect the three thick yellow, green and blue motor wires with the 3 motor wires of the electric vehicle, shake the rear wheel with your hand to really feel if there is any resistance, if there's no resistance, proceed to the second step, if there may be resistance, test if the three motor wires aren't related wisely (How to come across whether the motor is sweet or bad: contact the motor wires of the electrical car two via two, if there's resistance, it skill the motor is good, if there isn't any resistance, it means the motor has a problem) STEP Connect the high-quality and adverse poles of the flexibility delivery and the electrical door lock twine The strength cord of the controller, the thick pink is the effective pole, the thick black is the detrimental pole, and the thin red twine is the electric door lock wire, which are matched with the fine and adverse poles of the flexibility supply and the electric door lock twine of your electric vehicle! (Note that the high quality and damaging poles of the ability delivery must not be linked in reverse, in any other case the controller will be burned If the electrical automobile doesn't have an electric door lock wire, the electrical door lock cord at the controller and the superb pole of the ability delivery could be short-circuited together) STEP Connect the learning twine There is a pair of white learning wires on the controller Plug the learning wires together, then plug in the power key, switch on the power, and see if the motor rotates routinely Forward rotation, simply unplug the training cord Reverse rotation, unplug the training wire, and re-plug it to grow to be forward rotation, then unplug the learning wire to complete the training (after this step is completed, the motor automatically rotates to prove that the controller is good, and if it would not rotate, it proves that the controller has problems) STEP Connect the Hall wire Plug in the Hall twine The Hall wire is 5 wires with one head Note: The Hall has high-quality and unfavorable poles STEP Connect the throttle cord Find the throttle cord for control, red, inexperienced and black, purple is the nice pole of the throttle, black is the damaging pole of the throttle, inexperienced is the sign twine of the throttle, then discover the throttle cord on the electrical vehicle, word that the throttle cord of the electric automobile should pop out from the throttle If necessary, you could possibly disassemble the throttle to spot which one is the throttle connector in the electrical vehicle, join the throttle connector, flip the throttle, and spot if the motor rotates If there isn't any response when turning the throttle at this time: 1 The nice and detrimental poles of the throttle should not connected correctly; 2 The throttle is broken, simply exchange a throttle (Friends with a multimeter can use the multimeter to test the throttle signal wire to peer if there is a voltage output Set the multimeter to the voltage output state, connect the purple needle to the golf green signal cord of the throttle, and fix the black needle to the black ground cord of the throttle to peer if there's a 0-5V voltage If there is no voltage, it proves that the throttle is damaged Be certain to connect the controller and the throttle and switch at the strength to test, otherwise it's going to not work) STEP Connect high and occasional battery brake wires 1 There is a unmarried yellow excessive battery brake wire on the controller, and a white and black low battery brake wire The high battery brake and the low battery brake are prominent through the brake voltage If the brake voltage is higher than 5V, use the excessive battery brake, and if the brake voltage is less than 5V, use the low battery brake The effect of high battery and coffee battery brake is to chop off the ability of the brake First, identify what number of wires come out of your brake handle, one for the high battery brake and two for the low battery brake (If your vehicle is a flip brake, you need to pull out the white and black of the low battery brake and put it along with the turn handle cord to realize the impact of brake strength off) 2 Because the EABS electronic brake is built into the controller program, the electronic brake effect may be generated as lengthy as the brake is powered off The electronic brake is when the brake is powered off The motor generates a opposite force to brake Sometimes there will be a "click" sound, which has no impact on the motor Please be happy to apply it STEP Connect the tool line The tool line is a unmarried thin green line, suitable for pointer instruments If it is a liquid instrument, please desire carefully, there is a mismatch STEP Connect the cruise line Cruise is divided into automated cruise (just plug the cruise line in) and button cruise (just connect the two traces from the button to the patrol line) STEP Connect the anti-theft alarm function The anti-theft function line includes two teams of lines: the anti-theft strength delivery and the anti-theft sign Among them, the purple and black traces of the anti-theft power delivery signify the positive and negative poles of the battery respectively, whereas the red line of the anti-theft sign is the electrical door lock line, the yellow line is the wheel signal line, and the blue line is the anti-theft sign line Be careful not to connect the wrong lines! STEP Connect the opposite line The reverse function is a closed circuit, connect according to your needs (special reminder that the 350W controller does not have a opposite function, if you need a reverse function, please make a note)

•
•
•
•
•
