Description

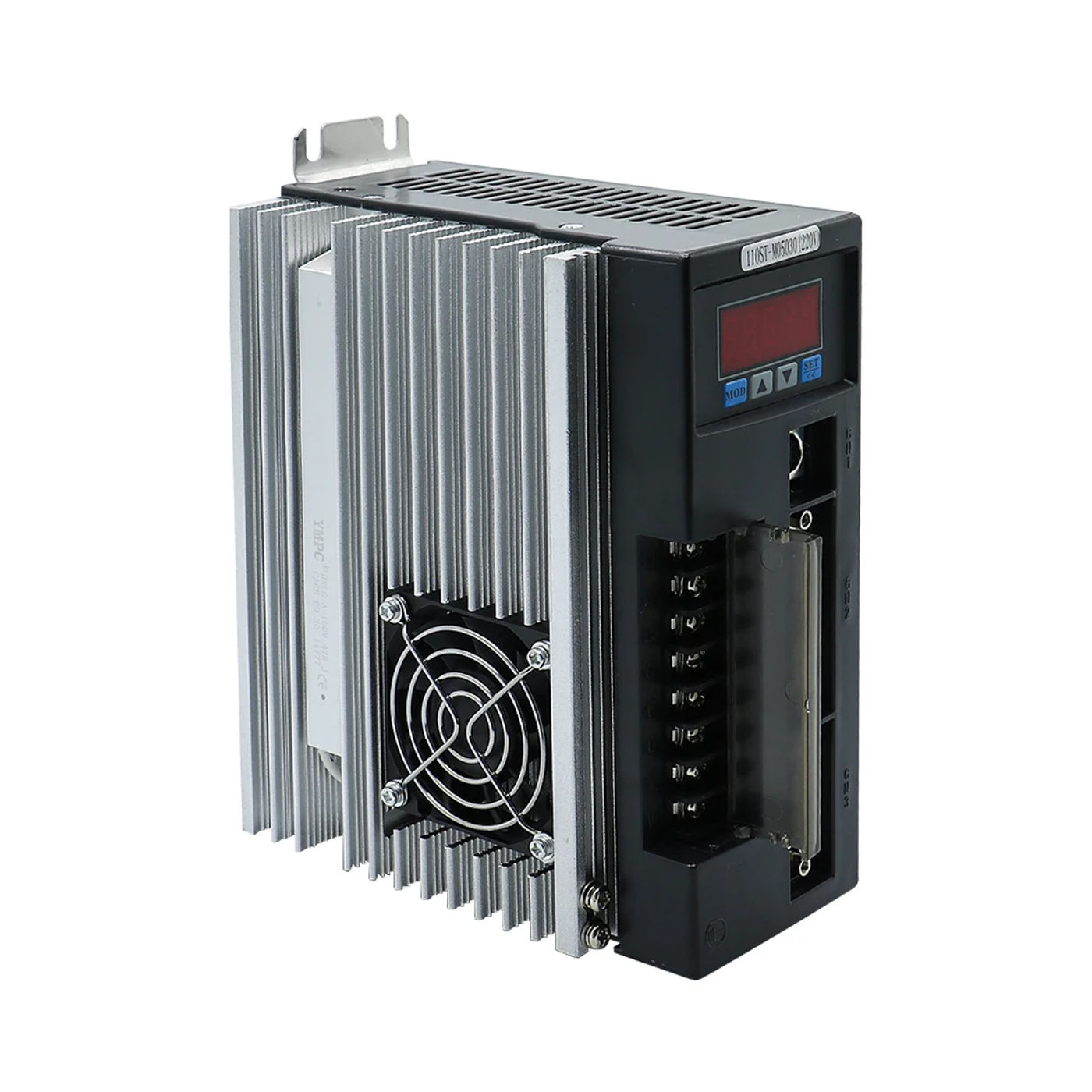

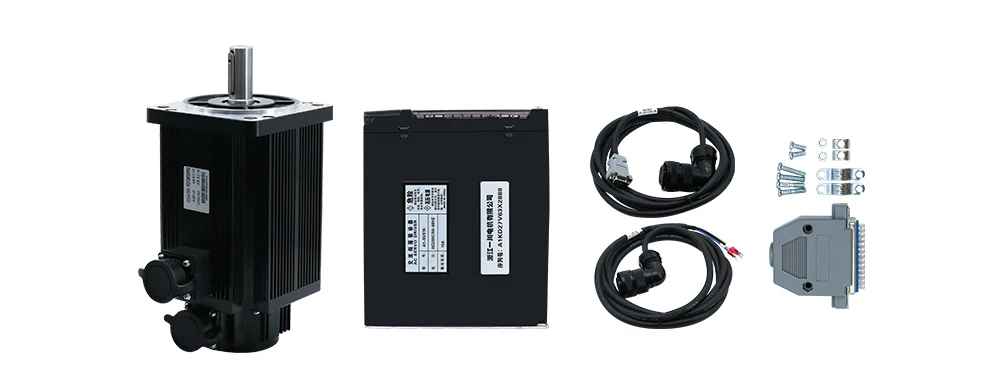

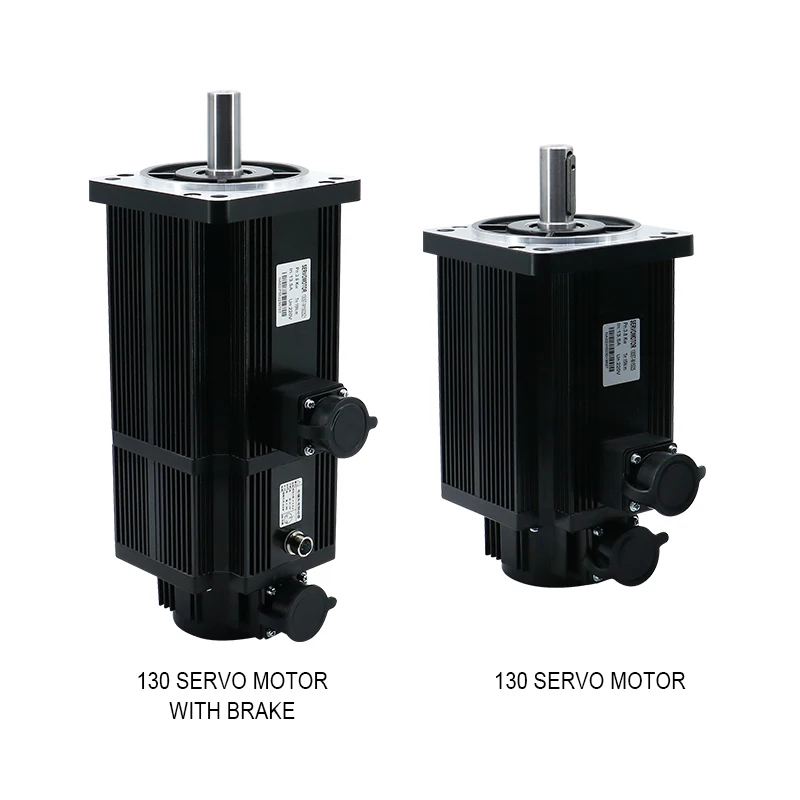

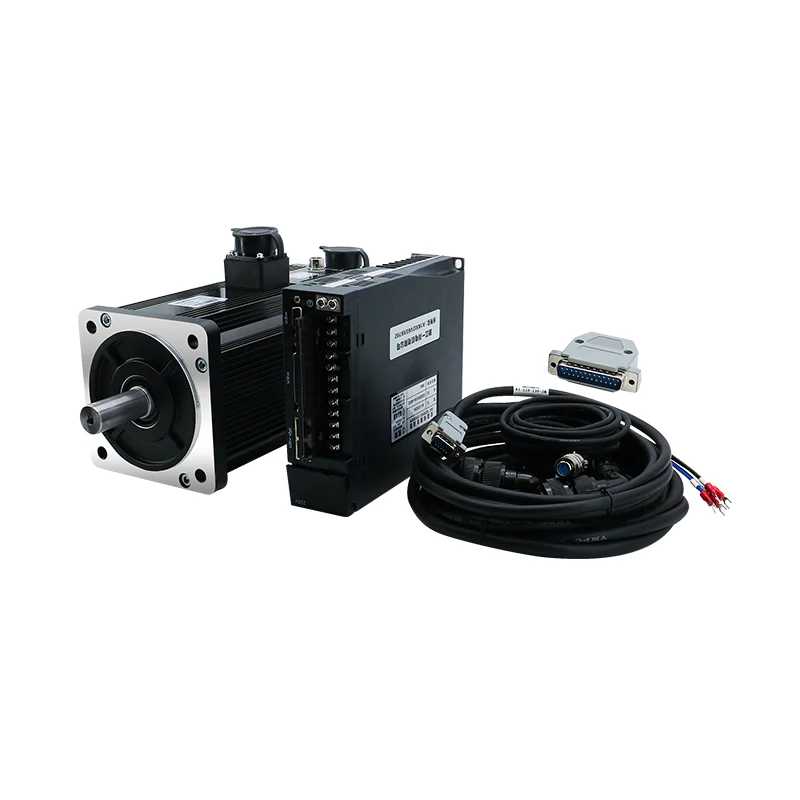

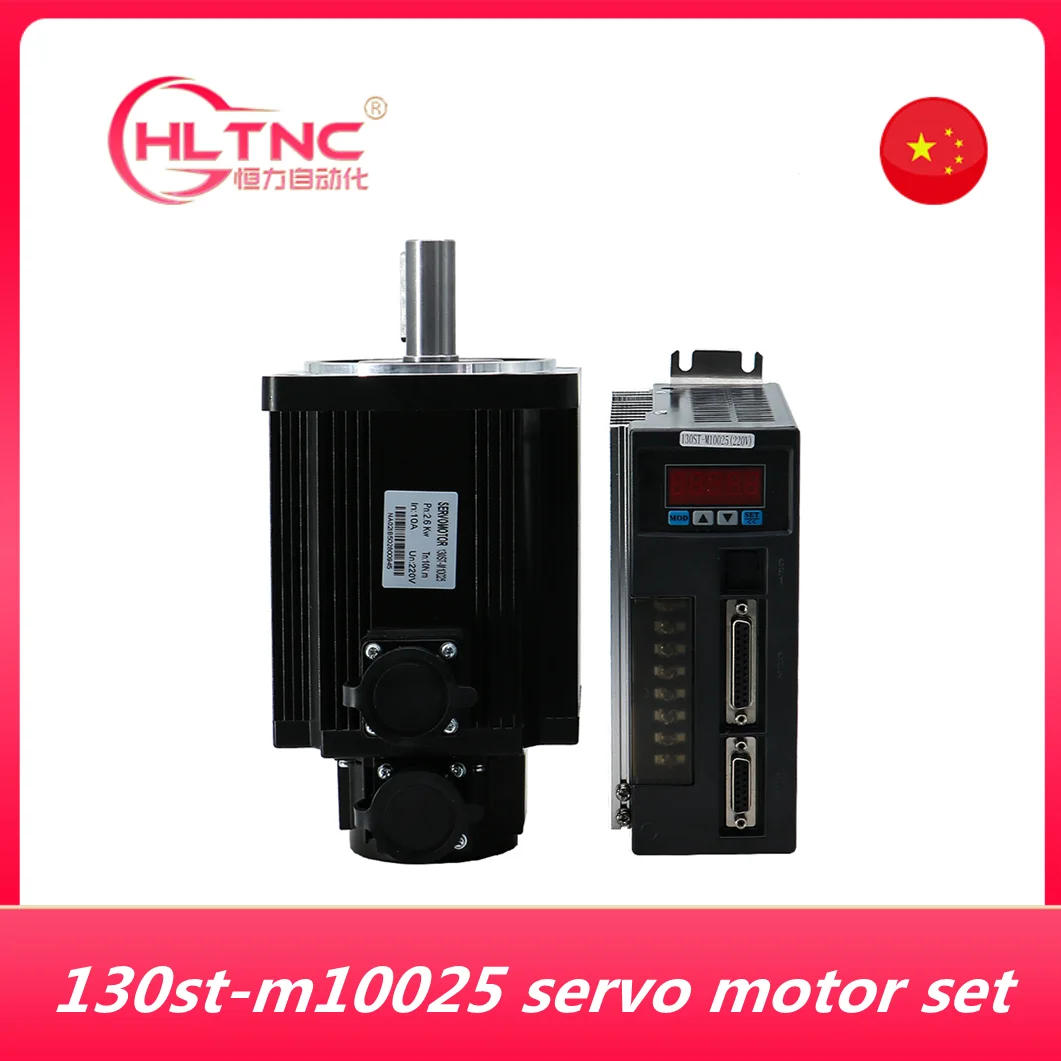

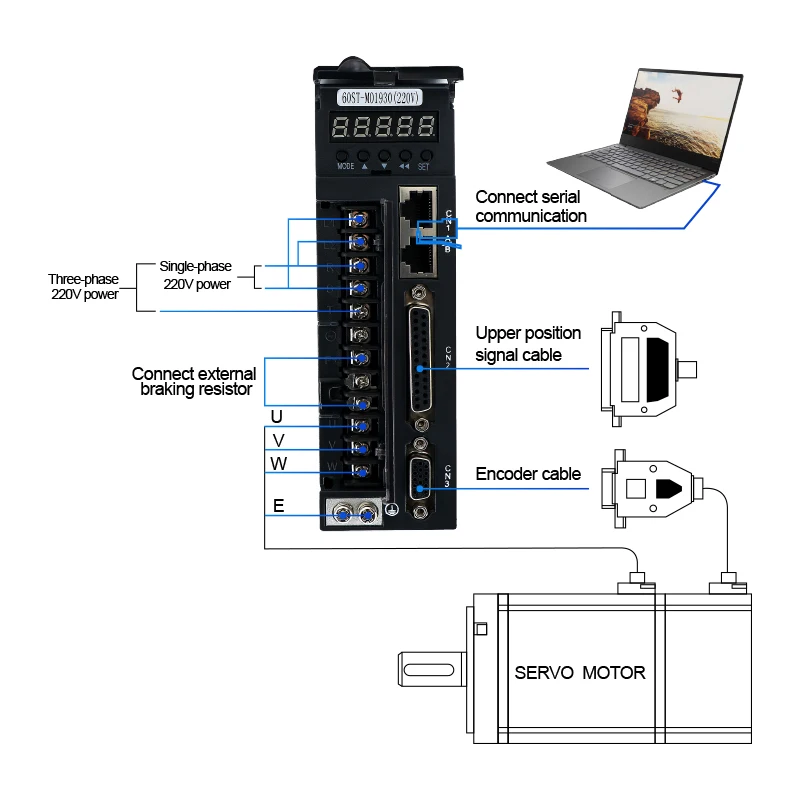

• 1* AC Servo Drive 1* a hundred thirty servo motor with brake / with out brake 1* 3M/5M/8M motor cable 1* 3M/5M/8M encoder cable NOTE:Manual sent through e-mail 1 Stable performance and speedy reaction 2 heat dissipation design task 3 to numerous automation equipment Motor modle 130ST-M10025 Rated Power(kw) 2 Rated Voltage(v) 220 Rated current(A) 10 Rated speed(rpm) 2500 Rated torque(N) 10 height torque(N) 25 Voltage constant(v/1000/min) 70 Torque coefficient(N/A) 1 Rotor inertia(Kg) 1*10﹣³ Line-line resistance(Ω) 0 Line-line Inductance(mH) 2 Electrical time Constant(Ms) three Weight(kg) 11 Encoder line number(PPR) 2500 Insulation class category B(130℃） Safety category IP65 The Operating of Environmental situations Temperature:-20℃~+50℃ Humidity：Below 90%RH NO dewing Motor winding lue winding load cord U(red) V(yellow) W(blue) PE(Yellow-green/black) Plug serial number 2 three 4 five Encoder Plug Singal lead cord 5V 0V B+ Z- U+ Z+ U- A+ V+ W+ V- A- B- W- PE Plug serial quantity 2 3 four 5 6 7 eight nine 10 eleven 12 thirteen 14 15 1 ① Communication Interface ② PC signal input ③ Encoder sign input ④ Control circuit power supply ⑤ Main circuit power supply ⑥ External braking resistor interface ⑦ Motor power line ⑧ Ground terminal Button Button call Function MODE Mode choice key 1 switching 2 to the upper-level listing Number increase key Increase the number, long press has a repeating effect Decrease key Decrease the number, lengthy press has a repeating effect Shift Shift key Cursor shift SET OK Key 1 Confirm the settings 2 End parameter settingButton call Note: If all 5 decimal aspects of the visual display unit are flashing, it warns that an alarm is generated alarm ought to be cleared earlier than the force can paintings usually Without brake With brake AASD-30A

•
•
•
•
•
