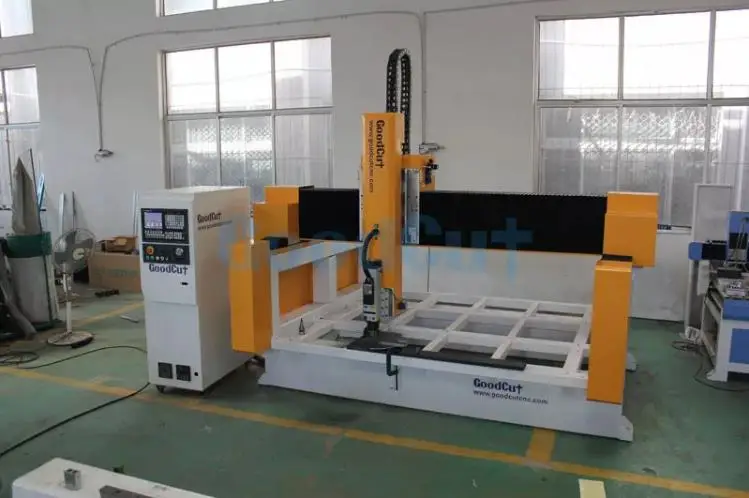

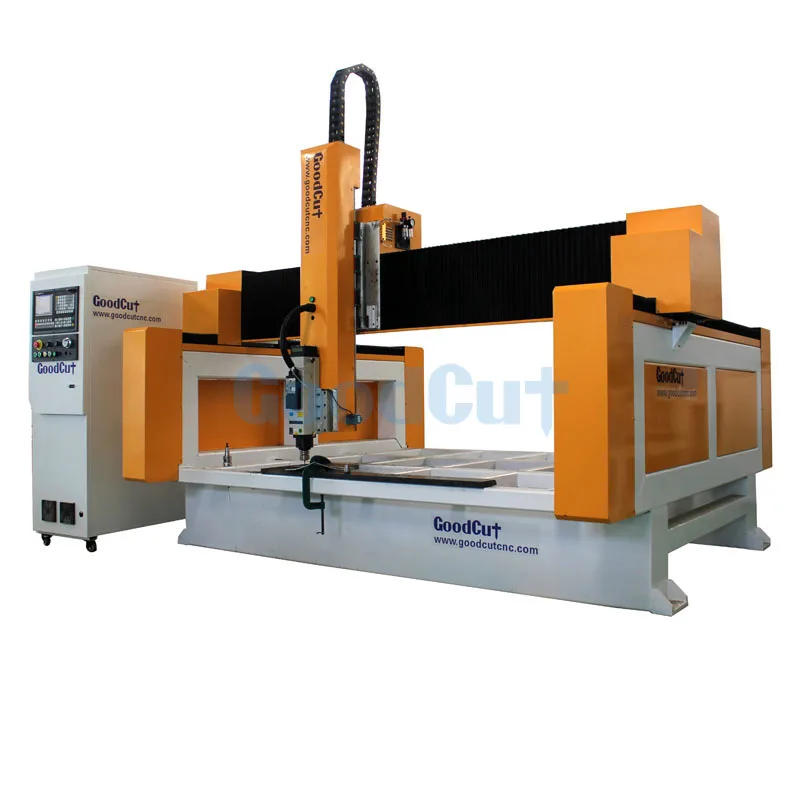

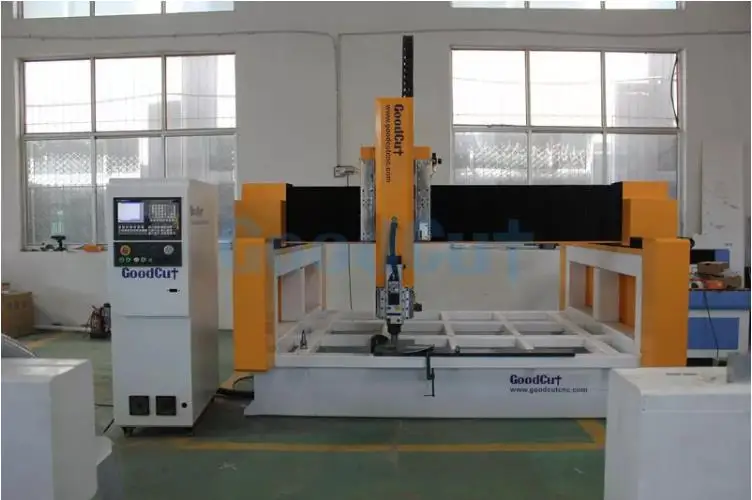

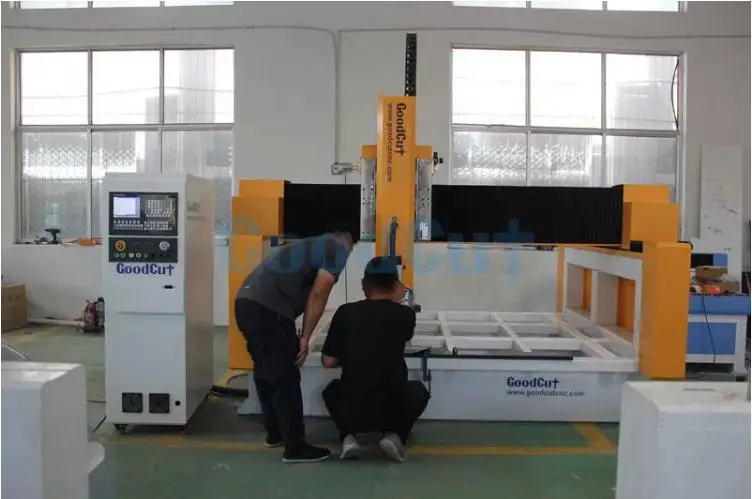

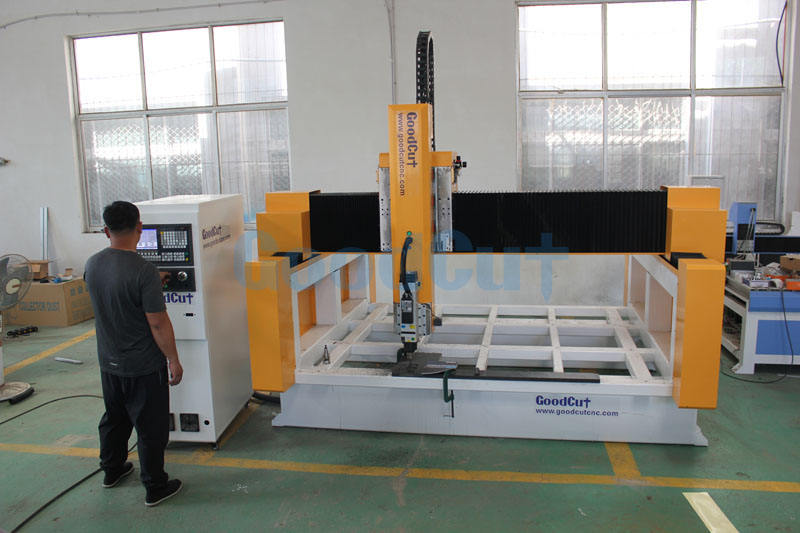

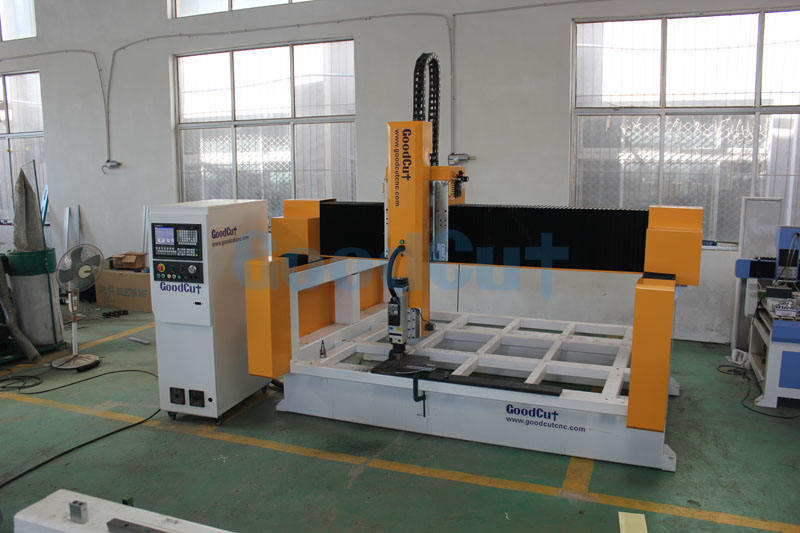

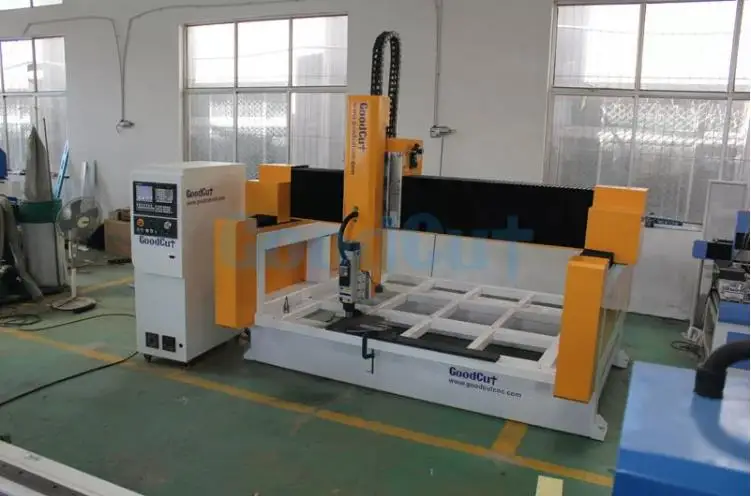

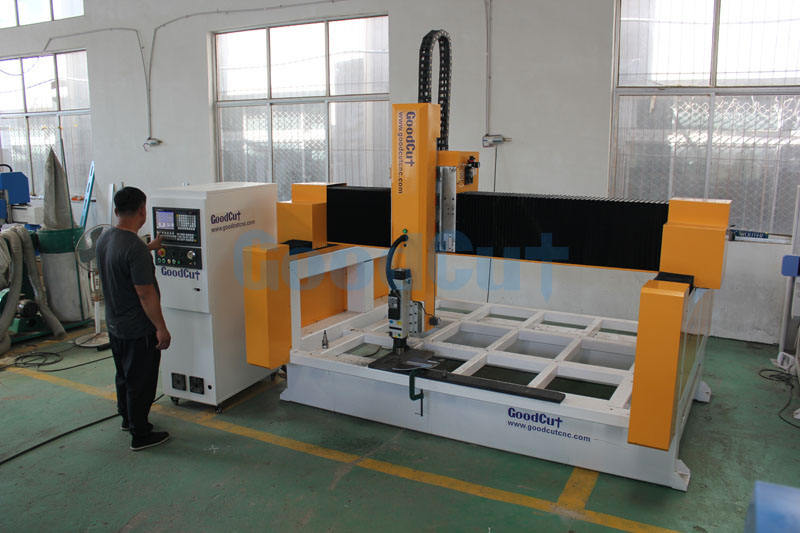

• 3D 4 axis eps foam hot wire cnc cutter machine Product Description Machine Features: 1) Big steel tube structure, so the machine’s body is strong, reliable and durable. It is with large bearing capacity and long working life. 2) Top-quality components, to make the machine hig-precision and high-efficiency. HSD spindle, Delta inverter, TBI ball screw,Yaskawa servo motors , Syntec control system and so on, which keep the machine in best condition even after working for many years. 3) Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages. Stop Emergency Buttons , emergent shutdown during unexpected accidents and do no harm to human. Colorful machines’ appearances and high-quality paint make the machine beautiful. 4) Easy and safe operation and low maintenance cost. To make you learn quickly how to operate safely the machine, free training in our factory will be offered. Less time and less money will be cost on the maintance because of the top quality of the machines. 5)According to your requirement, different configurations will be offered. Advantage: 1)We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving. 2)The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material. 3)The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact. 4)The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly. Product Paramenters Working size1500*3000*500mm Rotary working size 1000mm diameter, 2500mm length Lathe bed structure T-extrusion,Thick Steel frame Table Removable,T-slot with clamps X structure Rack and pinion, linear square rail Y structure Rack and pinion, linear square rail Z structure Ball screw, linear square rail Reposition accuracy ±0.05mm Max. travelling rapid 0-60000mm/min Max. working speed 0-30000mm/min Spindle power 9kw air cooling ATC spindle Tool magazine Linear type auto tool changer,8 tools ability Working mode Leisai servo motor and driver Operating system 4 axis Ncstudio with handwheel Command code G code(*uoo,*nc,*mmg, *plt) Working voltage 3 phase AC380V 50Hz Running circumustance Temperature: 0°C~45°C relative humidity: 30%~75% Detailed Images 180 degree rotated spindle HQD and HSD for optional. YASKAWA servo motor and driver Taiwan Syntec control system Taiwan TBI ball screw Rotary device for optional 1) Taiwan Syntec controller. It is professional easy operation in 4 axis machine line. DSP/NC studio controller for optional. 2) Air cooling spindle HQD 6.0KW , it can ensure the machine working for long time. 3) Original Japan YASKAWA Servo motors & drivers from Japan 4) Self-lubricating, life-long maintenance-free Taiwan guide rail. 5) Divided structure ,Fixing with screws,the whole structure is tested to the limit for sturdiness and reliability. 6) Breakpoint resume, tool selection process ,high precision. Application 1) Mold: wood,wax, wood, gypsum,foams,wax 2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. 3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments. 4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds. 5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Jinan GoodCut CNC Machinery Co.,Ltd. Linna Du Wechat/Whatsapp:008617615806860 Email/Skype:goodcut1@goodcutcnc.com

•
•
•
