Description

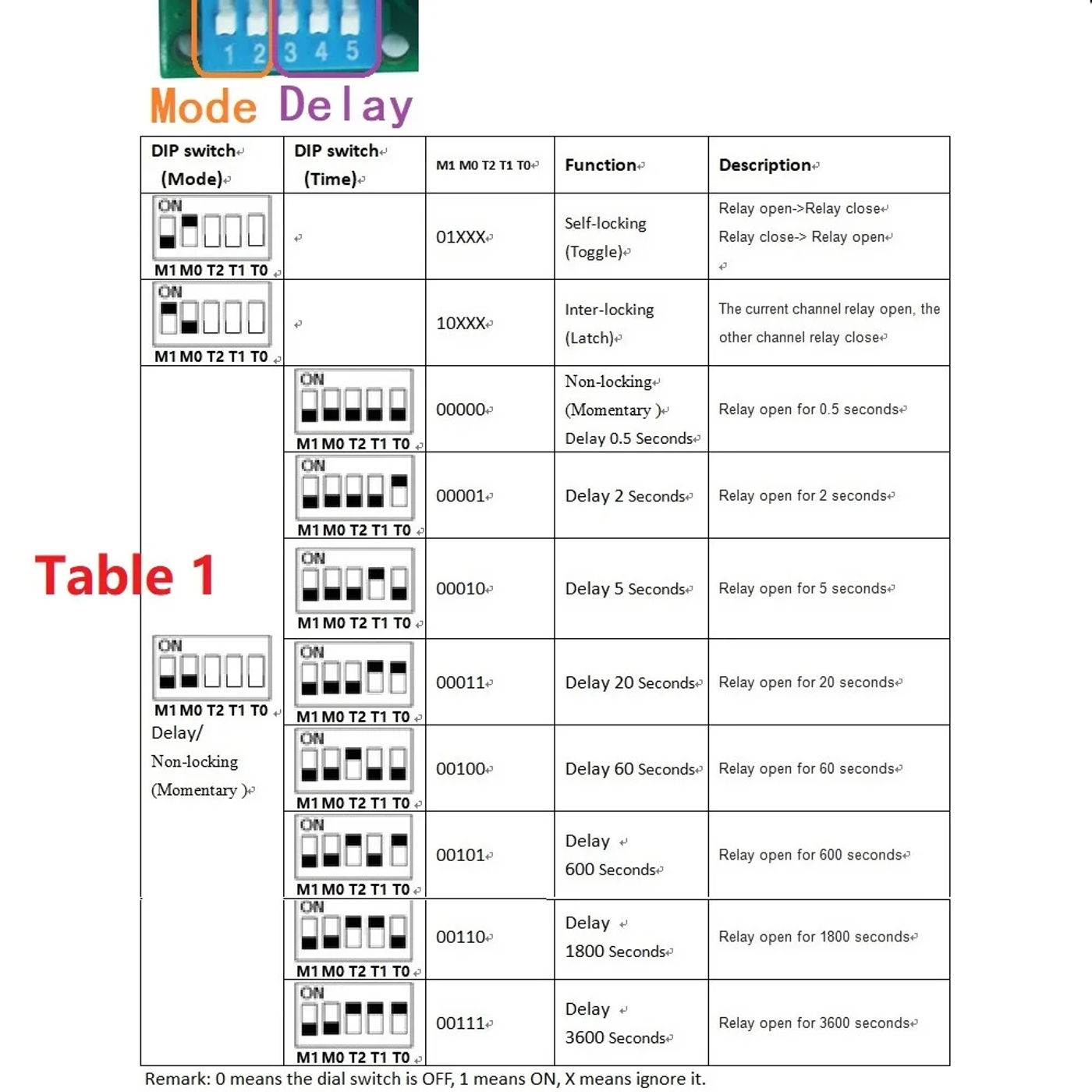

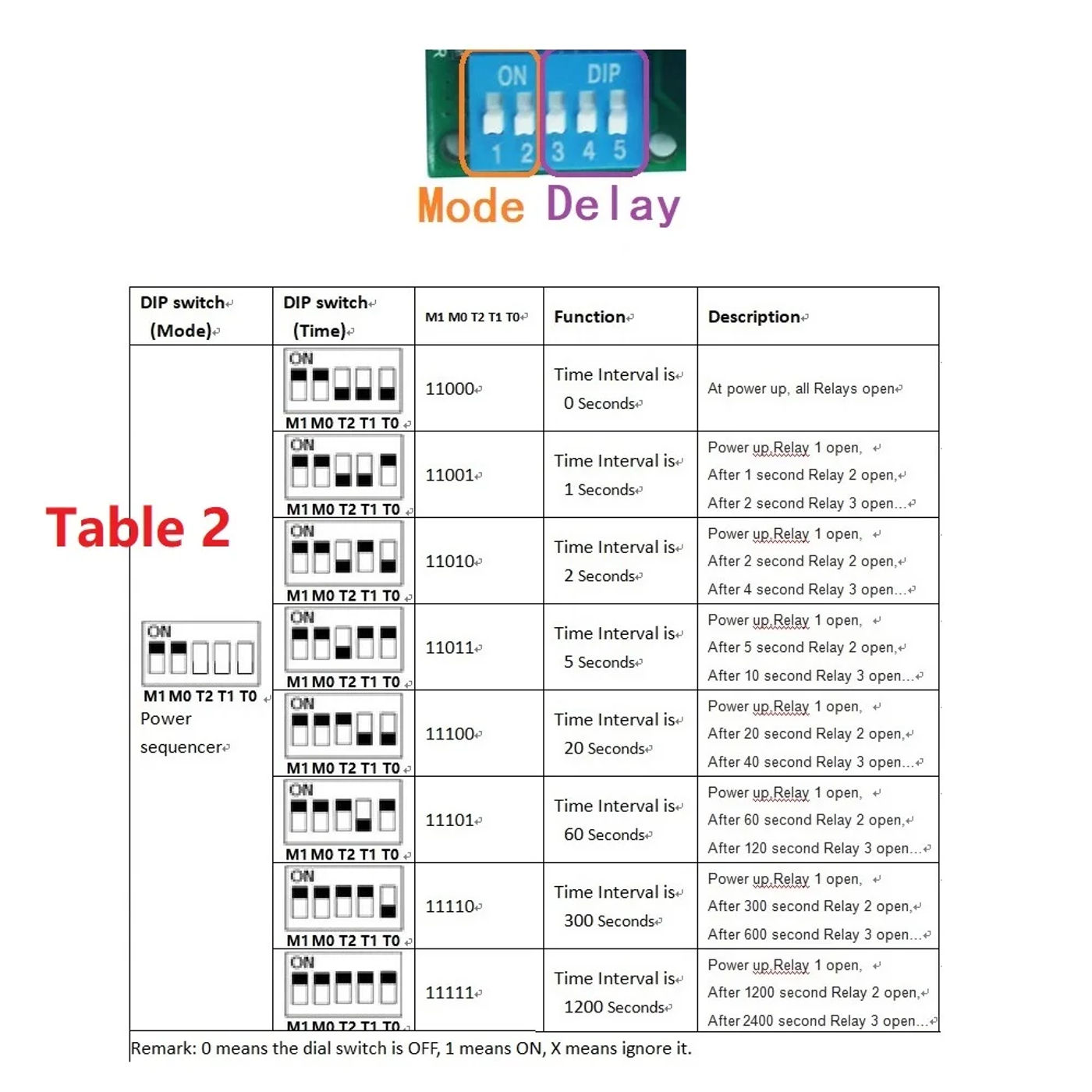

• Product Name: 4ch DC 5V 12V 24V Multifunction Delay Relay Time Switch Turn on/off PLC Module Power Conditioner Sequencer Package inlcuded: 1 PCS IO26G04 DC 5V/12V/24V 4ch Dip Switch Delay relay module Product Specifications:1 Operating voltage: DC 12V(DC 5V/ 24V Optional) 2 Operating Current(DC 12V) : Standby current 4MA, 1 relay open 32MA, 2 relays open 59MA, 3 relays open 85MA, four relays open 114MA; three Size: sixty eight x fifty three x 20 mm 4 Weight : 57g five Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A Product Features:4 channel relay, every single channel independently caused self sufficient delay, do not intrude with one another 4 kinds of Functional mode: Delay/ Non-locking (Momentary ); Self-locking (Toggle); Inter-locking (Latch); Power sequencer(Relay collection opens) Low pulse trigger(Connect to the ability delivery GND by way of the trigger button or low level management via the MCU IO port) The function mode and delay time are chosen through the DIP change Noun resolved: NO : Relay normally open touch COM : Relay typical contact NC : Relay usually closed contact Relay open: COM join NO Relay close: COM disconnect NO Typical applications: Automotive electronics AC DC Motor Audio amplifier Sequential strength up Power Conditioner/Sequencer Smart Home Emergency lighting fixtures MCU development board Toy car UNO MEGA2560 Car put off energy off operate methods to use: Select the desired operate mode and postpone time via the DIP activate the board Note: Re-power up after changing the Dip swap Wiring diagram:1 DC 12V Control circuit,Wiring diagram beneath &;&;LOAD&;&; could also be LED lights, fans, toy vehicle andother DC 12V kit 2 DC 1-100V OR AC 85-265V control circuit,Wiring diagram under &;&;LOAD&;&; could also be LED lights, fans, motors and different DC AC kit

•
•
•
•
