Description

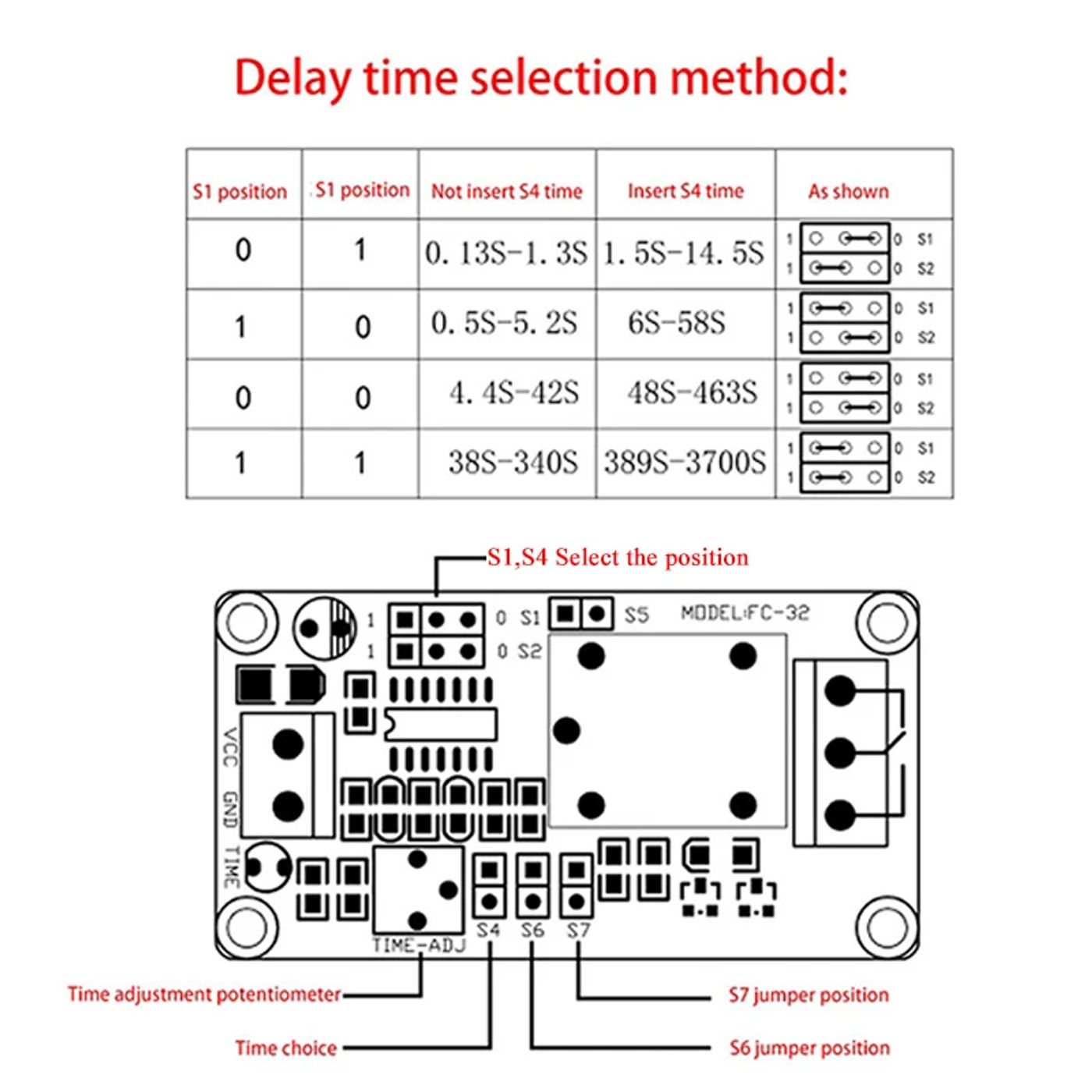

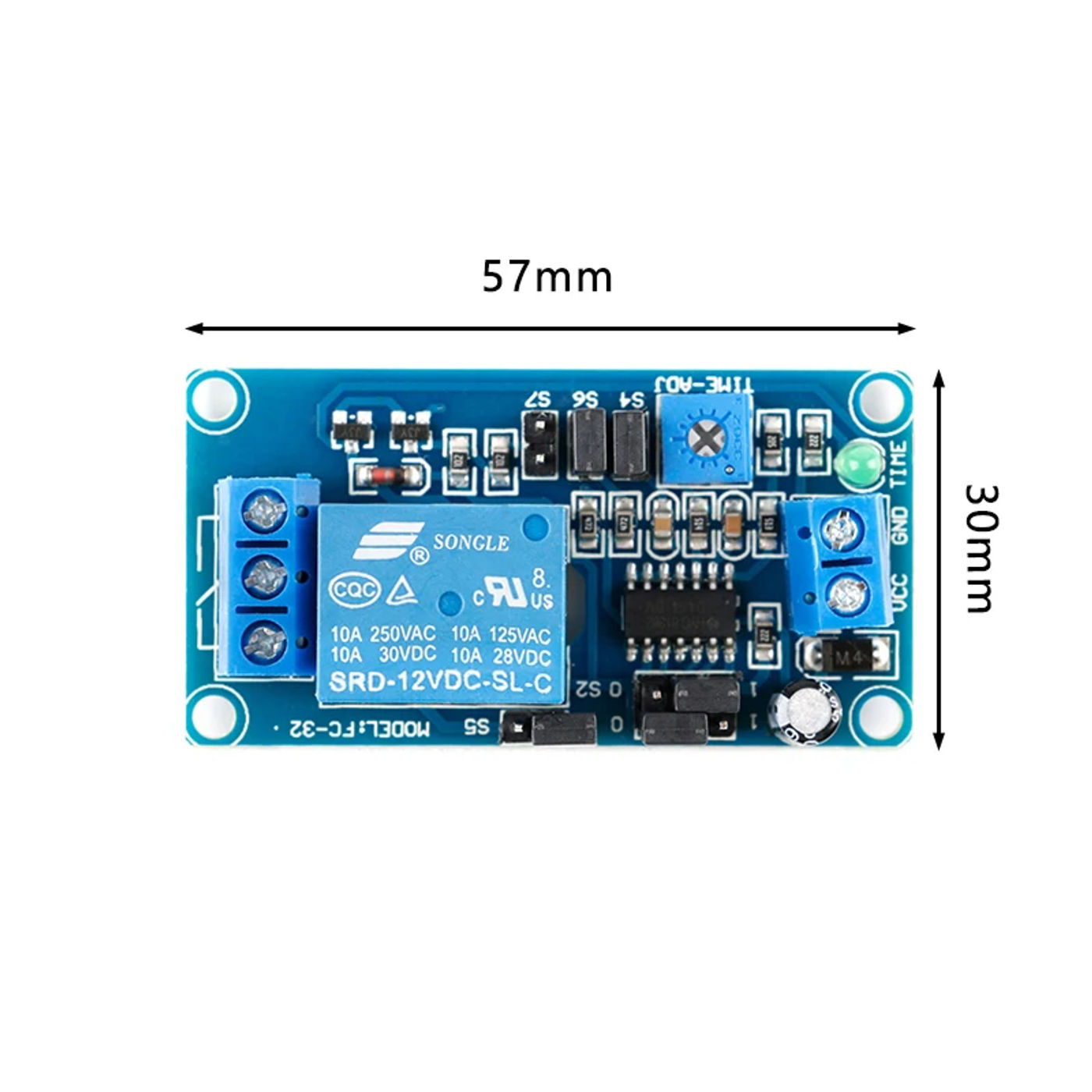

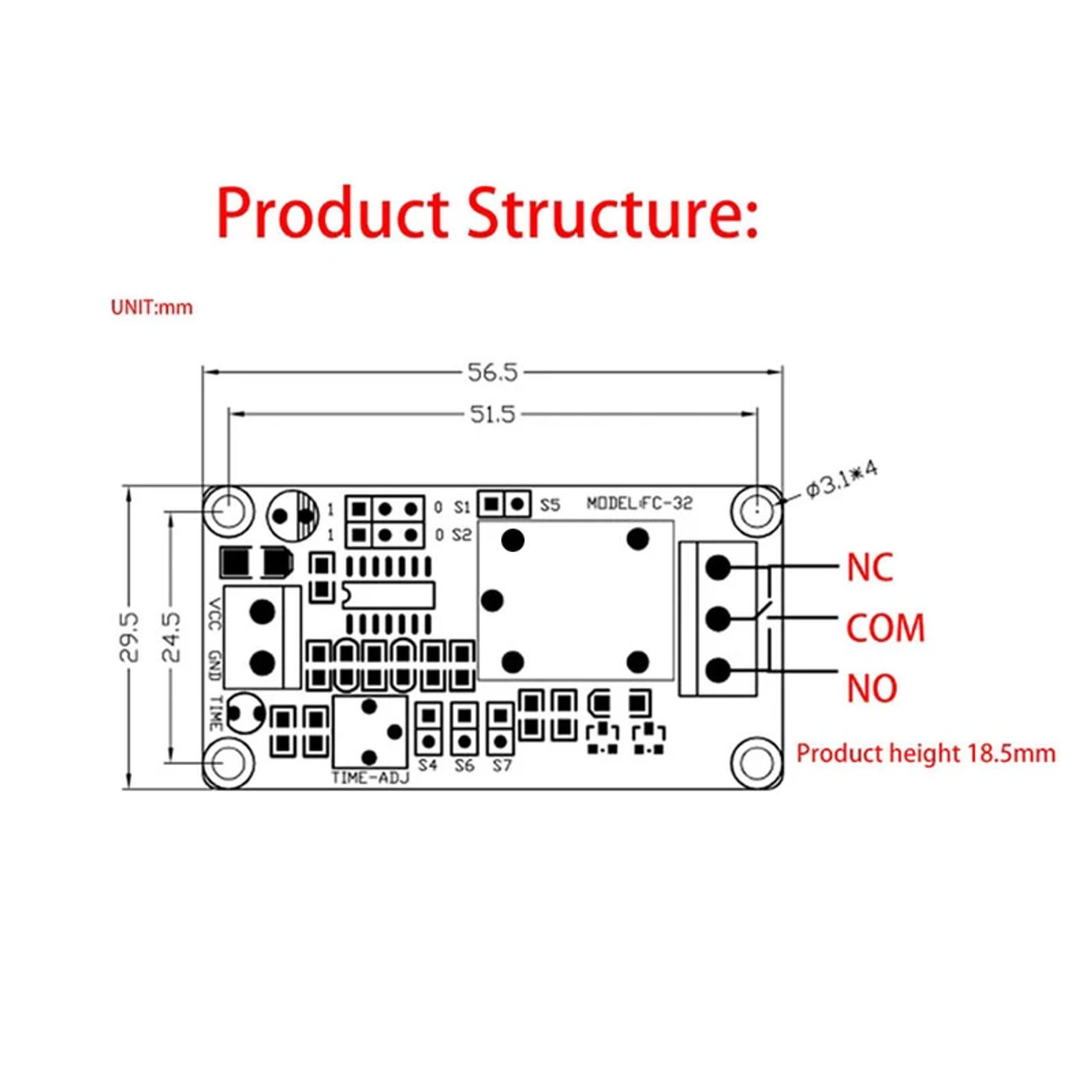

• DC 12V Time Delay Relay Module Delay Turn On / Delay Turn Off Relay Switch Module With Timer DC 12 V Volt Timing Relays Board Product introduction:The 5V/12V delay relay module makes use of advantageous relays with a maximum latest of 10A The module makes use of double-sided FR-4 PCB boards The overall module structure is affordable and exquisite Use customary high-performance postpone chip, larger performance With a delay adjustment potentiometer, the shortest is 0, the longest could be up to 1 hour, and it has a protection diode opposed to strength reverse connection, which might efficiently protect the product The module can be used in varied control situations corresponding to driving recorder, GPS birth protection, household appliances, digital kit protection, PLC control, business control, electronic experiment, for arduino robot, and so on parameters:Delay relay module power-on delaySupply voltage: 5V/12VQuiescent current: 2/5 working current: 70mA/42mALoad voltage: DC 30V or AC 250VLoad current: 10ARelay life: more than 100,000 timesMaximum switching frequency: 5KHzProduct weight: about 22gStructure size: 57*30*18 (length * width * height)Positioning hole size: 52*25mmInterface Description:1 When the S6 jumper cap on the module is plugged in and the S7 is not plugged in, the module will delivery timing as soon as the power is turned on (the time fluctuate is adjustable), and the relay will be closed immediately, and the common terminal of the relay might be related to the normally open terminal , The delay is over, the relay is released, and the typical terminal is attached to the normally closed terminal When the S7 jumper cap on the module is plugged in and S6 isn't plugged in, as soon because the module is powered on, it will beginning timing immediately (the time differ is adjustable), at this time the relay isn't closed (not connected), and the put off is over , The relay is closed, and the typical terminal is hooked up to the normally open terminal:When the relay controls AC 220V or different DC energy delivery voltage more than the VCC terminal, the jumper cap S5 can't be inserted If S5 is inserted in this case, the high voltage will movement back into the module, which will burn the module for use:When the relay is in pull-in, the typical terminal is attached to the normally open terminal, and both ends of the weight have electricity to workWhen the relay is off, the average terminal is attached to the normally closed terminal, and the weight would not work without electrical energy Warm prompt: Due to Ali transport ruleswhen using differen logistics the best way to purchase products,some shipping fee might be charged a number of occasions position order first and call us to change the value we are able to tell you make the payment you!!Dear buyer, Cainiao Super Economy Global is unfastened but it could not be tracked because the parcel left China( and not using a valid tracking number) ,please desire Standard category logistics if you want a full tracking information From 1 July 2021, Buydo is needed beneath the hot EU e-Commerce VAT guidelines to gather VAT for orders at EUR 150 or less which are transport from outside of EU to customers located in EU at check-out Such VAT accumulated orders can be declared for customs with Buydo IOSS number, here's to ensure that the products can then be launched without cost circulate and delivered to you without being charged with VAT or any further handling prices at the customs please stick to the link: Do you know? According to the quality of electronic components, they are often divided into: used goods, refurbished, scattered new, model new, made in China, substitutes, customary Different quality, the value is assorted What high quality do you want? What kind of high quality did you buy? Let us serve you in good faith,tell you obviously what it is, what price, and allow you to make your personal preference ADAPTER Develop Solutions Sponsor Of Scheme Independently Design Competition Sufficient Current And Electronic Technology Voltage Application Partner High Current And Voltage END Technical Design Open Circuit Protection Recommender Use Fireproof Materials To Exhibitors of China Electronic Eliminate Hidden Dangers Information Expo Company Introduction Integrated Circuits Optoelectronic Components Capacitors Quartz Crystal/Quartz Oscillators Connectors Resistors Diodes and Transistors Electronic Components Industry Services Inductors Our advantages : Our corporation has a lot of fashioned merchandise in stock, with the benefit of price, immediate delivery, supreme customer service and good carrier angle to focus on within the extremely competitive marketplace at home and abroad, and has turn into an IC semiconductor official and active passive element providers We help 7 DAYS refund MONEY with none conditions All merchandise provide Technical Support WE assist MANY KINDS OF logistics [DHL UPS FEDEX TNT] Trade Assurance agreement and reduction for postpone delivery time We accept SMALL ORDER to examine quality & assist OEM DESIGNS 24H/ 7D AFTER SALES SERVICES We help customers by HD PHOTO to help you grow up onlie store We had the respect to serve some of FAMOUS BRAND world wide Warm prompt: Due to Ali shipping ruleswhen using differen logistics the way to buy products,some shipping fee will be charged a number of times position order first and speak to us to alter the worth we will inform you make the payment you!!Dear buyer, Cainiao Super Economy Global is loose however it couldn't be tracked because the parcel left China( without a valid tracking number) ,please want Standard category logistics if you want a full tracking info 1 July 2021, Buydo is needed beneath the recent EU e-Commerce VAT guidelines to gather VAT for orders at EUR a hundred and fifty or less which are shipping from outside of EU to consumers located in EU at check-out Such VAT accumulated orders can be declared for customs with Buydo IOSS number, this is to ensure that the goods can then be launched without cost movement and delivered to you without being charged with VAT or any further dealing with expenses on the customs keep on with the link:

•
•
•
•
•
