Description

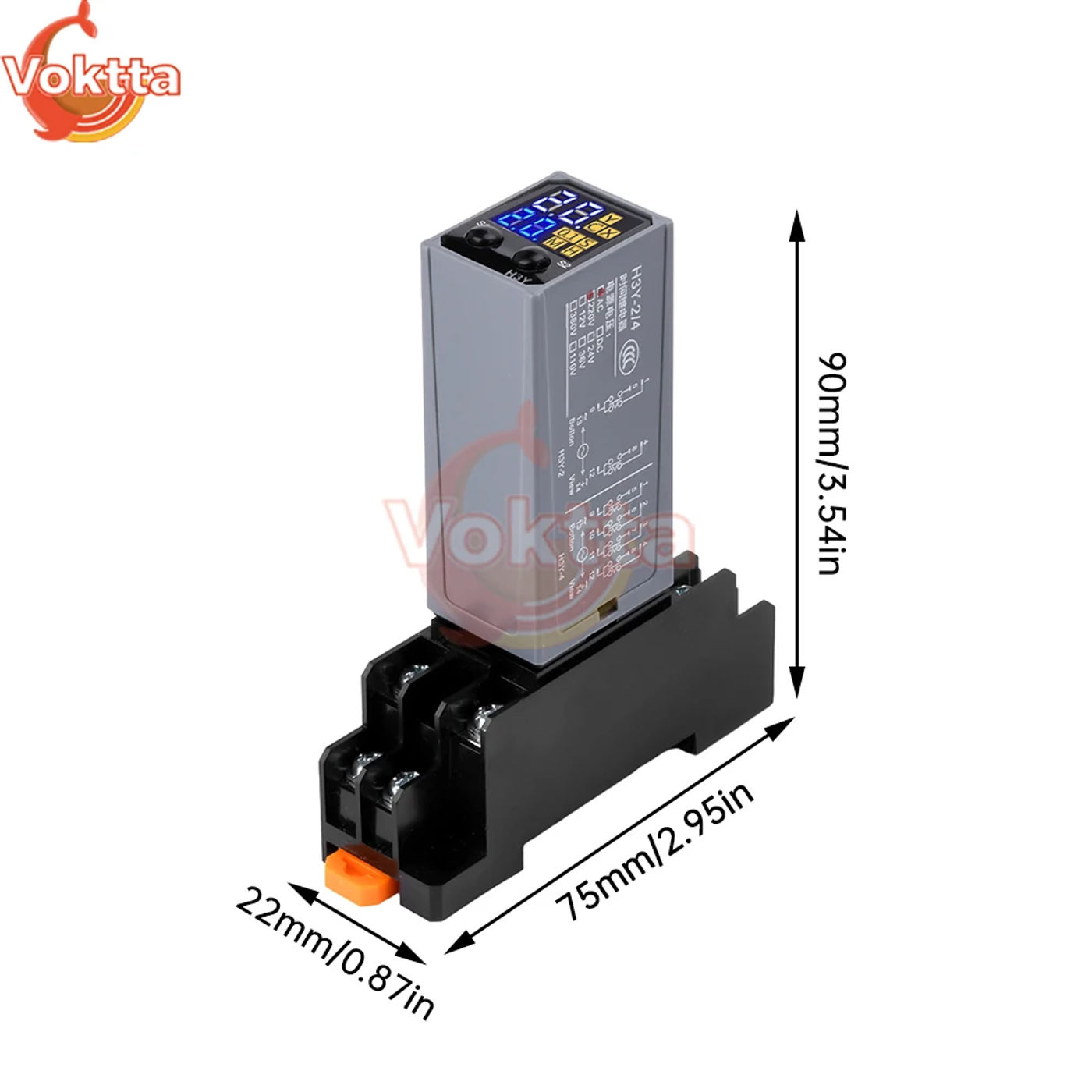

• DC12V DC24V AC220V Digital Time Relay Mini Power-on Delay Controller Time Relay Cycle Time Control Delay Device with Base Socket Product elements 1 PC casing, fireplace and hot temperature resistant 2 LED high-definition screen, more intuitive digital display panel three Silver contacts, secure performance, oxidation resistance, and high paintings efficiency 4 Large capability pins at the bottom, made of copper galvanized material, with high melting point, strong oxidation and corrosion resistance, and good conductivity 5 There are four delay modes: power on delay mode, put off release mode, cycle postpone mode, and cycle put off number atmosphere Product parameters Product Name: Time Relay (8 pins/2 open and 2 closed) Voltage: DC12V 24V 220V (optional) Time range: 0 Time error: 1% Power consumption: Max Environmental temperature: -25~75 ℃ Permissible voltage range: 90-110% of rated voltage Working mode: Y: Power on delay C: Delayed launch X: Loop postpone LC: Number of cycle delays Mode setting: Long press and keep the S1 button on the left for 3 seconds After the mode flashes, it will robotically cycle and turn Stop on the desired mode and release the button After 5 seconds, stop flashing and save Time base setting: Press and preserve the S2 button at the right for three seconds After the time base flashes, it's going to mechanically cycle and turn Stop at the desired mode and release the button After 5 seconds, give up flashing and save Number setting: Press the left button to change modes Shipping List Time relay * 1 Base * 1

•
•
•
•
•
