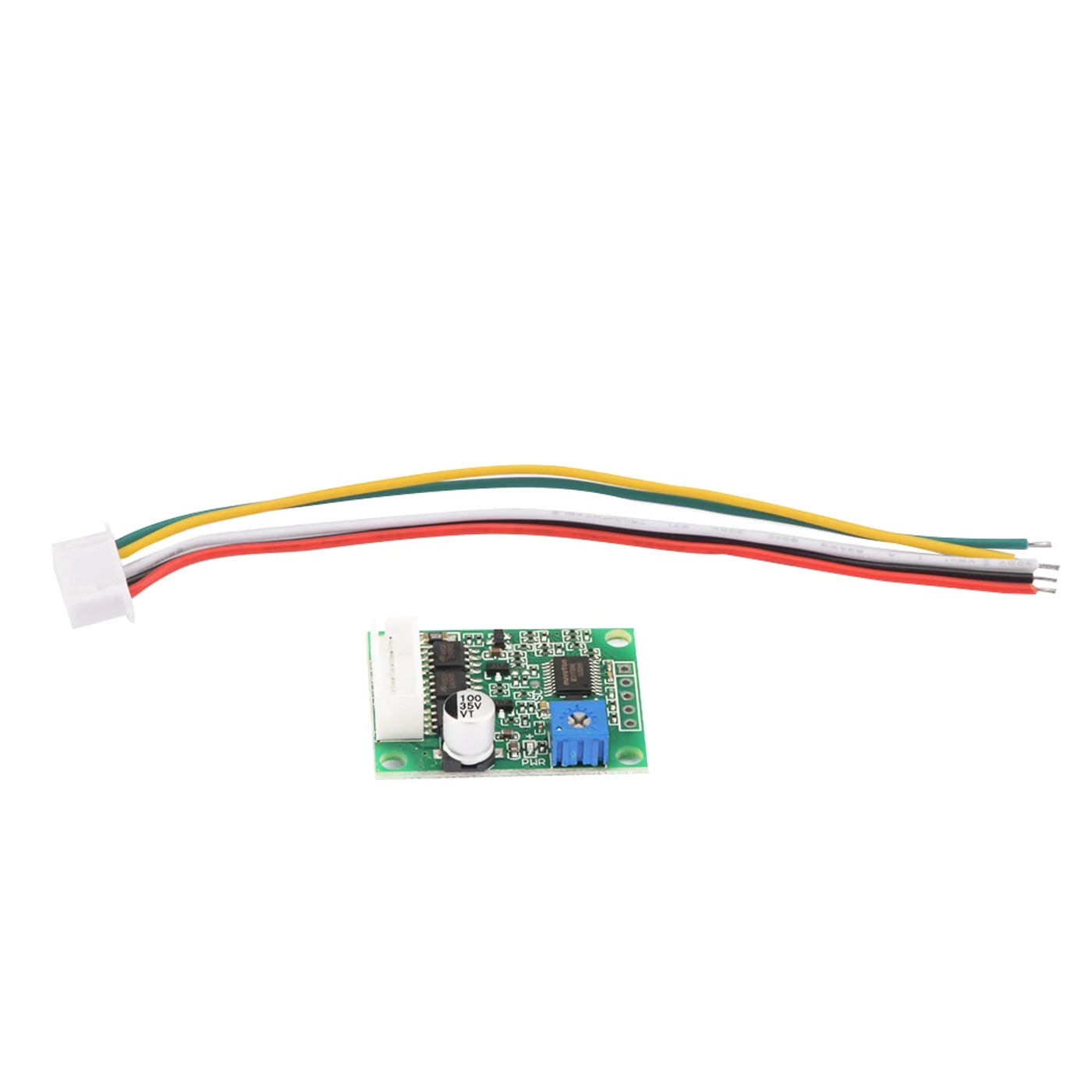

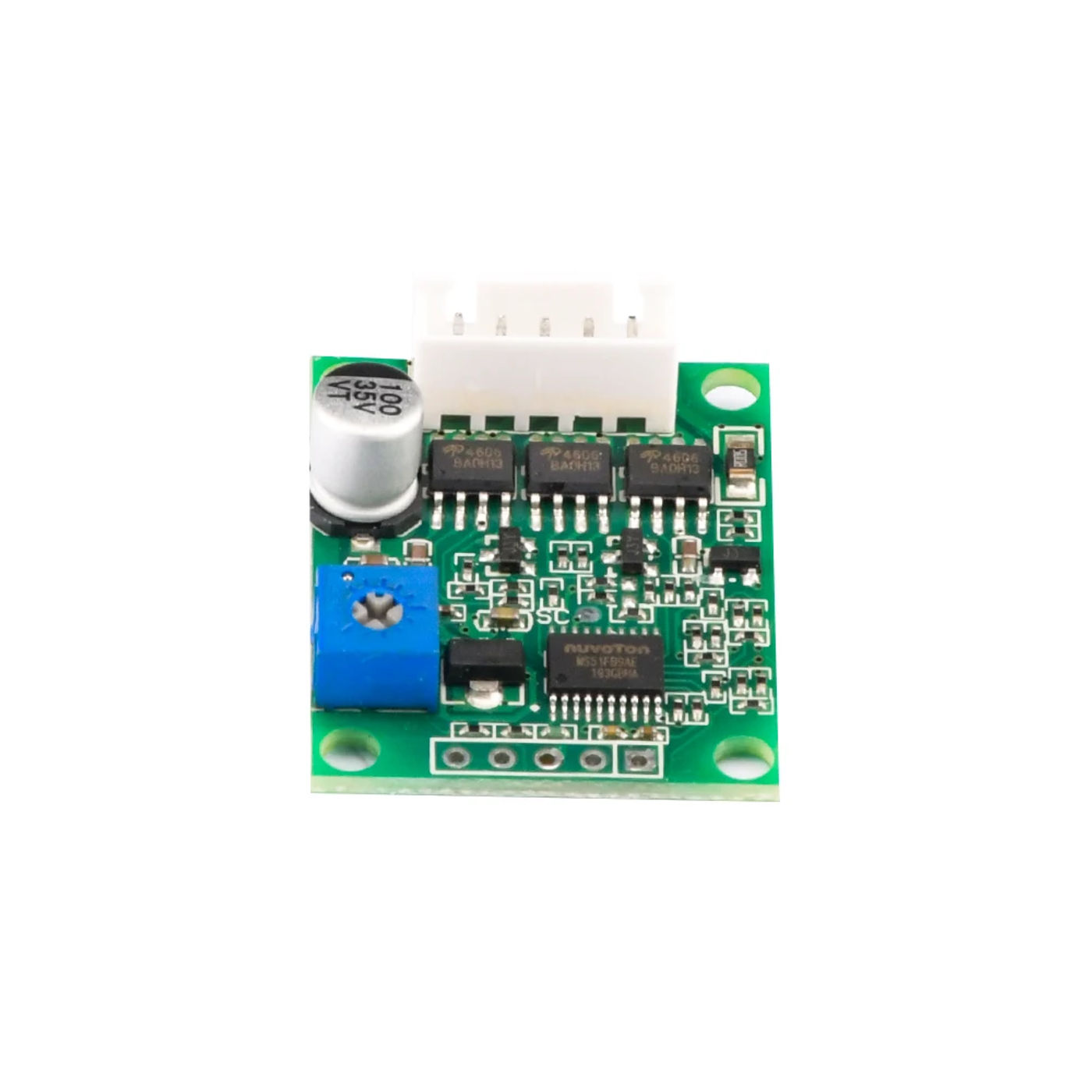

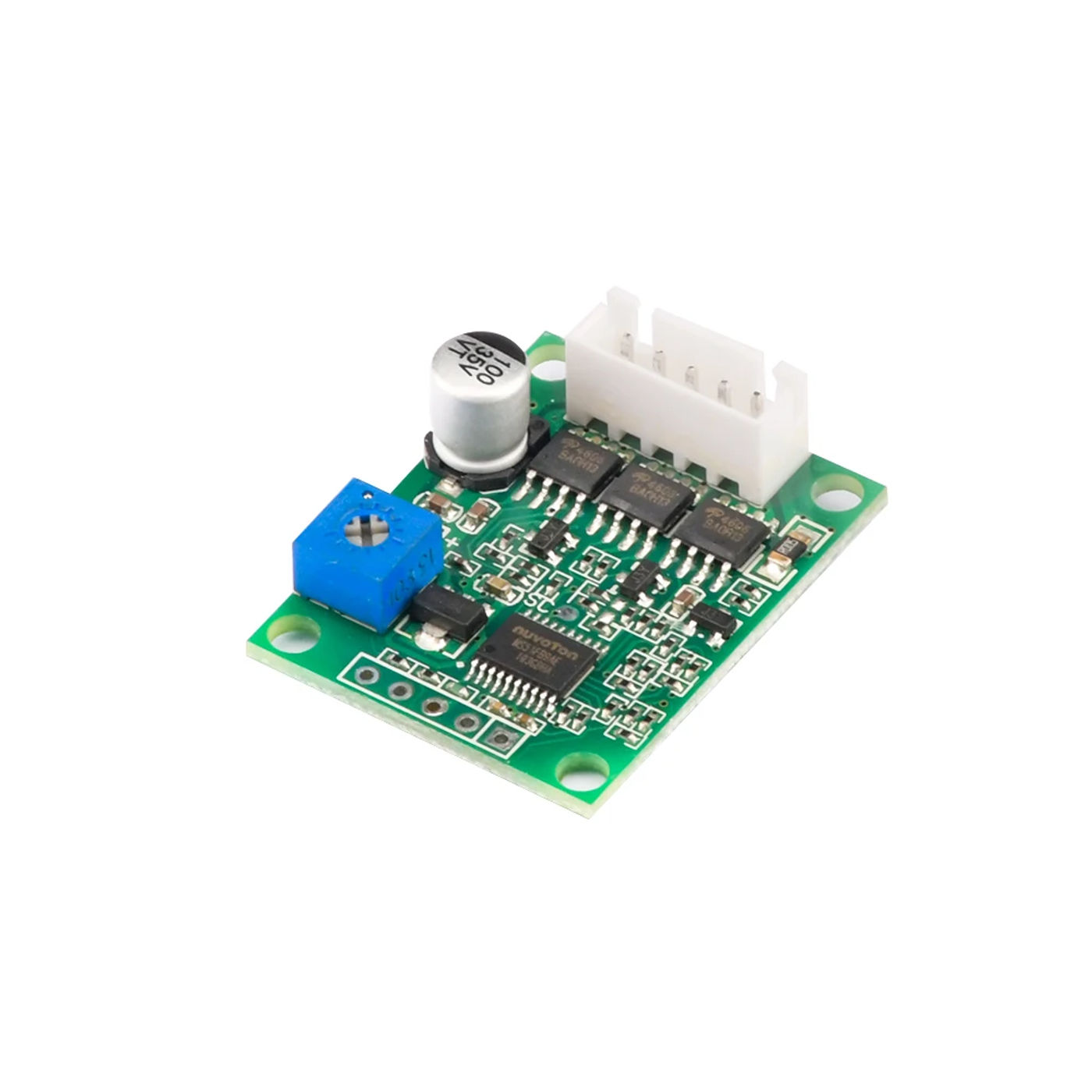

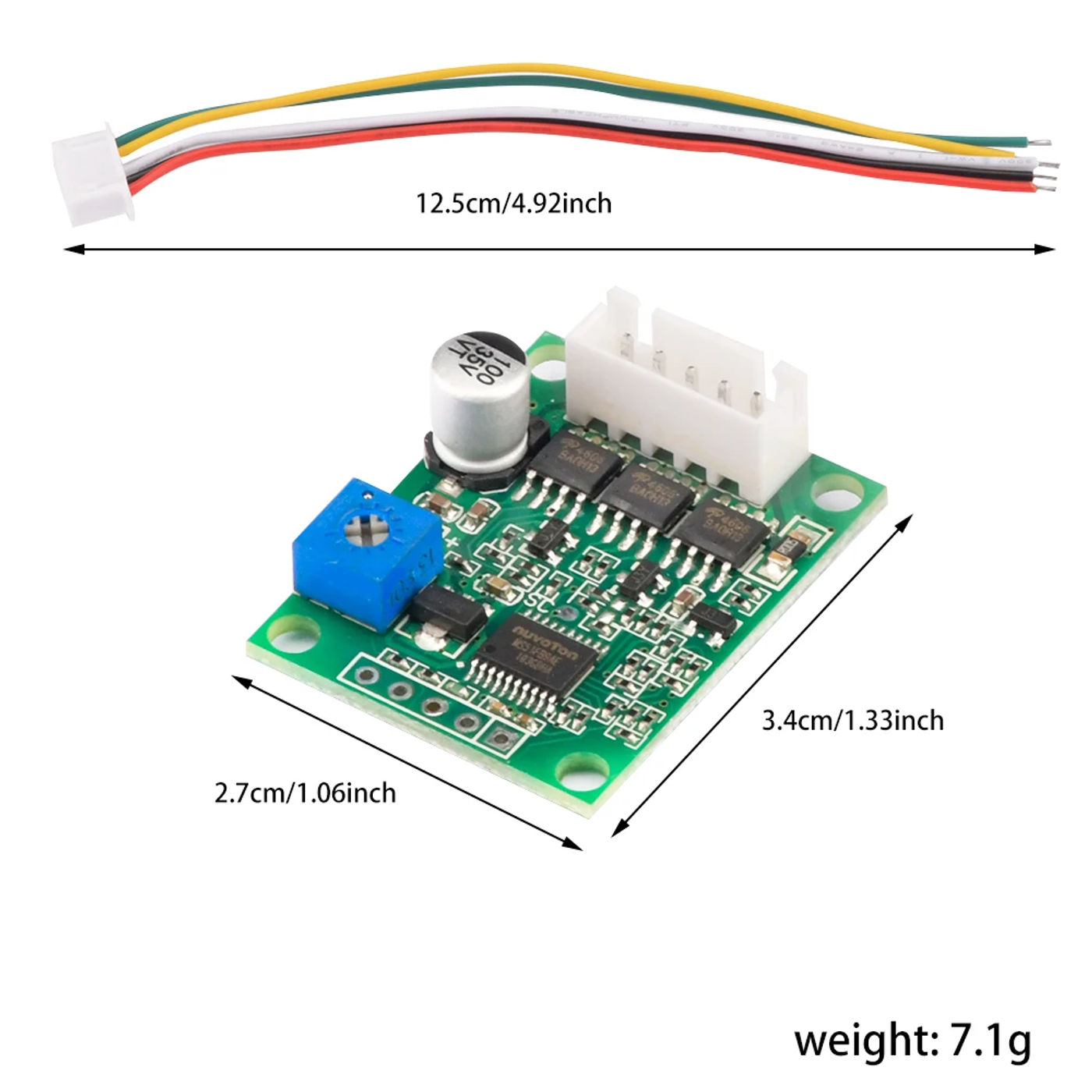

• DC6-20V 60W Motor Drive Controller BLDC Three-phase DC Brushless Hall Motor Driver Motor Board Support PLC 0-5V Product parameters: Product name: three-phase dc brushless Hall - free pressure Model: X10 (non-inductive) Operating voltage: 6-20V (limit 5-24V) Drive current: Max 3A Maximum speed: 224000 RPM(2-pole motor), 74000 RPM(6-pole motor), 40000 RPM(12-pole motor), 35000RPM(14-pole motor) Product size: size 34MM* width 27MM* peak 11MM Weight: X10 8g (wire included) Features: The driving force for the small strength fan brushless drive can also be embedded in other techniques specifically used for small area and small energy dc three-phase brushless motor air pump, water pump, oil pump, fan and commercial control electric gadgets, the default within the Angle of access is not suitable for high energy motor such as very long time full load current work, constructed with fan cooling Notes: 1 No fuse at the power supply circuit of the motherboard, built on their very own plus, the advantageous and negative energy delivery will trigger everlasting harm to some chips at the board (even if it's not 1 second) 2 When the motor is in regular operation, the motor is protected against stalling-off Please don't short-circuit manually when the module isn't in normal operation, because a brief circuit can cause the circuit to blow up 3 Do now not join the motor that is needless to say inconsistent with the voltage, recent and gear of the power module or far-off from every single other, to circumvent inexplicable "gratuitous" harm

•
•
•
•
•
