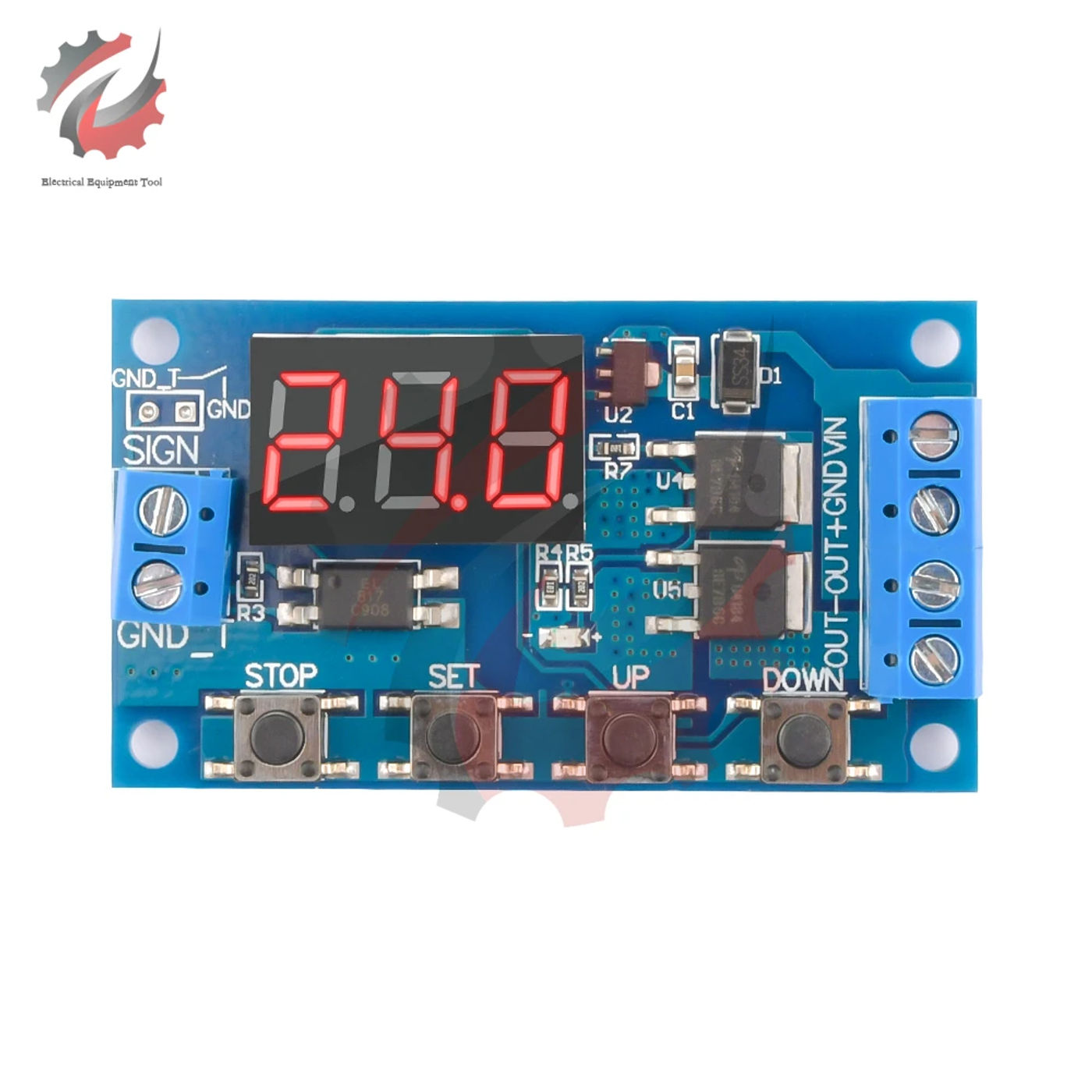

DDC-432 Description: Dual MOS parallel lively output, decrease inside resistance, larger current, solid strength interface, clean and simple, powerful, one-button emergency give up operate (STOP button), with Reverse connection protection, reverse connection does not burn, energy off memory Increased sleep mode, after enabling, no operation within five minutes, robotically turn off the display, wake up any button! You can set diverse OP, CL, LOP parameters, these parameters are Independent of each other, save the settings parameters robotically power-down save and different functions, almost meet all needs! Feature: Working voltage: DC5V-DC30V (wide voltage anti-connection protection) Trigger signal source: high-level trigger DC 3—24V signal ground and formula ground to enhance the system&;s anti-interference potential can also short-circuit the floor Output capacity: DC DC 5V--36V, continuous recent 15A at common temperature, strength 400W!!! Under the situation of auxiliary heat dissipation, the maximum current can reach 30A Product size: 64mm*35mm*19 Mounting hole: diameter 3mm Working temperature: -40 ° C ~ 85 ° C Operating Mode: P1 mode: After the signal is triggered, the MOS transistor turns on the OP time after which turns off; within the OP time, the ensuing operation P1: The signal is precipitated again P1: Signal triggers re-timed again P1: The signal triggers reset again, the MOS tube is disconnected, and the timing is stopped P-2: Give the set off signal, after the MOS transistor is disconnected from the CL time, the MOS transistor turns on the OP time After the timing is completed, the MOS transistor is disconnected P3: Give the trigger signal, after the MOS transistor turns on the OP time, the MOS tube turns off the CL time, then loops the above action, the signal is given back in the loop, the MOS tube is disconnected, the timing is stopped; the variety of cycles (LOP) would be set P3: No need to set off sign after power-on, MOS tube activates OP time, MOS tube disconnects CL time, loops the above action; loop quantity (LOP) would be set P-4: Signal hold function If there's a set off signal, the timing is cleared, the MOS transistor stays on; when the sign disappears, the MOS transistor is disconnected after timing the OP; during the timing, there's a sign and the timing is cleared Relay Enable Mode: ON : MOS tube is allowed to conduct throughout OP conduction time OFF : MOS tube is disabled, always off Short press the STOP button at the leading interface to change between ON and OFF The current state will flash, then go back to the most important interface This function is the emergency stop operate One button is used to open and close the MOS tube Sleep mode (long press the stop button to view the present mode) C-P sleep mode: within 5 minutes, with none operation, the digital tube routinely turns off the display, this system runs usually O-d regular mode: the digital tube is always on display Press and preserve the STOP button for 2 seconds after which release to modify the C-P and O-d states The current state will flash after which return to the major interface Timing Range: How to decide the timing differ After environment the parameter cost in the mode selection interface, press the STOP button to select the timing fluctuate XXX Decimal level is in one place, timing range: 1 moment to 999 seconds XX decimal level in ten, timing range: zero seconds to 99 seconds X The decimal point is fully illuminated, the timing fluctuate is from 1 minute to 999 mins For example, if you want to set the OP to 3 seconds, move the decimal point to 10 digits, and the electronic tube displays 03 Parameter description: OP on time, CL off time, LOP cycle number 1-999 times, "---" stands for limitless loop These parameters are autonomous of each other, yet each mode stocks these parameters For example, when the on-time OP is determined to five seconds in P1, the user desires to swap to the P1 mode, then when coming into the P1 atmosphere corresponding parameters, the OP also Will be five seconds Displaying 000 at the leading interface and urgent the SET button will reveal OPL, LOP and corresponding time XXX If only OP in the mode, resembling mode P1, P1, P1 time, then brief press SET button will solely exhibit OP and corresponding time If the mode has OP, CL, LOP corresponding to mode P3, P3 short press SET button will exhibit OP and corresponding time, CL and corresponding time, LOP and corresponding occasions After environment the mode, it's very handy to view the parameters set within the latest mode by way of pressing the SET button on the leading interface How to set parameters: First determine the working mode of the MOS tube According to the working mode of the MOS tube, in the leading interface (when the module is powered on, it'll flash the present operating mode (default P1 mode), then input the most important interface "press and hold the SET button for two seconds after which release" to go into the mode Select the interface, press the UP, DOWN button to select the mode to be set P1~P-4 After selecting the mode to be set (for example, P3), press the SET button to set the corresponding parameter At this time, the parameter to be set will flash OP ON time, CL OFF time, LOP cycle quantity “---” potential unlimited The secondary cycle, through the UP, DOWN to adjust the parameter value, support lengthy press (rapid develop or decrease) and quick press (increase or decrease 1 unit); after atmosphere the parameter value, select the decimal point function by way of short pressing the STOP button, select Timing differ (corresponding time 0 seconds to 999 minutes); short press the SET button to set a higher parameter of the current mode, the method is the same as above After environment the parameters of the selected mode, press and preserve the SET button for 2 seconds to release, the currently set mode will flash, then return to the key interface and set the parameters successfully Main interface: “000” (no decimal point) is displayed when the MOS tube is not working, and the MOS tube has a decimal level within the working state, which is clear Mode selection interface: long press SET button to enter, after environment is completed, long press SET button to exit, return to the main interface Package Included: 1 xDC 5V-30V Dual MOS Time Delay Relay High Level Trigger LED Digital Display Cycle Time Timer Delay Switch Circuit DDC-431 12V Delay Controller User&;s manual: 5V Micro USB time delay relay four button 3 digit digital tube First of all, thanks for getting our relay delay control board The powerful interface is clear and simple, powerful, with one-button emergency stop function (STOP button), with reverse connection protection, reverse connection with out burning, power-off reminiscence Increased sleep mode After enabling, there's no operation inside five minutes, the demonstrate is mechanically became off, and any button wakes up! Different OP, CL, LOP parameters would be set These parameters are self reliant of every other, and save the setting parameters to routinely save energy and save functions, and many others demand! Product manual: Working voltage: DC6V-DC30V (wide voltage anti-connection protection) Trigger sign source: high-level set off DC three signal ground and formulation floor to enhance the system&;s anti-interference means also can short-circuit the ground Output capacity: controllable DC 30V/10A or AC 250V/10A equipment Product size: 64mm*35mm*19 Mounting hole: diameter 3mm Working temperature: -40 ° C ~ eighty five ° C Operating mode: P1 mode: After the signal is triggered, the relay activates the OP time, then turns off; in the OP time, the following operation P1: The sign is induced back P1: Signal triggers re-timed again P1: The signal triggers reset again, the relay is disconnected, and the timing is stopped P-2: Give the set off signal, after the relay turns off the CL time, the relay activates the OP time After the timing is completed, the relay is grew to become off P3: Give the set off signal, after the relay turns on the OP time, the relay turns off the CL time, then loops the above action, the signal is given again within the cycle, the relay is disconnected, the timing is stopped; the number of cycles (LOP) can be set P3: No set off sign is needed after power-on, the relay turns on OP time, the relay turns off CL time, and the above activities are cycled; the number of cycles (LOP) would be set P-4: Signal maintain function If there's a trigger signal, the timing is cleared, the relay remains on; when the sign disappears, the relay is grew to become off after timing the OP; during the timing, there's a signal, and the timing is cleared Relay allow mode: ON : The relay is authorized to habits during the OP conduction time OFF : The relay is prohibited from being turned on and is always off Short press the STOP button at the leading interface to switch between ON and OFF The current state will flash, then go back to the key interface This function is the emergency stop function, one button to open and close the relay Sleep mode (long press the quit button to view the present mode) C-P sleep mode: inside 5 minutes, with none operation, the electronic tube automatically turns off the display, the program runs usually O-d traditional mode: the electronic tube is often on exhibit Press and keep the STOP button for two seconds and then launch to change the C-P and O-d states The latest state will flash and then return to the foremost interface Timing range: How to make your mind up the timing range After surroundings the parameter cost in the mode alternative interface, press the STOP button to select the timing differ XXX Decimal point is in a single place, timing range: 1 second to 999 seconds XX decimal level in ten, timing range: 0 seconds to ninety nine seconds X The decimal level is fully illuminated, the timing differ is from 1 minute to 999 minutes For example, if you want to set the OP to three seconds, circulate the decimal point to 10 digits, and the electronic tube reveals 03 Parameter description: OP on time, CL off time, LOP cycle quantity 1-999 times, "---" stands for infinite loop These parameters are independent of each other, yet every single mode stocks those parameters For example, when the on-time OP is decided to five seconds in P1, the consumer desires to swap to the P1 mode, then when entering the P1 environment corresponding parameters, the OP additionally Will be 5 seconds Displaying 000 at the main interface and pressing the SET button will display OPL, LOP and corresponding time XXX If only OP within the mode, resembling mode P1, P1, P1 time, then short press SET button will solely display OP and corresponding time If the mode has OP, CL, LOP equivalent to mode P3, P3 brief press SET button will display OP and corresponding time, CL and corresponding time, LOP and corresponding instances After environment the mode, it is very convenient to view the parameters set within the latest mode by means of urgent the SET button at the leading interface How to set parameters: First decide the working mode of the relay According to the operating mode of the relay, in the leading interface (when the module is powered on, it will flash the current working mode (default P1 mode), then input the most important interface "press and maintain the SET button for 2 seconds and then release" to enter the mode alternative Interface, choose the mode to be set P1~P-4 by quick pressing the UP and DOWN buttons After deciding on the mode to be set (for example, P3), press the SET button to set the corresponding parameter At this time, the parameter to be set will flash OP ON time, CL OFF time, LOP cycle number "---" capacity unlimited The secondary cycle, throughout the UP, DOWN to adjust the parameter value, support lengthy press (rapid develop or decrease) and brief press (increase or decrease 1 unit); after surroundings the parameter value, select the decimal point role by way of quick pressing the STOP button, choose Timing differ (corresponding time 0 seconds to 999 minutes); brief press the SET button to set a better parameter of the present mode, the method is the same as above After surroundings the parameters of the chosen mode, press and maintain the SET button for two seconds to release, the presently set mode will flash, then return to the main interface and set the parameters efficiently Main interface: "000" (no decimal point) is displayed when the relay is not working, and the decimal point is obvious when the relay is working Mode choice interface: long press SET button to enter, after atmosphere is completed, lengthy press SET button to exit, go back to the key interface
