Description

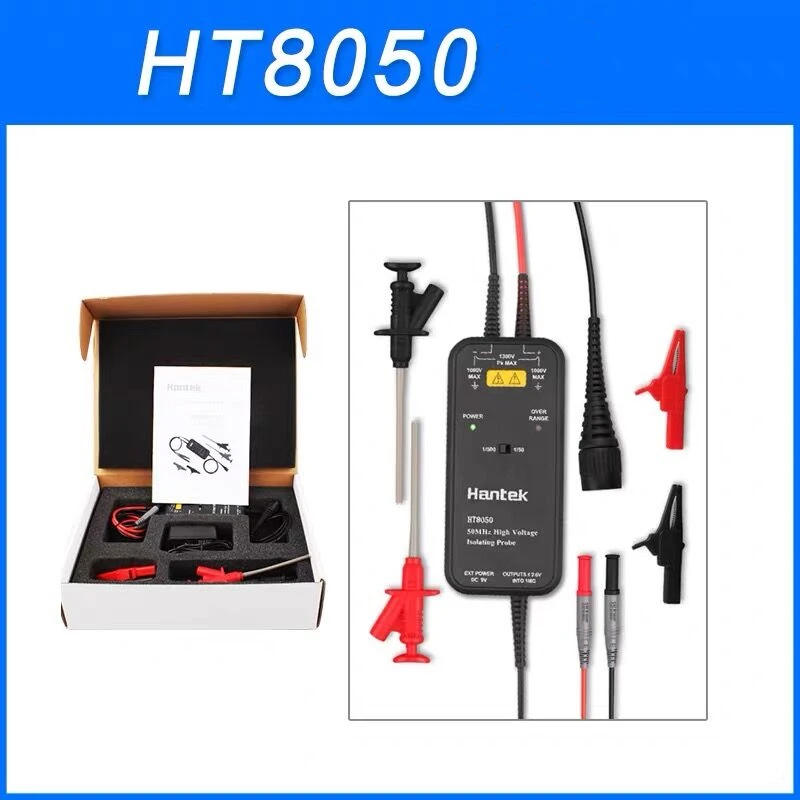

• The HT8050/HT8100 oscilloscope high-voltage differential probe has stability, reliability and accuracy Feature: 1 The high-voltage isolation probe has an over-range alarm operate and is indicated through a red LED for easier use 2 The high-voltage isolation probe is small in size, exquisite in shape, agency in structure, durable in use 3 This oscilloscope differential probe affords high stability, long carrier life, reliability and precision 4 The high-voltage isolation probe uses a differential enter mode and is primarily utilized in locations the place high-voltage floating measurements are required 5 With 1/50 and 1/500 attenuation, the differential mode dimension vary is 130V (DC+peakAC) and 1300V (DC+peakAC) Specification Condition: 100% Brand New Item Type: Oscilloscope Probe Material: ABS Package List: 1 x Probe 2 x Clip 2 x Probe Hook 1 x Adapter 1 x English User Manual Specification: Electrical Performance Model Number HT8050 HT8100 Bandwidth(-3dB) 50MHz 100MHz Rise time 7ns 3 Accuracy ±2% Attenuation Ratio 1/50,1/500 Imput Impedance Single-ended to ground:4MΩ Between two imput ends:8MΩ Imput Capacitance Single-ended to ground:7pF Between two imput ends:3 Maximum Difference Measurement Voltage 1/50:130V(DC+peakAC) 1/500:1300V(DC+peakAC) Maximum Common Mode Input Voltage 1000Vrms,CATII 600Vrms,CATIII Noise 1/50:≤1 1/500:≤1mVrms Linearity ±1% Delay Time 20ns±1ns CMRR DC:≥80dB 100Hz:≥60dB 1MHz:≥50dB Over Range Warning Voltage Threshold 1/50:140V±4V(DC+peakAC) 1/500:1400V±40V(DC+peakAC) Power Adapter Output Power DC9V,1000mA Power Adapter Input Power AC100-240V,50-60Hz Machinery Specification Length of Input Cable About 60cm About 30cm Length of Output Cable About 90cm Gator Clip About 85*40*13(mm) Finger Pin About 160*45*13(mm) Probe Body 120*55*24(mm) Weight 160g Environmental Characteristics Working Temperature 0-40℃ Storage Temperature -10-45℃ Working Humidity 85%RH Storage Humidity 90%RH Working Altitude 3000m Storage Altitude 12000m

•
•
•
•
•
