Description

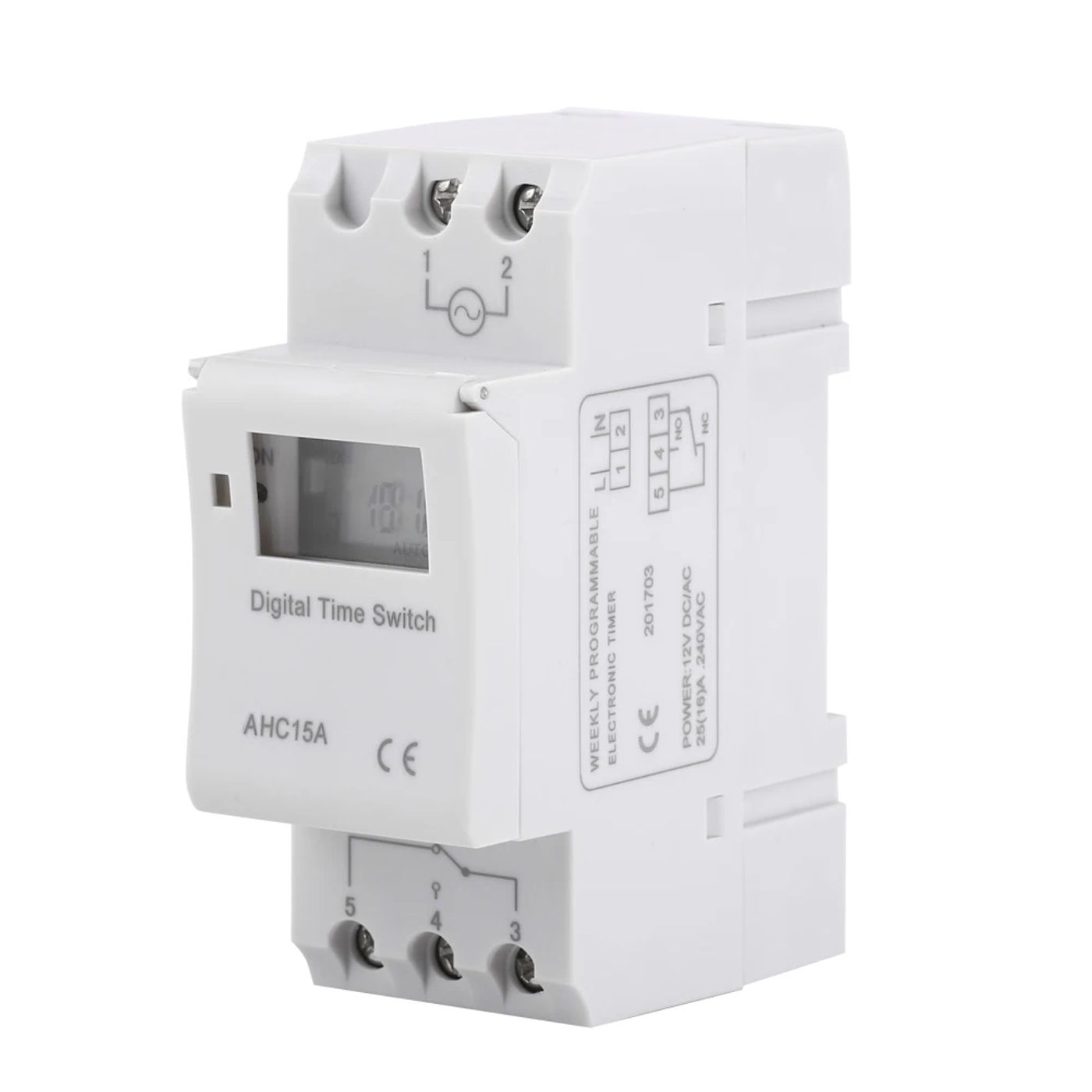

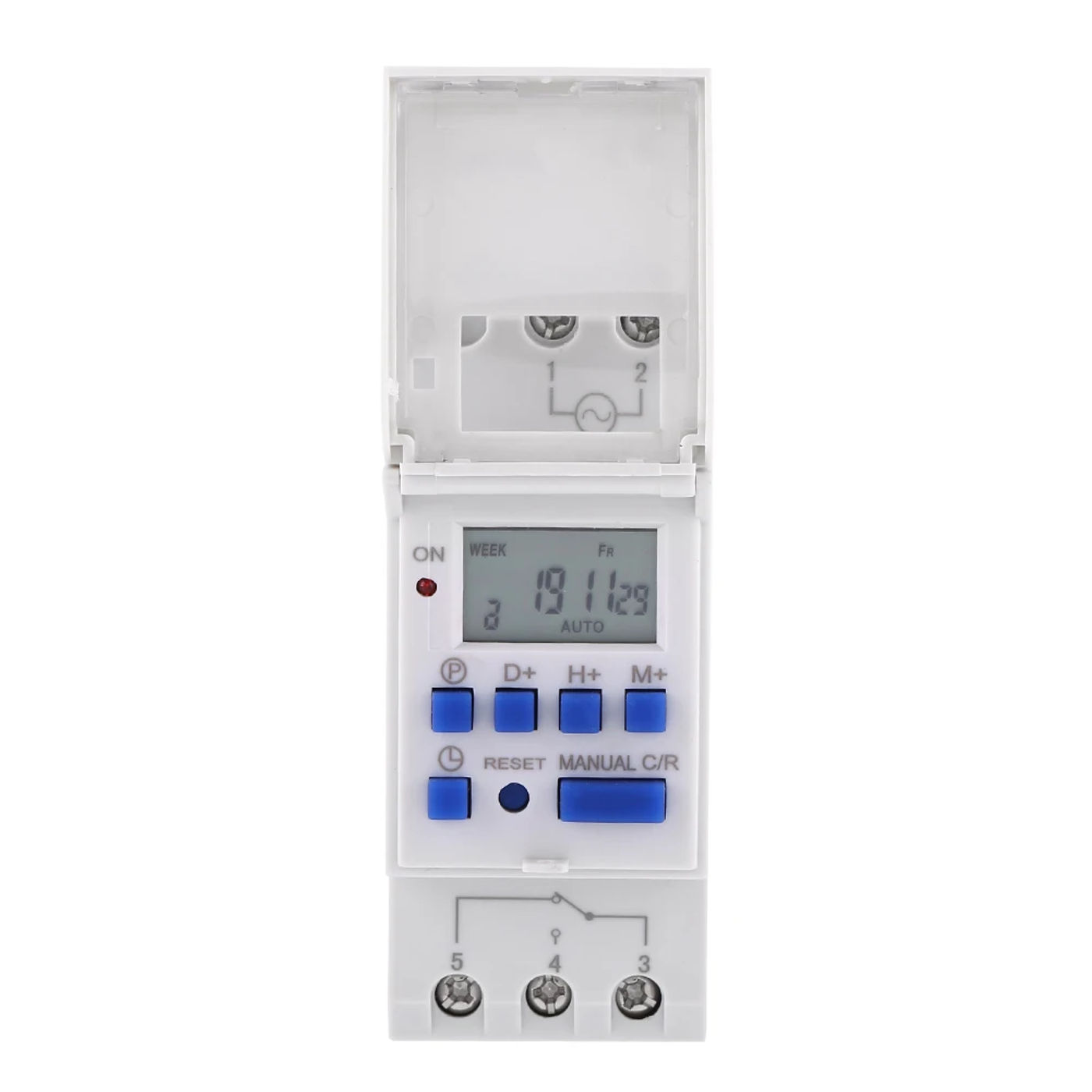

• Features Advanced pre‑setting one week earlier than Digital electronics total objective timer with every day and weekly applications Repeat packages with sixteen ON and OFF settings To‑the‑minute surroundings accuracy LCD exhibits genuine time to Hour/Minute and ON/AUTO/OFF Specification Description: This timer might computerized turn on/off all kinds of electrical equipment in step with the time consumer set It has a integrated rechargeable battery and a business grade chip With high accuracy and strong anti-interference ability, the timer is superb for controlling street lamps, neon lamps, production equipment, radio and tv and plenty of different domestic home equipment Features: Advanced pre-setting one week earlier than Digital electronics total objective timer with day-after-day and weekly programs Repeat applications with sixteen ON/OFF settings To-the-minute atmosphere accuracy LCD exhibits real time to Hour/Minute and ON/AUTO/OFF DIN rail installation, DIN rail is not incorporated Specifications: Input Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V(Optional) Current: 15A Power: 3000W Contact Voltage Rating: AC 220V(50/60Hz) Switching Capacity: Resistive 16A On/Off Operation: 16 on and off(manual/auto) Display: LCD Power: <4W Error: ≤2s/day Mounting Method: DIN rail(not included) Bound: 1 min to 168 hours Operating Temperature: -10℃ to 55℃ Size: 86 x 36 x 65mm / three x 1 x 2" Quantity: 1 Battery: 1 40mah NiMH battery (built in) Instruction: 1, When you utilize the timer for the 1st time, input AC and fee the inbuilt battery please, then press reset button 2, The timer is at 24-hour mode as default Press and preserve "time" button(bottom left, next to "reset") for five seconds until it exhibit "AM" to set to 12-hour mode Press and keep back "time" button for 5 seconds to set back to 24-hour mode Programming: Step Button Programming 1 Press P Setting"1 ON" time(display 1 on) 2 Press D+ Select days of week(if you like identical set for every day, you would not have to press this button) three Press H+/M+ Set hours and minutes 4 Press P Setting "1 OFF" time(display 1 off) five Press P Select days week(If you like identical set for every day, you would not have to press this button) 6 Press H+/M+ Set hours and minutes 7 Repeat step 2 to six Set other on/off time eight Press "time"(bottom left, next to "reset") End Package Includes: 1 x Timer 1 x English Manual How to Use Package List Note VideoSubtitles FAQ Q1: The product is properly linked to the circuit, the electronic clock works properly, and the clock Settings are as superb because the program Settings The issue is that the product won&;t turn on even with an on/off/automatic switch" The "power on "LED lighting fixtures up solely (very briefly) when the reset button is pressed It won't power the relay at some other time How to take care of it? Answer: The product atmosphere is wrong, after the timing is good, adjust to the automatic file auto, you can; The mild won&;t cross on Q2: Can the product be reset with one click? Answer: Yes, the clock id button in the lower left nook of the product could be reset after urgent

•
•
•
•
•
