Description

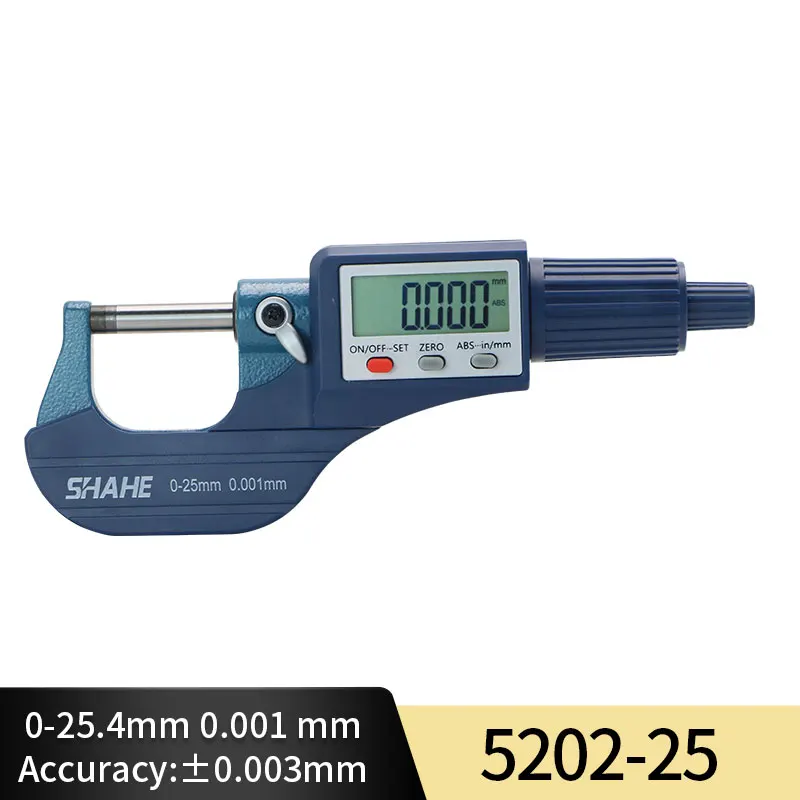

• Type 1:5202-25 Digital Outside Micrometer zero Characteristic and Function 1 anvil,durable 2 LCD display,clear display screen 3 Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use 4/absolute measurement interchange at any position(ABS function) five strength off after 5 mins state of no activity Specification Measuring range : 0-25 mm Resolution:0 mm Accuracy:±0 mm Battery: 3V CR2032(not included) Measuring Force:5-10N Power intake :≤20uA Storage temperature :-20-60°C Operation temperature:0-40°C provider humidity: ≤ 80% Button operate 1 ON \ OFF SET: ONO FF and set button Press the button briefly, swap the machine on and off, press this button for a long time and set the zero to "0,50,75" "Hold down the button to alternately display several zero values Key when one of the zero values is displayed The zero value is the at present displayed value 2 ZERO: Zero button Press the button The data might be used as default starting cost (0,50,75) 3 ABS in / mm: Relative and absolute scale conversion key, metric and inch conversion key Press this button briefly to perform the absolute size and the relative size conversion "In" and small font "5", it will be displayed in inches Type 2:5203-25 Digital Outside Micrometer zero IP65 Waterproof Characteristic and Function 1 Waterproof and dustproof 2 LCD display,clear display screen 3 Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use 4/absolute size interchange at any position(ABS function) five maintain 6 Satin-chrome scale 7 quality heat insulation grip 8 faces is made of tungsten carbide 9 force ratchet on thimble 10 in plastic case Specification Measuring differ : 0-25 mm Resolution:0 mm Accuracy:±0 mm Battery: 3V CR2032(not included) Measuring Force:5-10N Power consumption : ≤ 20uA Storage temperature :-20-60°C Operation temperature:0-40°C Type 3:5204-25 Digital Outside Micrometer 0 with Scale Line Characteristic and Function 1 LCD exhibit and cursor scale line 2 carbide measuring head three Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use 4/absolute size interchange at any position(ABS function) 5 Hold operate 6 strength off for non-response within five minutes; Specification Measuring fluctuate : 0-25 mm Resolution:0 mm Accuracy:±0 mm Battery: 3V CR2032(not included) Measuring Force:5-10N Power intake :≤20uA Storage temperature :-20-60°C Operation temperature:0-40°C service humidity: ≤ 80% Key operation ZERO/ABS: relative and absolute size conversion keys and reset key Short press to expose "INC" for relative and absolute measurementconversion Long press to reset information in / m m : metric and inch conversion keys HOLD/SET: information retention and atmosphere keys Short press: the present dimension records remains locked When in the 0 position, lengthy press to set 0 position value to "0,25,50,75"; press and hold to let those values be displayed in turn; release the click when the necessary value is displayed, and this zero role cost is the worth currently displayed ON/OFF: power delivery change

•
•
•
•
•
