Description

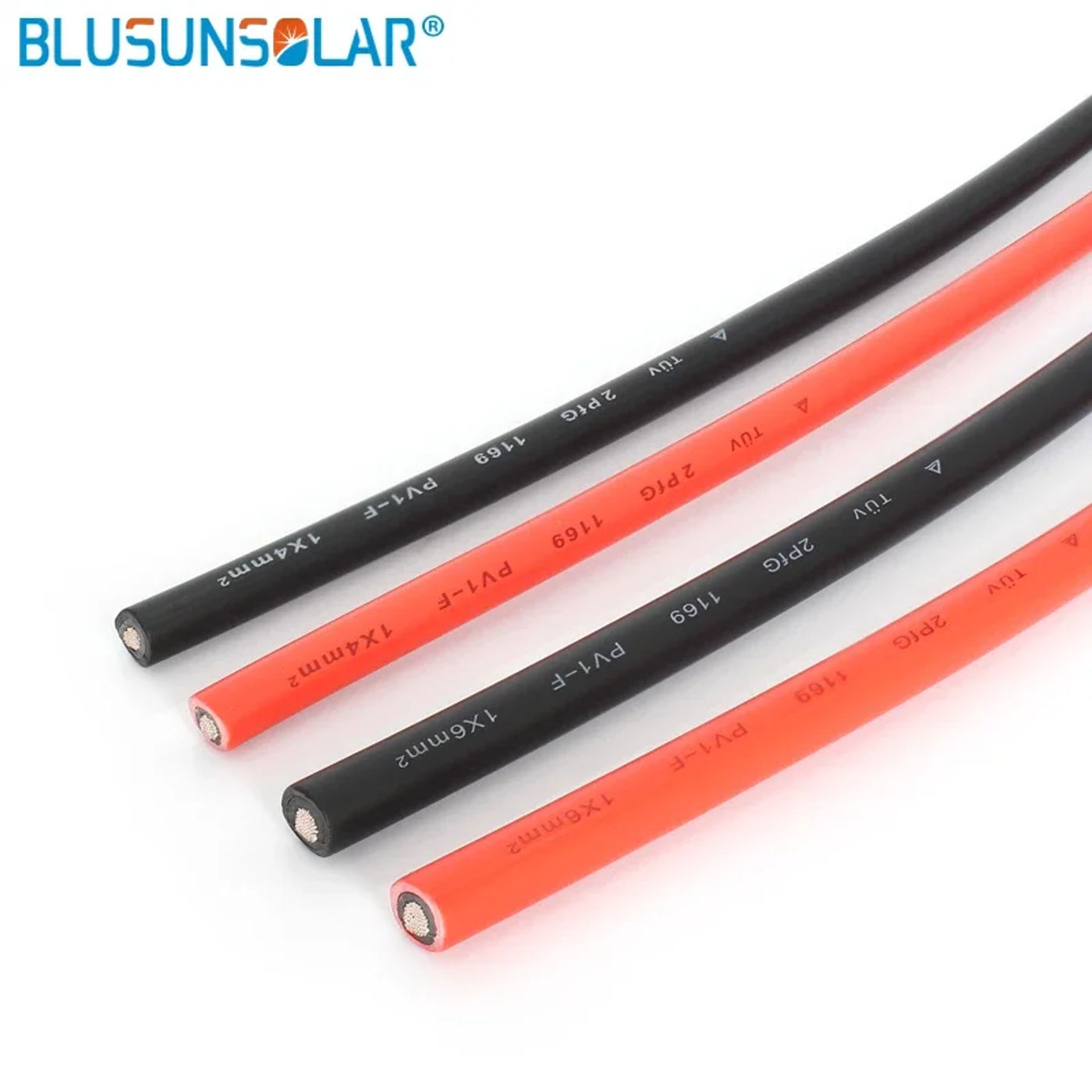

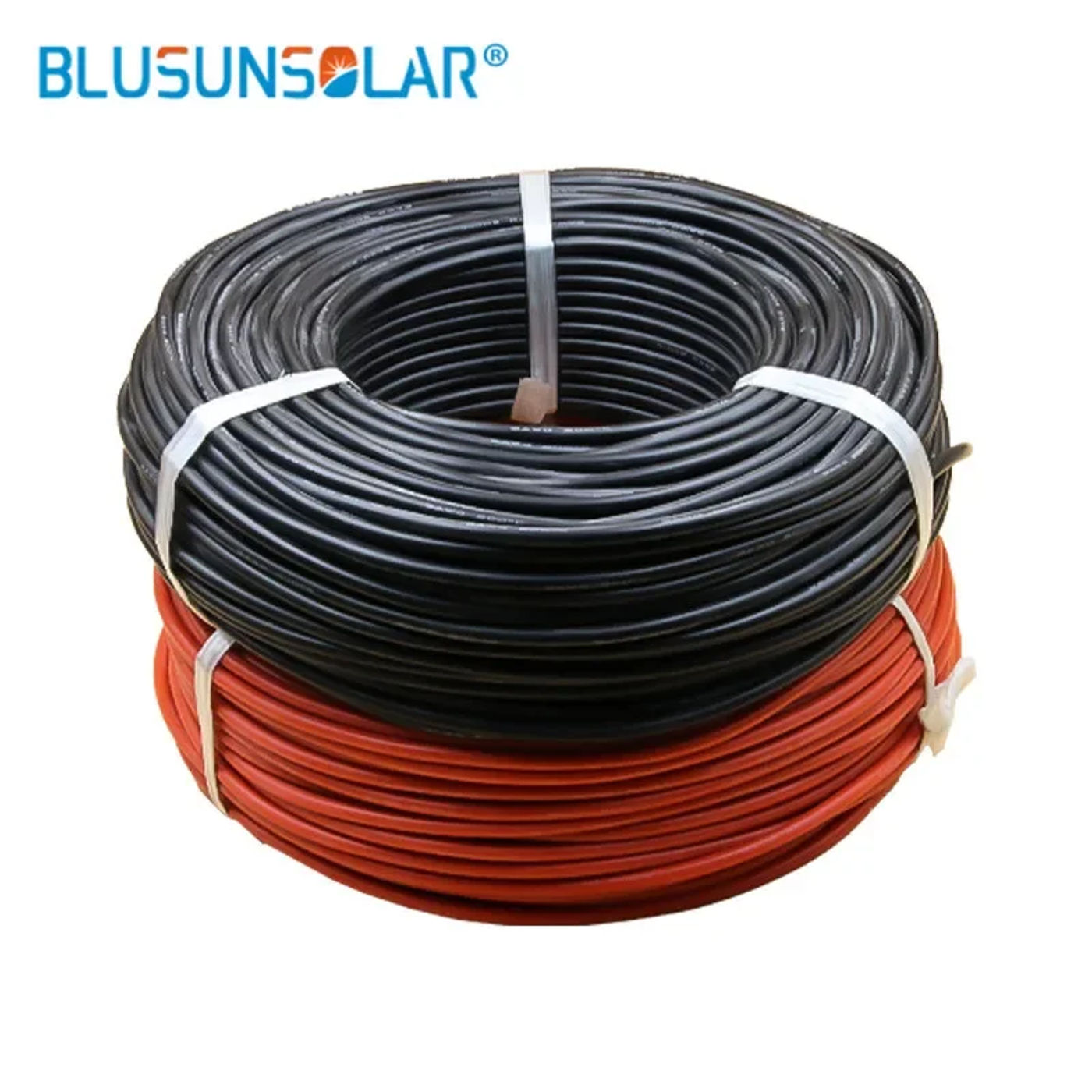

• Red+Black Solar Cable Photovoltaic Wire 1500V 12/10 AWG 4mm2 6mm2 Cable Tinned Copper XLPE Jacket for PV Panels TUV Certifiction Products Packing: 1m 4mm2: 1m Black+1m Red 5m 4mm2: 5m Black+5m Red 10m 4mm2: 10m Black+10m Red 1m 6mm2: 1m Black+1m Red 5m 6mm2: 5m Black+5m Red 10m 6mm2: 10m Black+10m Red 20m 6mm2: 20m Black+20m Red20m 4mm2: 20m Black+20m Redtwins 4mm2 10m=2*4mm 10mtwins 6mm2 10m=2*6mm 10m Products Description:1,Conductor: Stranded, tinned copper,2,Inner insulation: XLPE3,Outer jacket: PVC4,Color: Black and RedTechnical specification:1,Nominal voltage: 600/1000V AC2,Test voltage: AC 2 KV3,Temperature rating: -40°C~90°C moist or dry,4,Ambient temperature :> 25 years (TUV) -40°C~ + 90°CMaterial propertied/standards:1,Fire performance: IEC 629302,Smoke emission: IEC 629303,Low fireplace load: DIN 519004,Approvals: TUV & ULAdvantages:1,Electron- beam cross-linked compounds2,UV,ozone and hydrolysis resistant3,High temperature resistant, the supplies do not melt or flow4,Good cold flexibility5,Very lengthy service life > 25 years at 90°C6,Compatible to all popular connectors

•
•
•
•
•
