Description

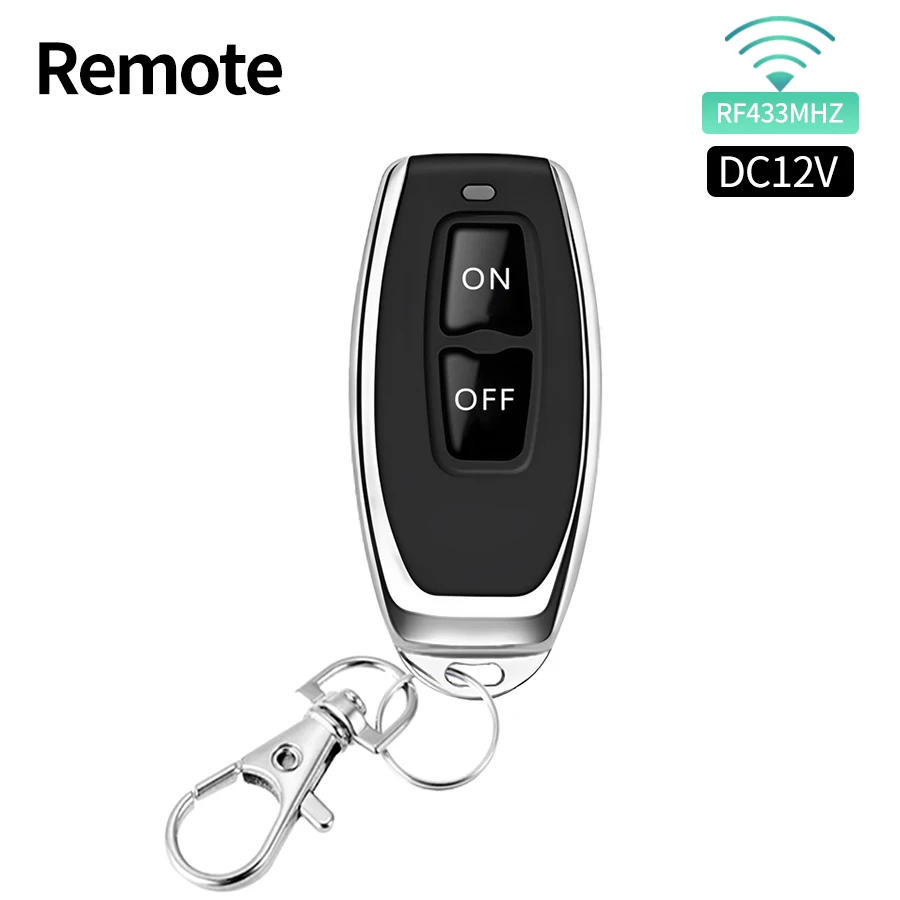

• Specification:Model Number: 433Mhz Wireless Switch Working Voltage: DC12VMax: 24mAStandby Current: <10mAMax. Load: ≤10ATransmit Power: -105dBmFrequency: 433 MHzModulation: ASKWorking Temperature:-20-70℃Material: ABSWorking Mode: Momentary/Toggle/Latched/DelaySize: 34*29*17(Without case)Weight: 14 (Without case)How To Use:1 modePress the tutorial key of the receiver once；and then press the A/ON button of the remote；The indicator mild flash, indicating that the educational is successful；Press the button, the sunshine will flip on; launch the button, the light will turn off2 mode (self-locking)Press the educational key of the receiver twice；and then press the A/ON button of the remote；Toggle (self-locking) mode studying is complete3 mode (internlock)Press the training key of the receiver three times；press the A/ON button of the remote after which press the B/OFF button；Button A/ON turn on the light, and the button B/OFF flip off the light4 functionPress the training key of the receiver 4 times；and then press the A/ON button of the remote；The mushy will routinely flip off after 5 seconds；If you wish a protracted delay, you might press the educational key a couple of extra times throughout pairing, and every further press will delay for 5 seconds5 codeKeep press the educational key of the receiver；The indicator mild flashes, indicating that the clearing code is profitable

•
•
•
•
•
