Descriptions

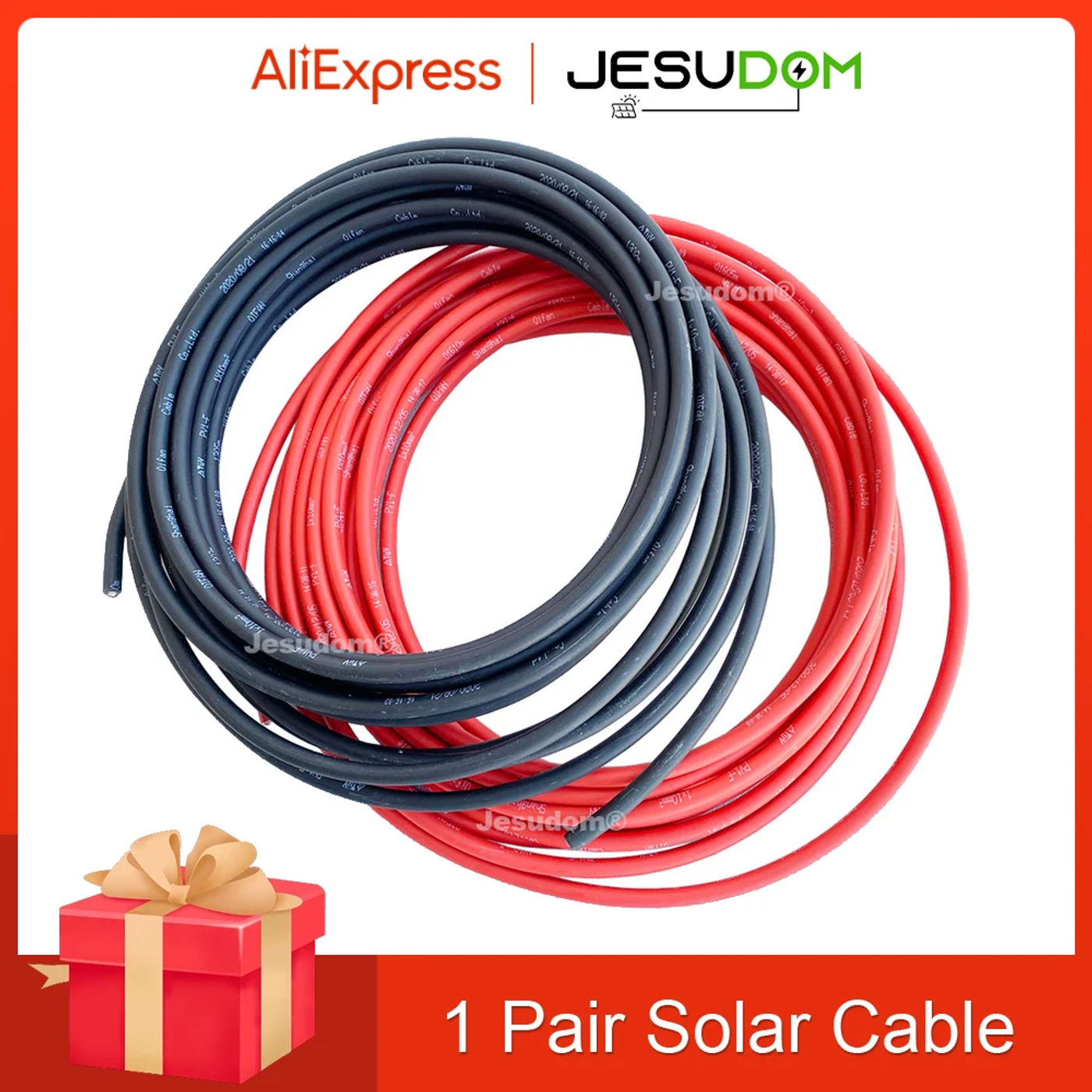

• 1Pair 6mm² / 4mm² / 2 mm² 10/12/14AWG 7/8/10m Black+Red Solar PVC Insulated Electrical Connector Cables PV Panel Connect Products Description:1,Conductor: Stranded, tinned copper,2,Inner insulation: XLPE3,Outer jacket: PVC4,Color: Black and RedTechnical specification:1,Nominal voltage: 600/1000V AC2,Test voltage: AC 2 KV3,Temperature rating: -40°C~90°C moist or dry,4,Ambient temperature :> 25 years (TUV) -40°C~ + 90°CMaterial propertied/standards:1,Fire performance: IEC 60332-12,Smoke emission: IEC 61034; EN 50268-23,Low fireplace load: DIN 519004,Approvals: TUV & ULAdvantages:1,Electron- beam cross-linked compounds2,UV,ozone and hydrolysis resistant3,High temperature resistant, the materials don't melt or flow4,Good cold flexibility5,Very lengthy provider existence > 25 years at 90°C6,Compatible to all common connectors Solar Cable Structure : Nominal Cross Soctional Area of the Conductor (mm2) 2 four 6 10 sixteen 25 35 Number of wires in conductor: 35 56 eighty four seventy seven 119 189 266 Diameter of wires in conductor(mm): 0± 0 0± zero 0± zero 0± zero 0± zero 0± zero 0± 0 Min thickness of insulation (mm): zero zero zero 0 zero 0 0 Min thickness of Sheath (mm): zero zero zero zero zero zero 0

•
•
•
•
•
