Descriptions

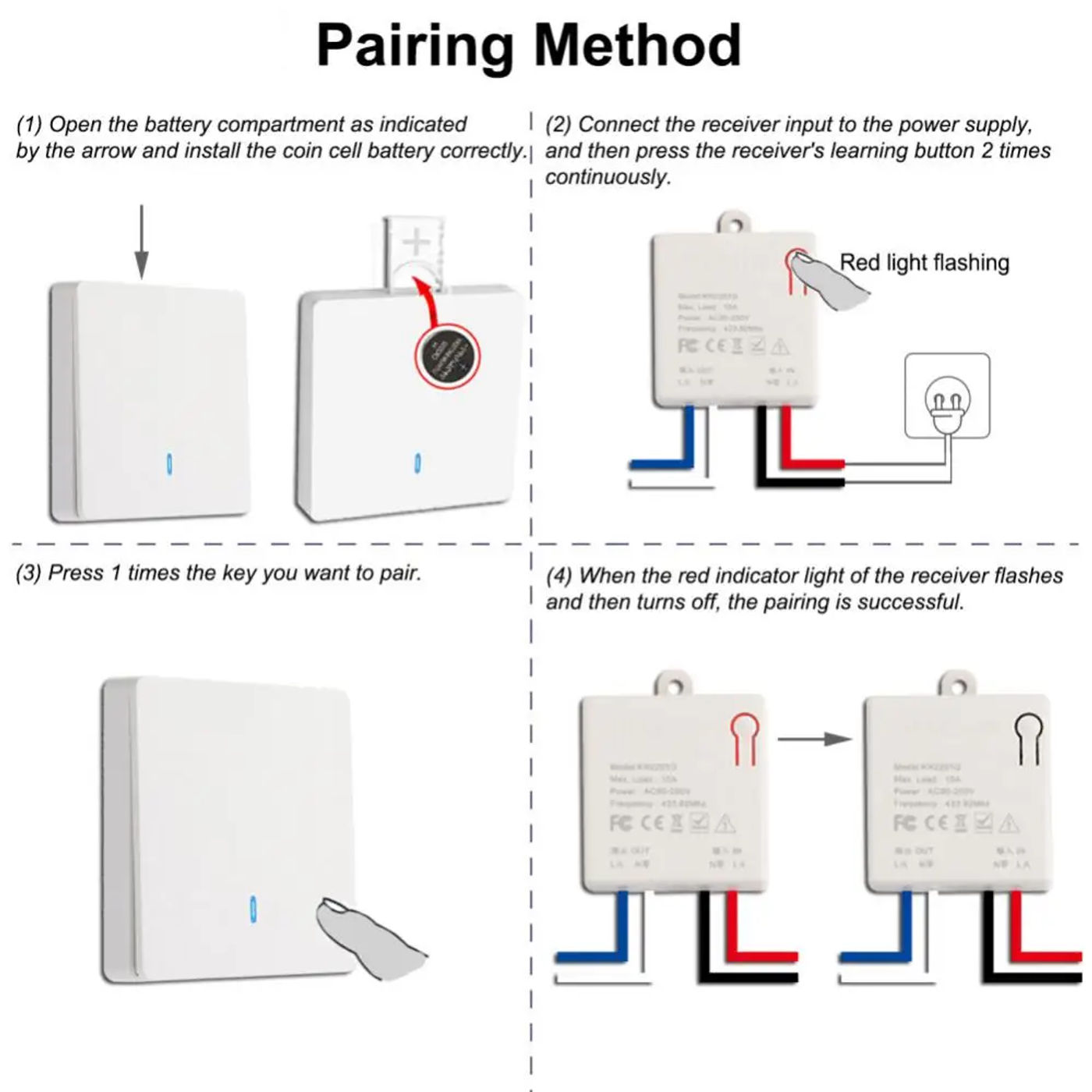

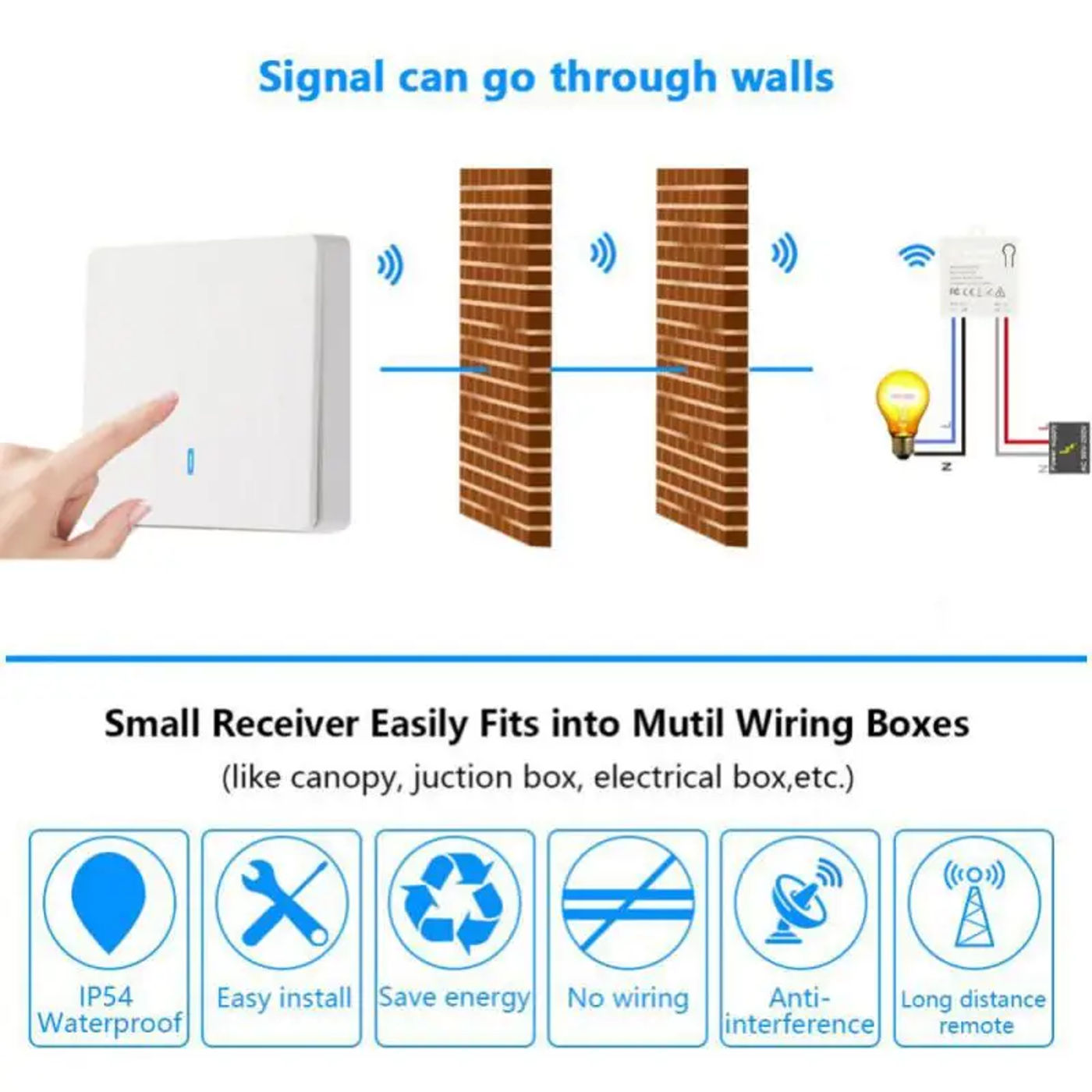

• 433Mhz Wireless Switch Smart Switch RF Wall Panel Switch Universal Breaker 90V-250V RF Relay Receiver Led Light Lamp Fan Switch Description: Working voltage: AC 90V~250V Quiescent Current: <5MA Max current: 10A Max load: 2200W RF frequency: 433-433 Working temperature: -30~ 80 Receiving Sensitivity: >108 dbm Amount of storage distant controls: 25 items Support encoding: 1527 Leaning code,2262 constant code RF Operating mode: ASK superheterodyne wi-fi reception Receiving range: Open field is greater than 50 meters,Indoor partition wall 15 meters Wall substitute size: 86 usual size Switch battery: 1 pcs CR2032 coin cellular battery (not include) Specifications: Easy to install RF Output of Good Stability Easy pairing （1）Open the battery compartment as indicated by way of arrow and establish the coincell battery corectly. （2）Connect the receiver enter to the flexibility supply, then press the receiver's learning button 2 instances continuously. （3）Press 1 instances the distant panel substitute key you choose to pair. （4）When the crimson indicator tender of the receiver flashes and then turns off, the pairing is successful. Reset Press the training button (on the Receiver) 8 times. The gift information can be deleted succeed. Package Included: 1*KR2201G-4 433Mhz Receiver Module

•
•
•
•
•
