Descriptions

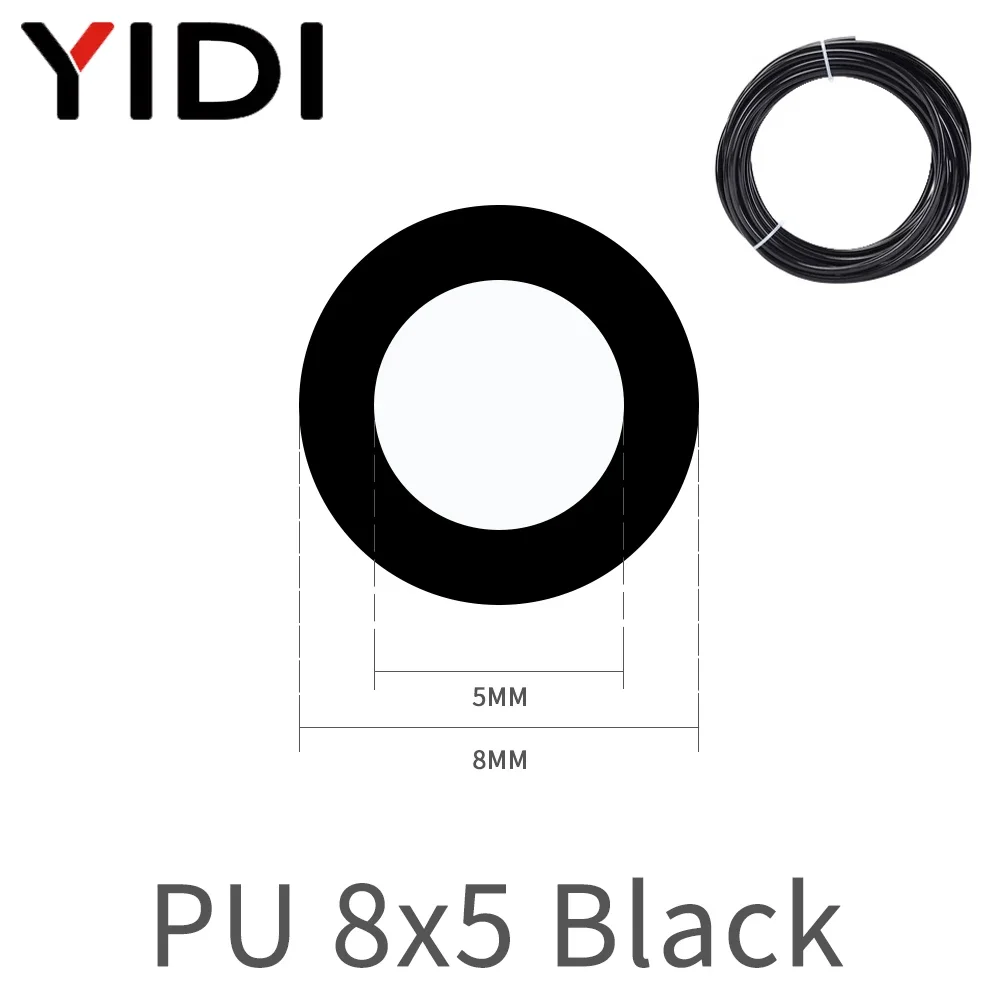

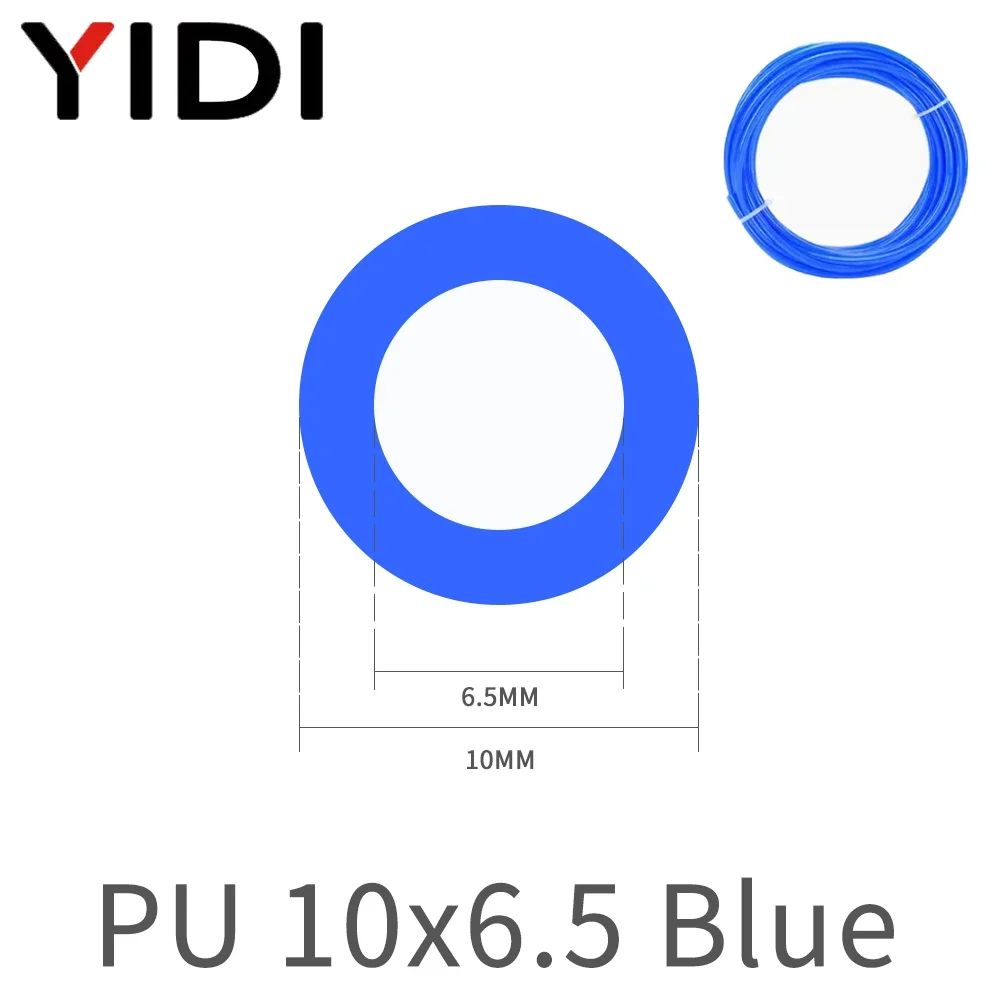

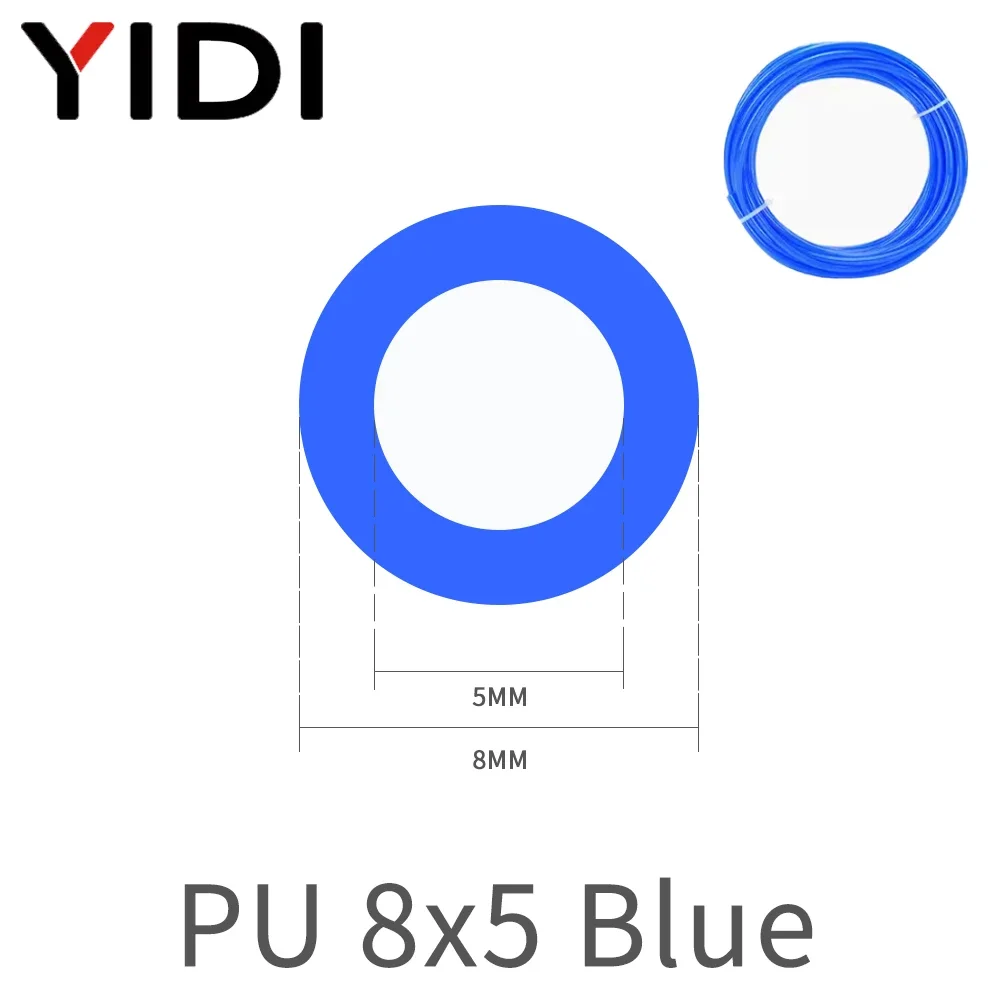

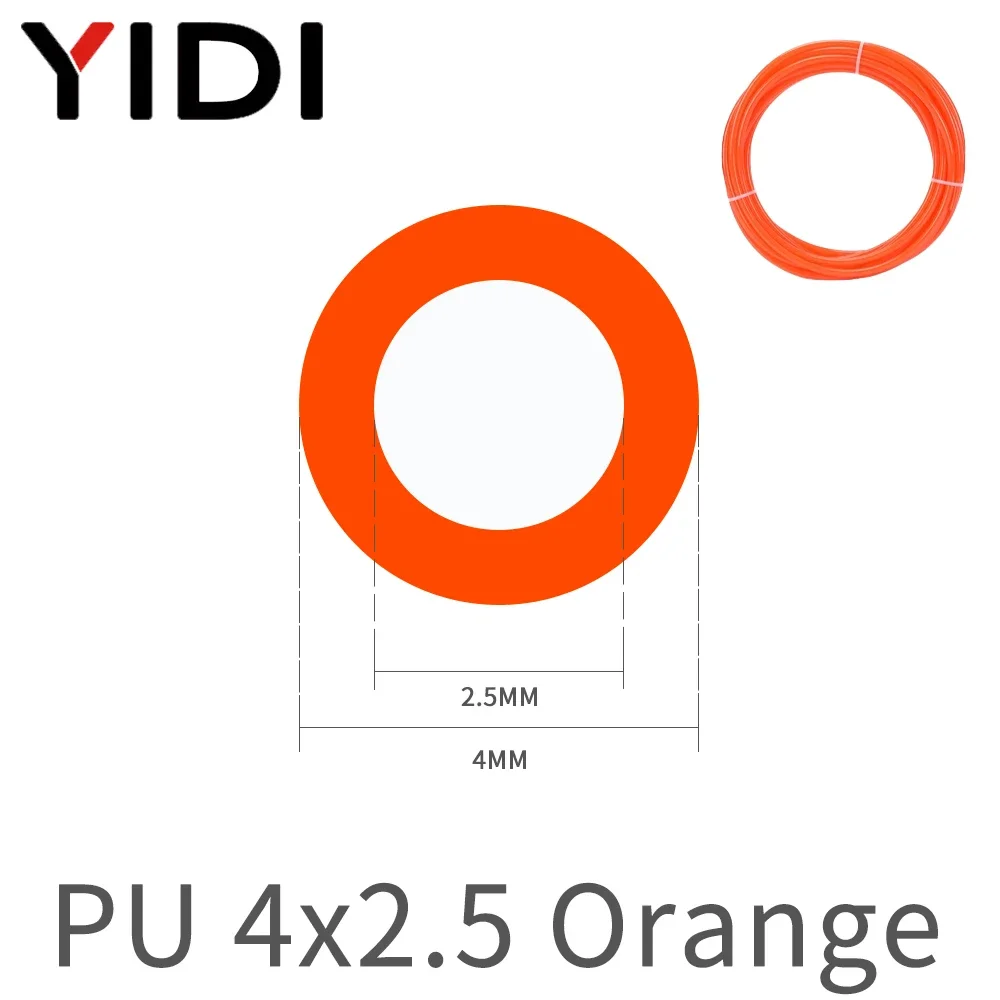

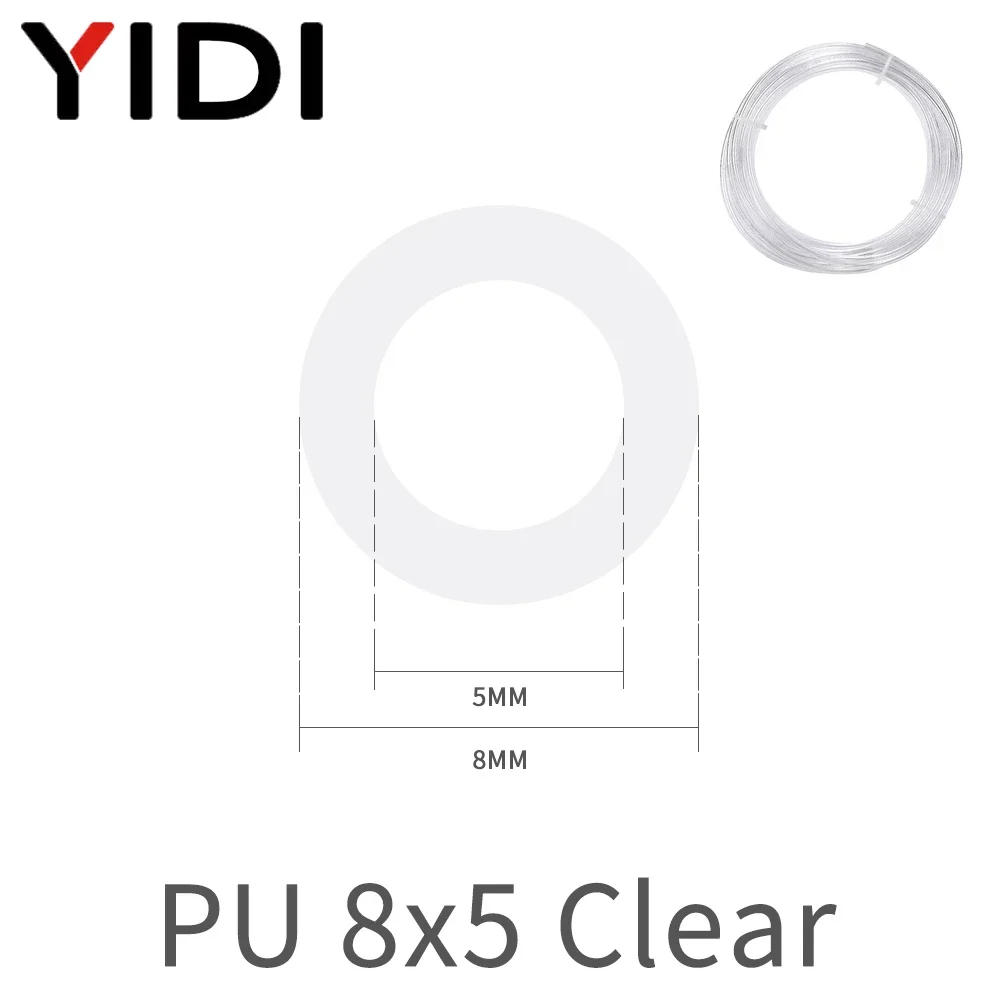

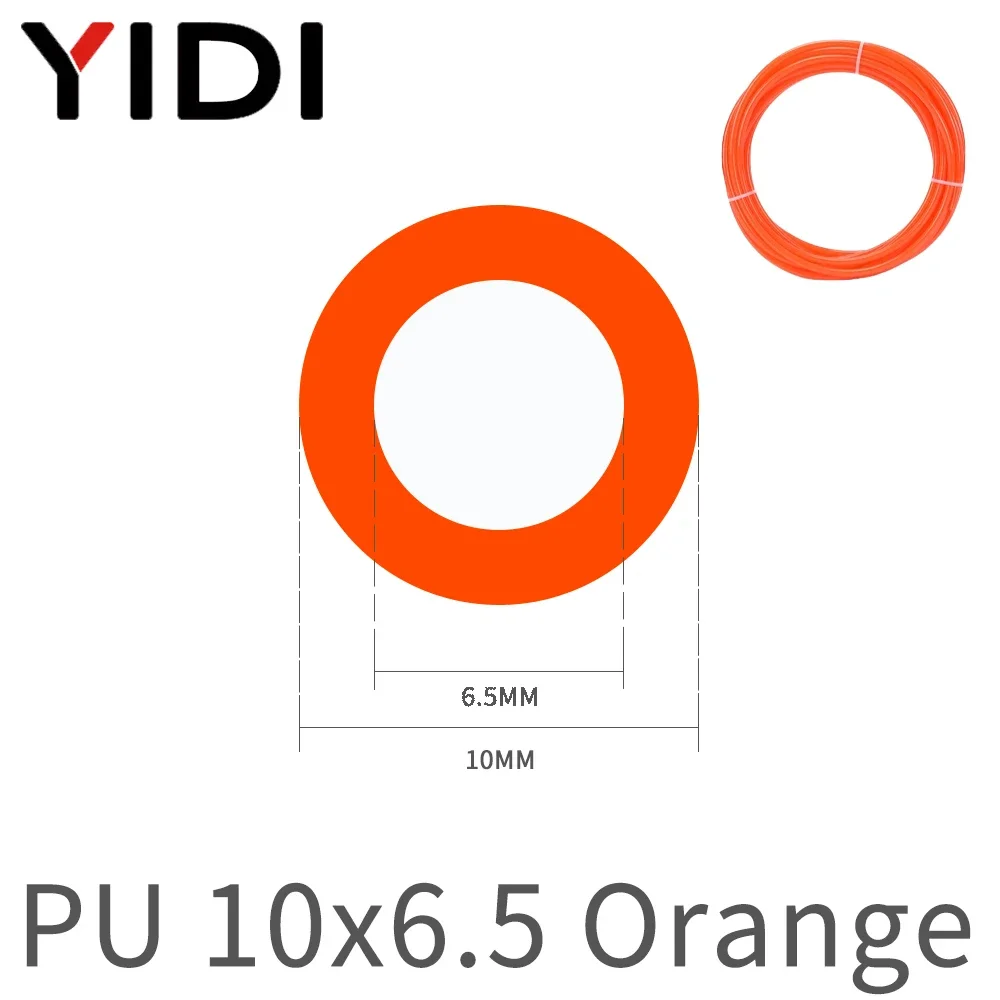

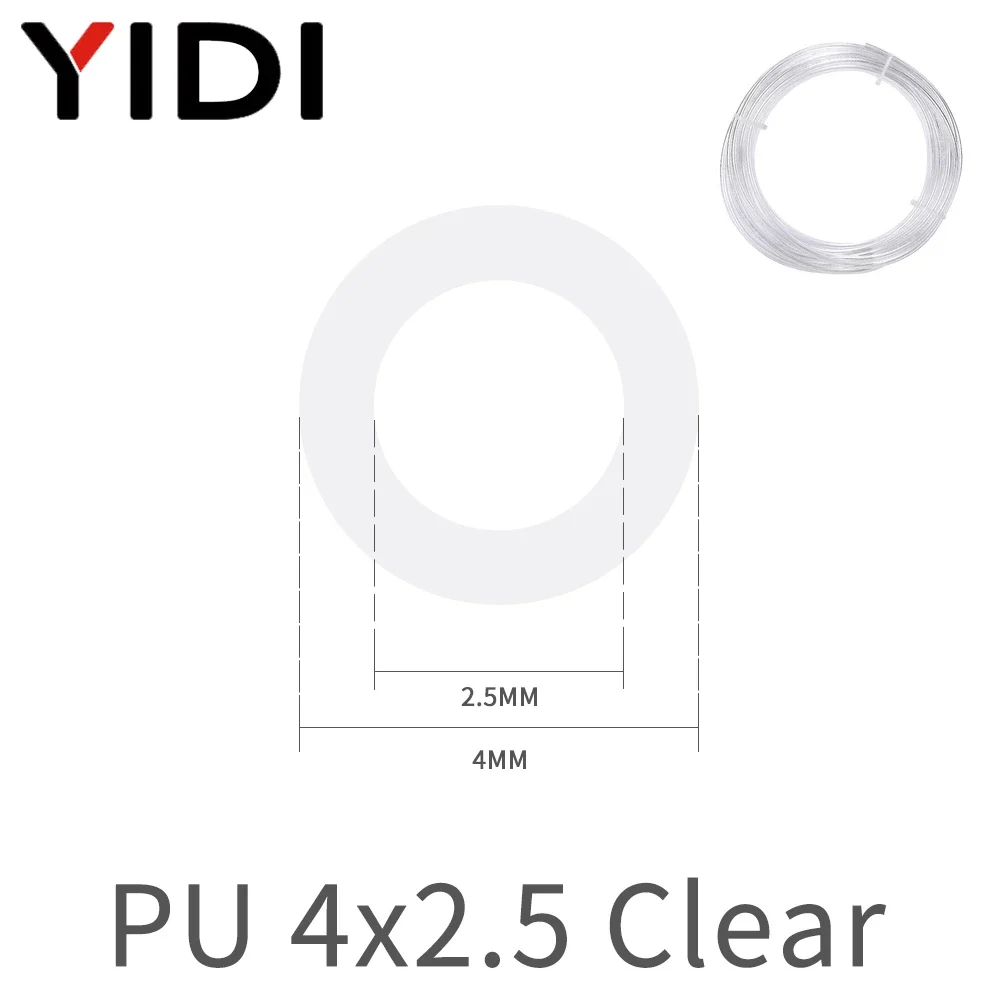

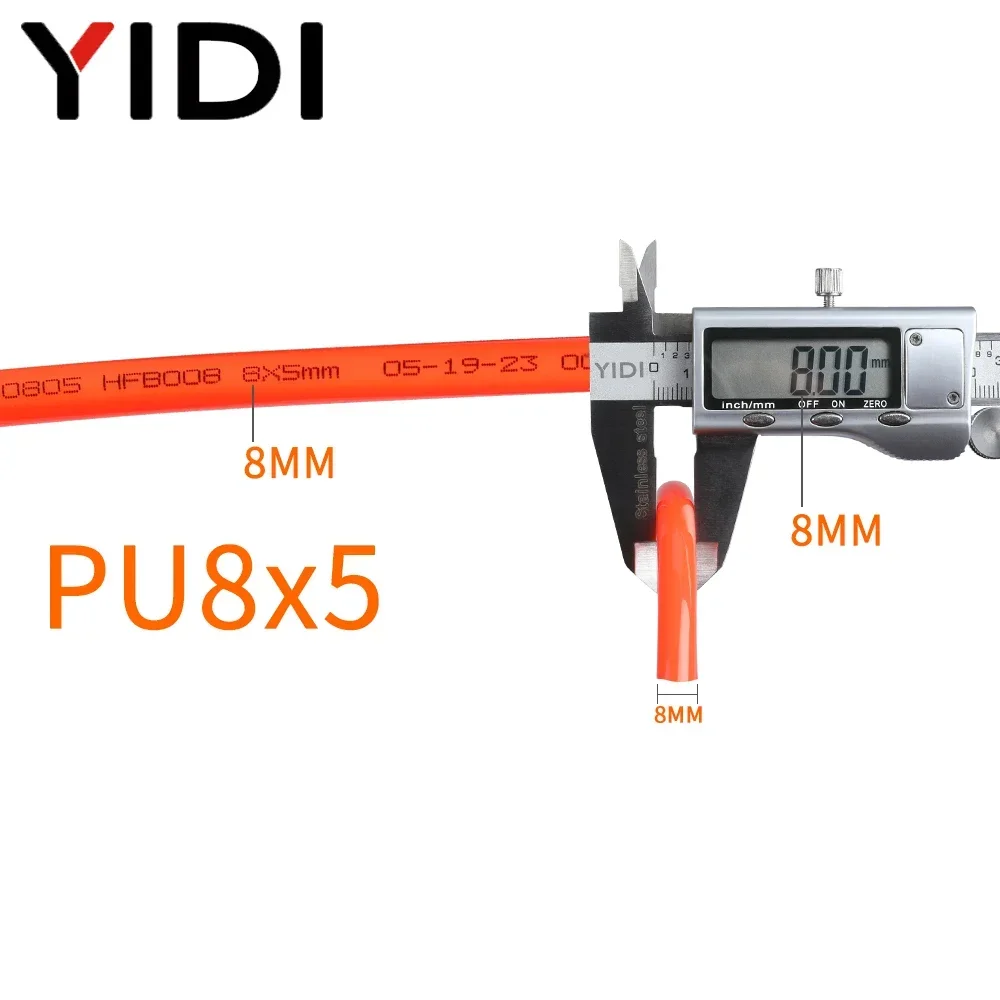

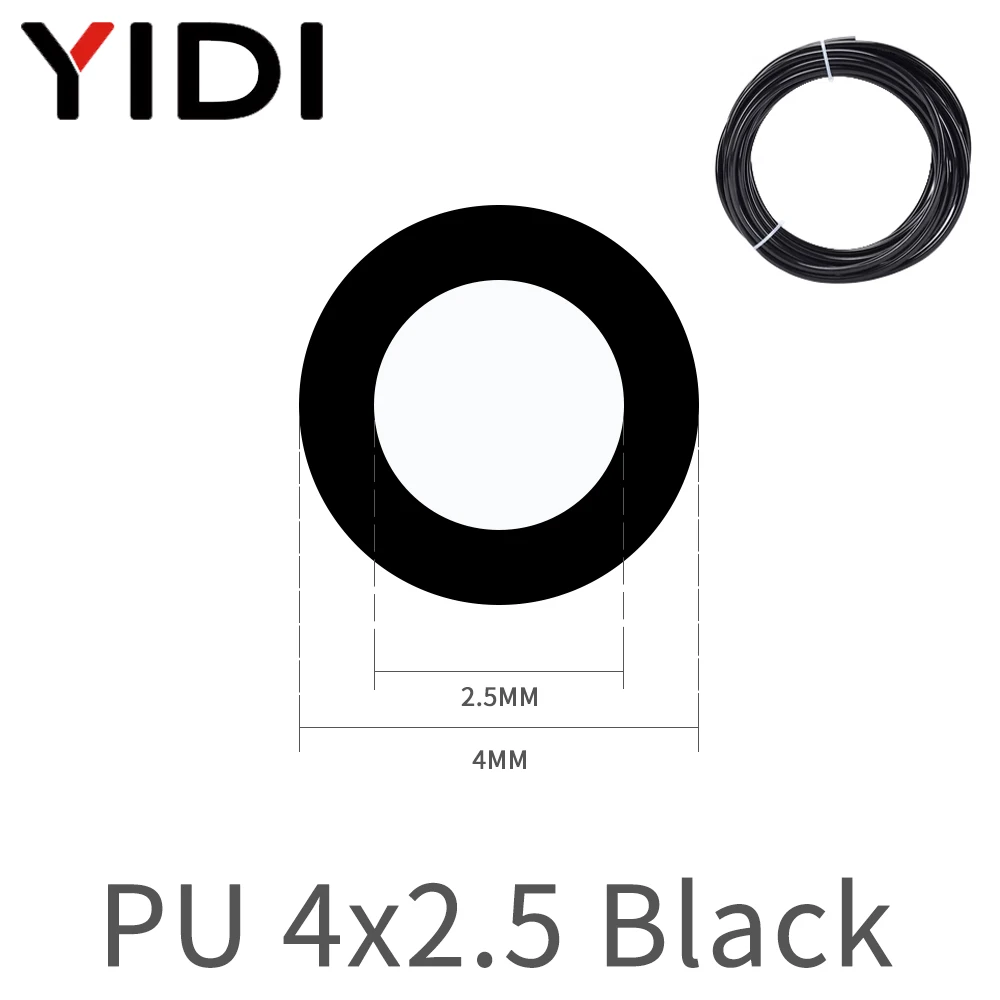

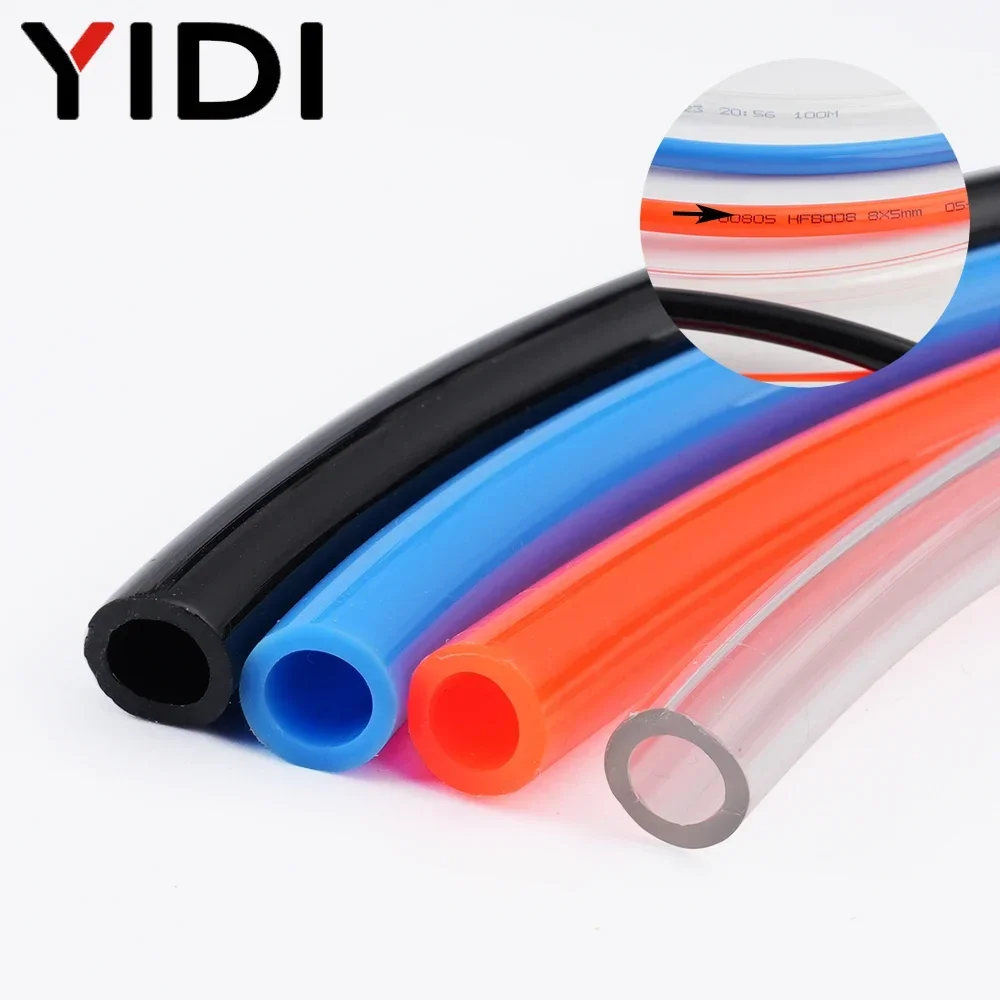

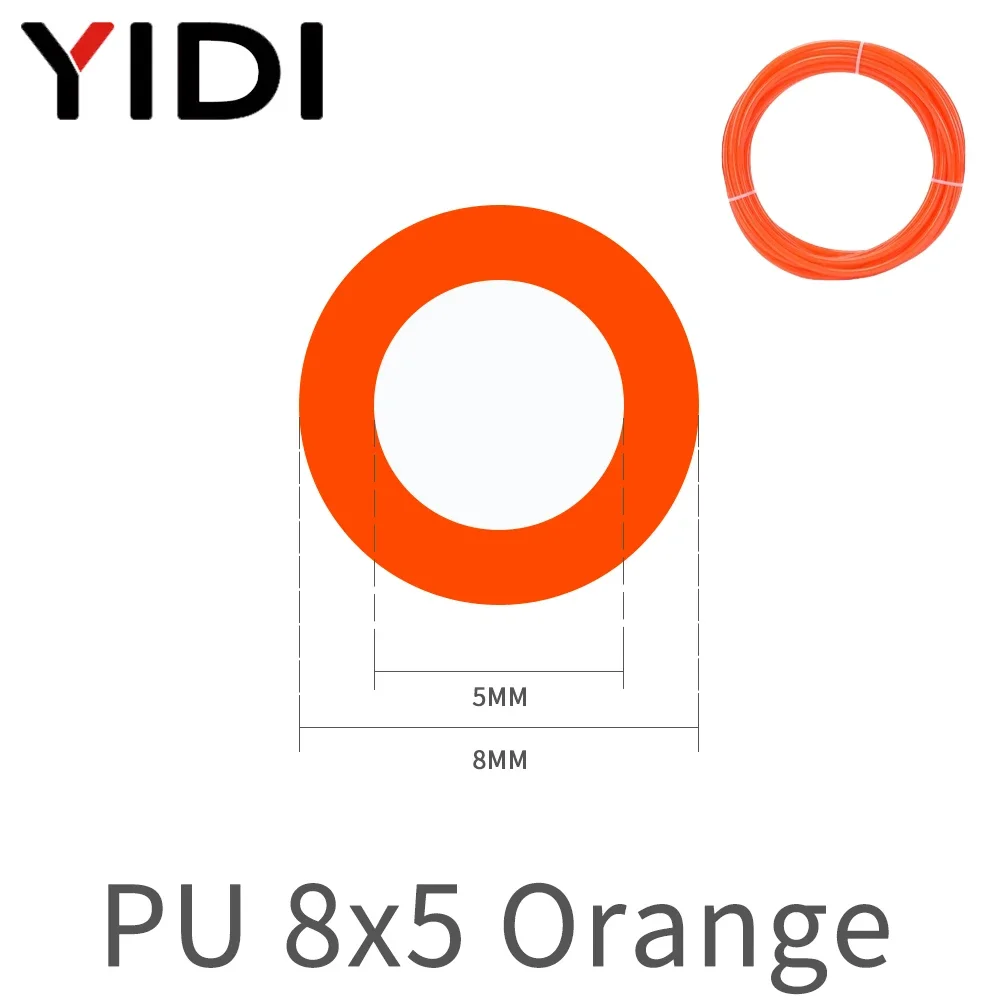

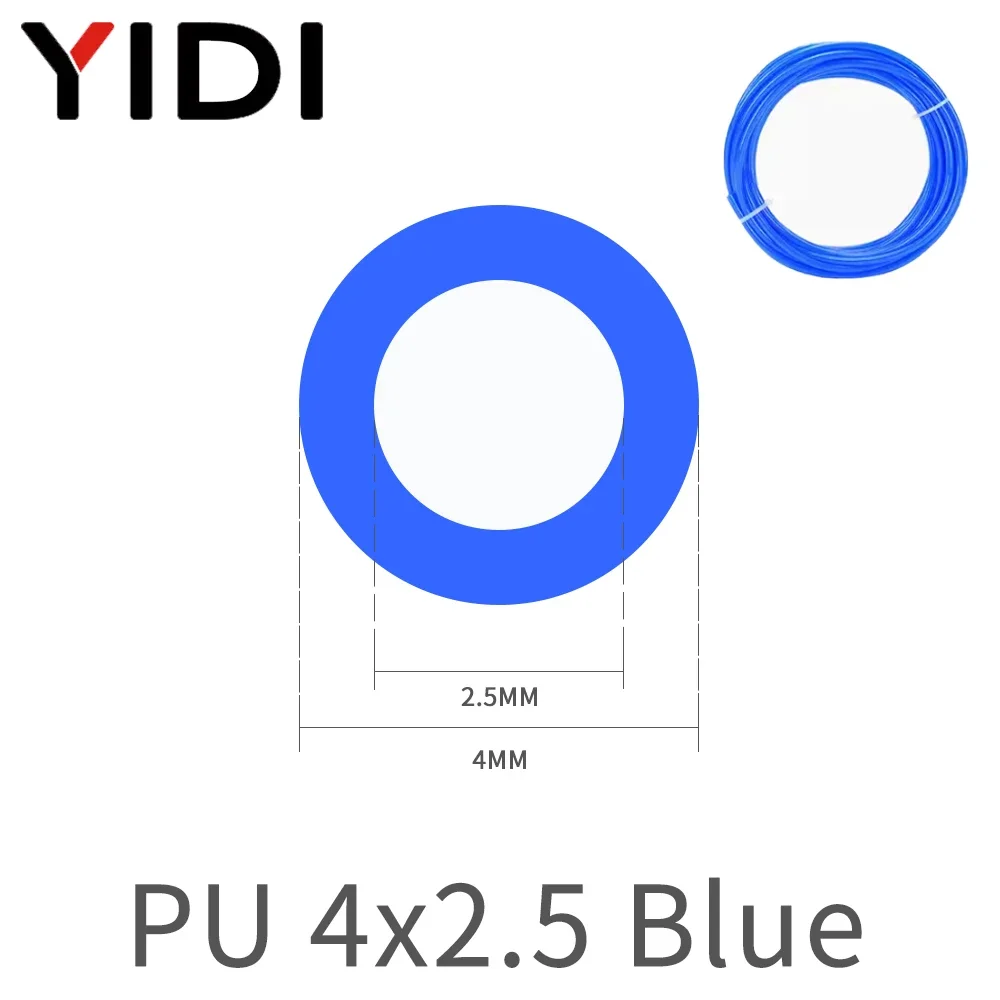

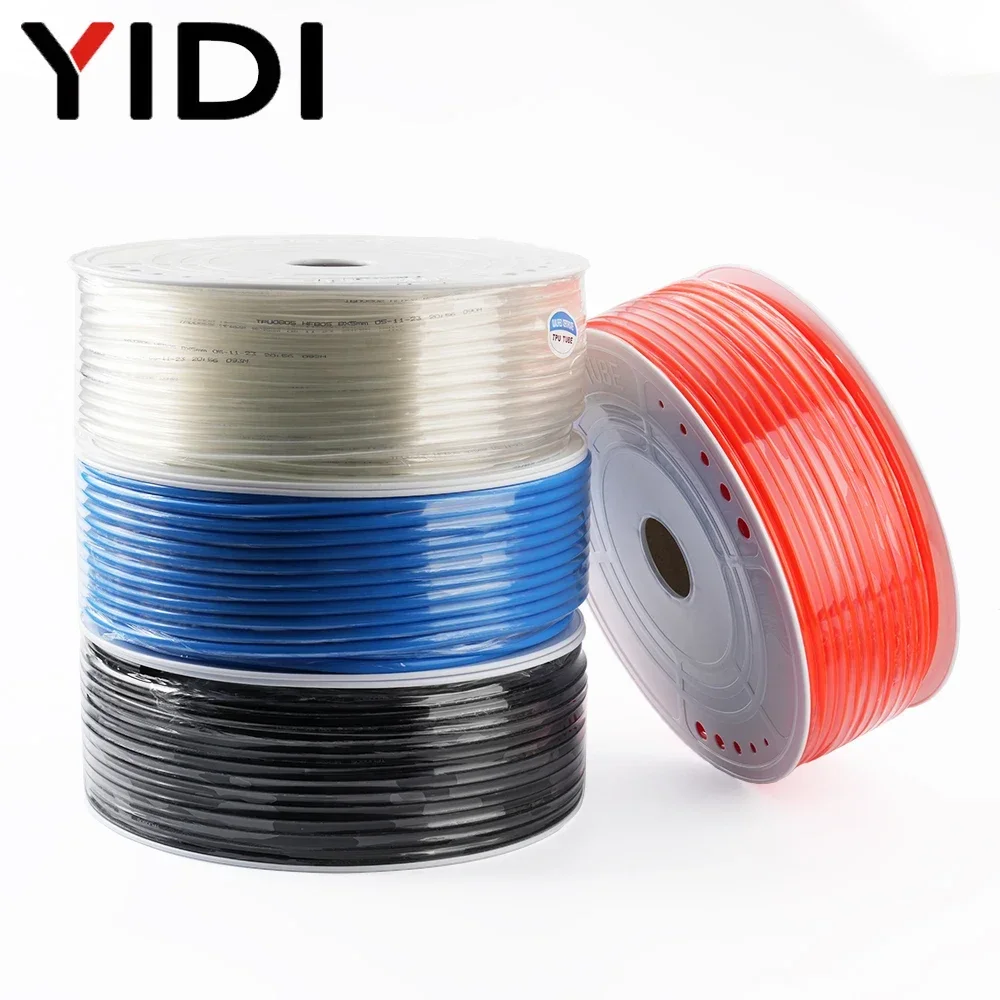

• * In the Choice link, every single hose you obtain is in a position for cargo and has been reduce and packaged in step with the selected specifications (5m/10m/20m) Therefore, purchasing a couple of hose aren't continuous (e 20m * 2pcs ≠ 40m * 1pcs) *If you desire to buy different continuous lengths (e 20m * 2pcs=40m * 1pcs) Please click on this photograph to buy within the new link YIDI 5m/10m/20m-Each 1Mpa/10000Hpa Pneumatic Compressed Air Compressor Hose Tube Pipe Line Pu 4mm 6mm 8mm 10mm 12mm 12*8 10*6 8*5 6*4 4*2 mm Specification: Item No: PU Connection Way: One-Touch Quick Connection Type: Hose to Hose Design: Normal Material: Polyurethane Fluid Type: Clean Air, Vacuum, No Toxic Gas Applicable Hose: SolfNylon, Polyurethane Normal Operating Pressure: 0~10kgf/cm² (0~1 / 0~1) Max Pressure: 15 bar(1) Negative Pressure: -750mmhg (10Torr) Ambient And Fluid Temperature: 0~60℃ (140℉) 1MPa=10bar=10·f/cm²=145(b·f/in²)=9=7500mmHg(torr)=1,000kPa=10,000hPa Whole size with reel can buy in other link Size / Length / Reel 0425 / 200M / Yes 0604 / 200M / Yes 0805 / 100M / Yes 1065 / 100M / Yes 1208 / 100M / Yes 1410 / 100M / No 1612 / 100M / No Installation Instructions: Installation Grasp the tubing and slowly push it into the right till it comes to stop The tubing may be locked by way of the spring gasket Remove Push the release button to open the spring gasket so that the tubing can be launched Cautions: 1 Cleaning: Clean the piping before connection to remove debris 2 Tubing Cut: Ensure a perpendicular reduce with out scratches on the tubing's outer diameter 3 Pipe Length: Avoid immoderate bending; select a proper pipe size 4 Connection: After connecting, pull the tubing gently to examine its seal five Release: Push evenly at the launch button flange for proper tubing withdrawal 6 Removal: Avoid rotating the tubing completely during elimination 7 Assembly: Ensure no debris enters when screwing pipes and fittings collectively Safety Instructions: 1 Pressure: Ensure 0 stress within the tubing earlier than removing 2 Spatter Zones: Avoid standard fittings in spatter-producing locations 3 Monitor Conditions: Stay within specified strain and temperature levels 4 Environment: Avoid corrosive gases, chemicals, and extreme circumstances 5 Placement: Avoid areas with heavy vibrations or shocks 6 Direction: Install tubing within the appropriate one-way path

•
•
•
•
•
